Arena Service Manual
Table 15-2. Treatment Mode Setting Compatibility with Option Required
Settings
Treatment
Mode
HDF Option
Required
Setting
OLHDF Option
Required
Setting
DPSND Option
Required
Setting
SPSND Option
Required
Setting
Standard No No No No or Yes
Batch HDF Yes No No No
OLHDF No Yes No No
DPSND No No Yes No
SPSND No No No Yes

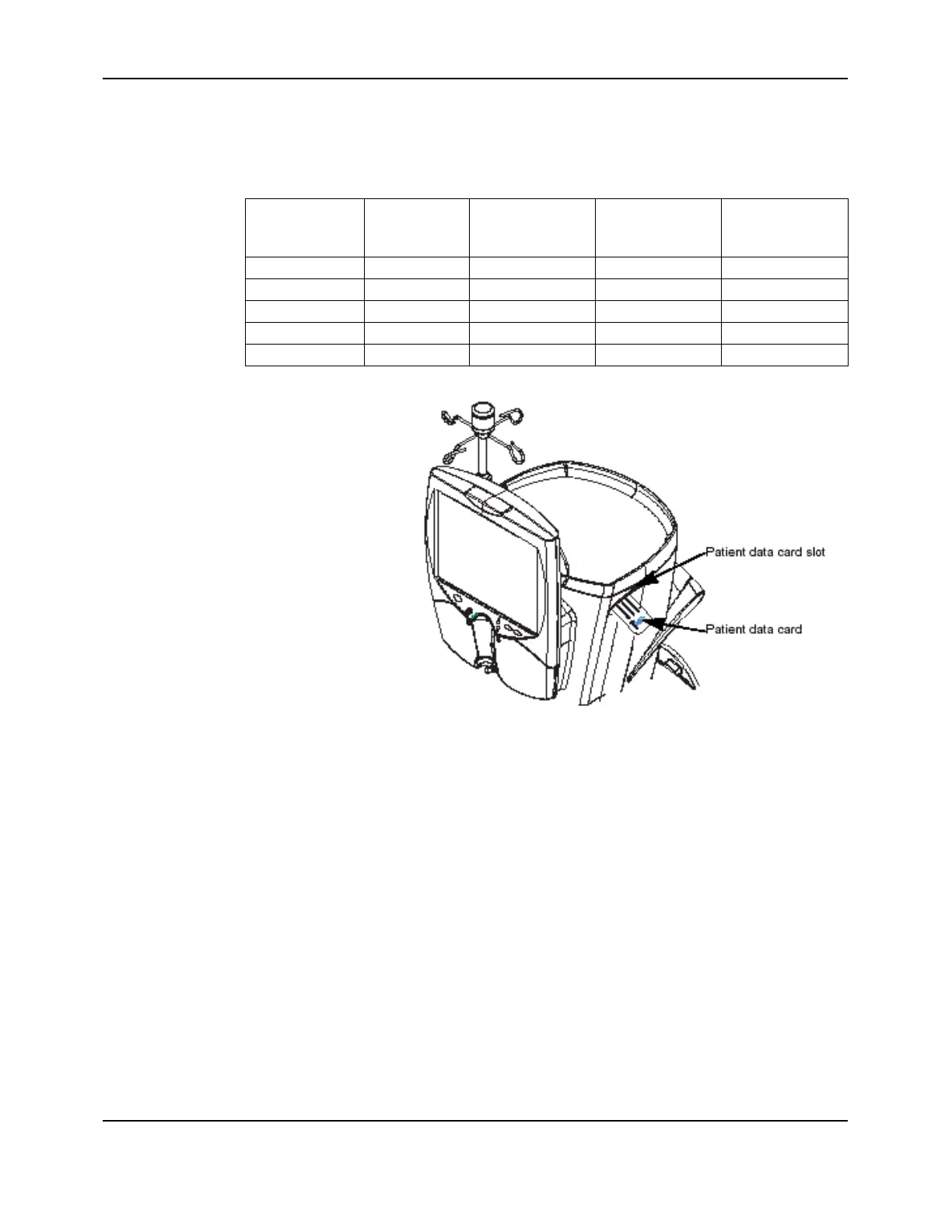

Figure 15-2. PDC Reader Location
15.2.2 PDC Reader
This is the device in the Arena Instrument into which the PDC is
inserted and the information is read. The PDC Reader provides a
convenient means for initializing the Instrument settings for a
particular patient or general therapy. It consists of the actual PDC
Reader and the related circuitry on the PIB (Peripheral Interface
Board), as shown in the block diagram in Figure 15-1. Their
purpose is to automatically read, verify, and load the patient
information stored in the PDC (refer to “Load Patient Prescription
using the PDC” in the Operator’s Manual). The PDC Reader is
operational only in the Prime Mode.
The +5 VDC power to the PDC and PDC Reader is provided by
the PIB and is protected by Fuse # 2 (see Section 5, Electronic
Theory).
15-8 157-1278-922 Rev A
January 2004
