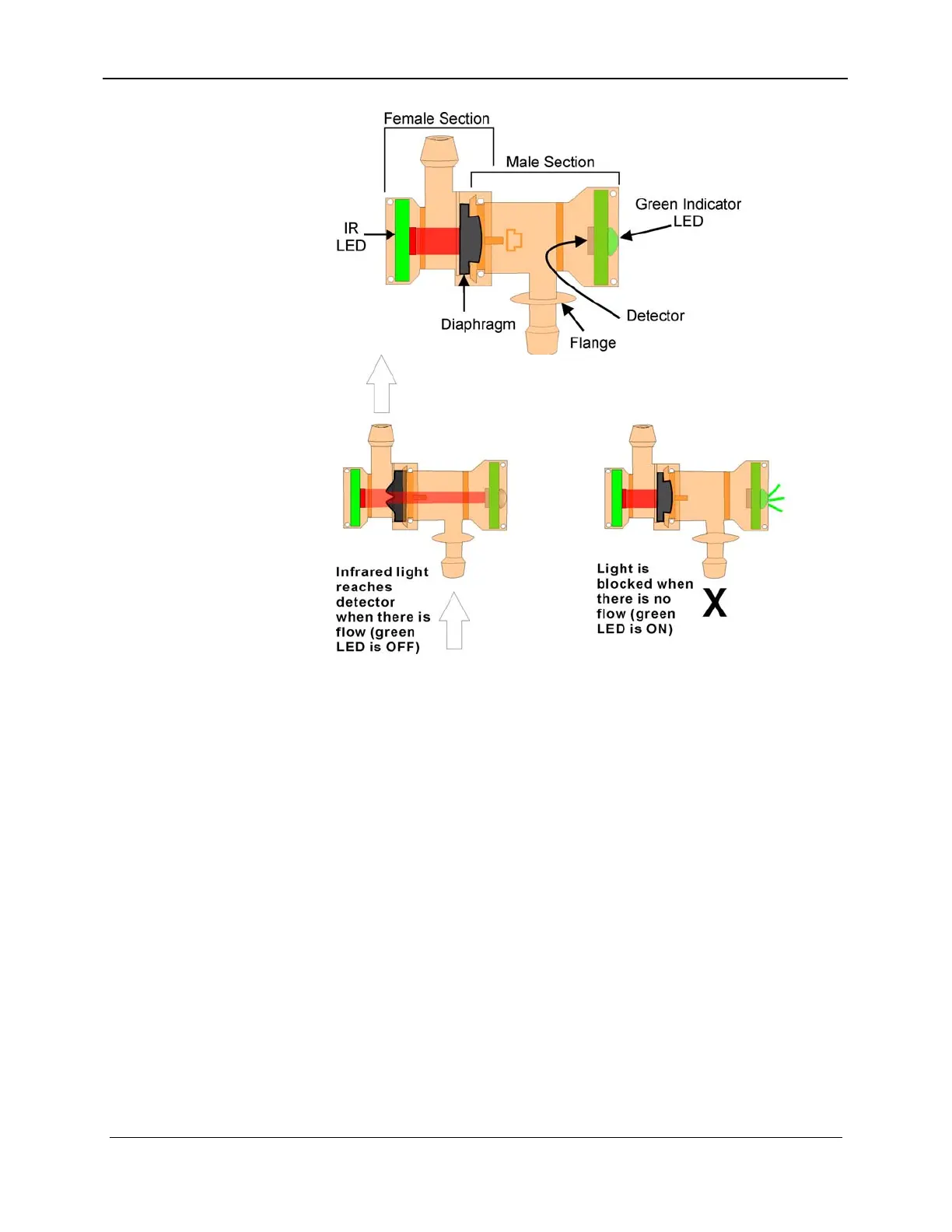

Figure 4-10. Optical/Diaphragm Sensors for EOS
4.2.13 Dialysate Monitoring Manifold
The purpose of this assembly is to house the components to
monitor the dialysate temperature, conductivity and pressure. This
manifold contains:
 The dialysate (primary) conductivity probe/thermistor set
 The dialysate pressure transducer
 The bypass valve flow sensor
