AAMI Standard
Water
Approved
Backflow
Preventer
as Required by
Local Code
Water
Pressure
Regulator
Adjust to 15 PSI
During Flow
Adjust to 15 PSI
During Flow
Adjust to 16 PSIAdjust to 16 PSI
2 t o 3 P S I
filling,
16 PSI
@EOS
2 t o 3 P S I
filling,
16 PSI
@EOS
Variable Positive PSI
Not Adjustable
Variable Positive PSI
Not Adjustable
Dialysate
Pressure
Starts Here
Dialysate
Pressure
Starts Here
Adjust
to
200 to
300
mmHg
Adjust
to
200 to
300
mmHg
Heater
Drain Line
461.58 mL/min461.58 mL/min
461.58 mL/min461.58 mL/min
Drain
Air Gap
Water Temp Control
Thermistor
24.84 mL/min
2
.8
L4 4
m /
m
in
13.58 mL/min
13.58 mL/min
1500 mL/min1500 mL/min
(Adjust vacuum by RPM)(Adjust vacuum by RPM)
Speed Varies
with Flow
Variable
mL/min
(Runs higher than
500mL/min)
Variable
mL/min
(Runs higher than
500mL/min)
74m
Filter
74m
Filter
“A”
Concentrate
Pump
“A”
Concentrate
Regulator
(Optional)
“B”
Concentrate
Regulator
(Optional)
Air Gap
Chamber
Mixer
“A” Conductivity
Thermistor/Probe Set
Air
Removal
Pump
Hall-effect
Level
Sensor
(open/close
the water valve)
Air
Trap
Drain
Vent
to
Atmosphere
“B” Conductivity
Probe/Thermistor Set
Dialysate Conductivity
Probe/Thermistor Set
Flow Sensor
Water
On /Off
Valve
Heat
Exchanger
Heat
Clean
Recirculation
Valve
“B”
“A”
“B” Mix
Chamber
Rinse Ports
With
Proximity
Sensors
Disinfect
Loop
Supply
Pump
(lower
middle)
150m
Particle
Filter
Flow
Equalizer
(valves will switch
every 13.68 seconds)
Bracket
Blood
Leak
Detector
2
1
End-of-Stroke
Sensors
True
Check Valve
ArterialArterial
VenousVenous
Dialysate
Pressure
Pump
(left side)
UF Removal
Regulator
UF Flow
Meter
UF Drain Line
Connector
Dialyzer
150m
Particle
Filter
Output
Pressure
Equalizer
Bypass Valve (cycled during disinfect)
Dialysate
Pressure
Transducer
Flow
Restriction
Flow
Restriction
Drain
Supply Regulator
X’s flow
Dialysate Monitoring Manifold
(Also called “Final Manifold”,
“Dialysate Manifold” or “Primary
Manifold”)
C1C1
C2C2C3C3
C4C4
5
3
1144
8
2
77
66
33
11
44
22
{
1.5
mL
when
full
1.5
mL
when
full
114
mL
when
full
114
mL
when
full
“B”
Concentrate
Pump
-500
mmHg
-500
mmHg
Supply
Manifold
NOTES:
All 4 flow path thermistors values are:
o
25 C = approx. 5000 ohms
o
37 C = approx. 3000 ohms
X
X
X X
500 mL/min500 mL/min
510 mL/min510 mL/min
510 mL/min510 mL/min
500 mL/min500 mL/min
X
500 mL/min500 mL/min
500 mL/min500 mL/min
Magnet
711
100 step
1/3 mL/stroke
100 step
1/3 mL/stroke
114
mL
when
full
114
mL
when
full
Input
Pressure
Equalizer
Connector
Safety
Thermistor
Connector
Air Removal
Sprayer

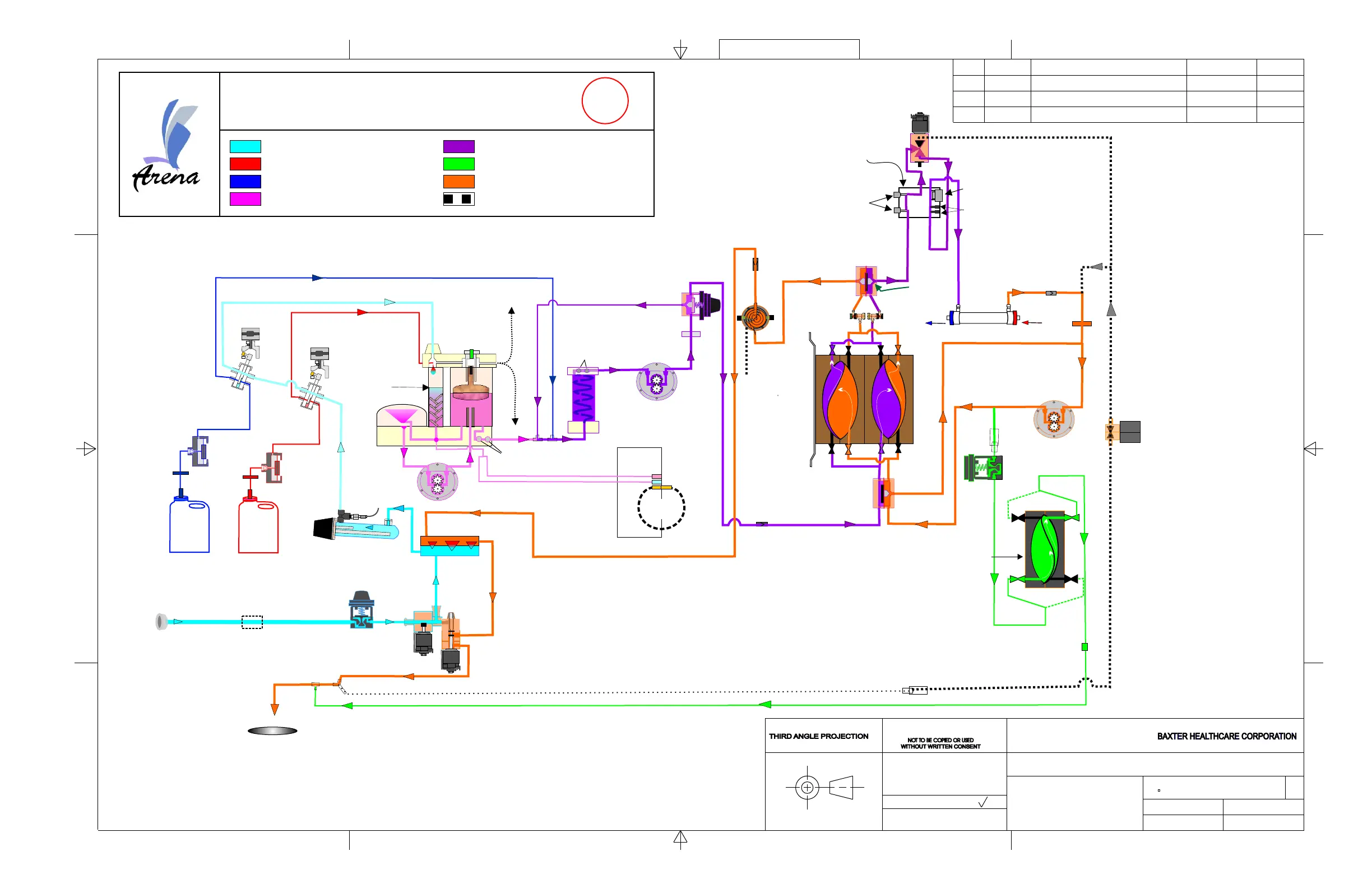

Arena Standard Hydraulics Flow Diagram
157-1278-587
A
None
L. Pittman
1-8-04
1 1
36.83X
Numeric values shown are using Drake Style
Concentrate @ 500 mL/min Dialysate Flow
Dialyze Mode
Light Blue: Water Purple: Fresh Dialysate
Red: A Concentrate Green: Ultrafiltrate
Dark Blue: B Concentrate
Orange: Spent Dialysate
Pink: Water & Acid
Black Dots: No Flow this Mode
Rinse Valve
(Dialysate Pressure Relief
Valve)
