Arena Service Manual

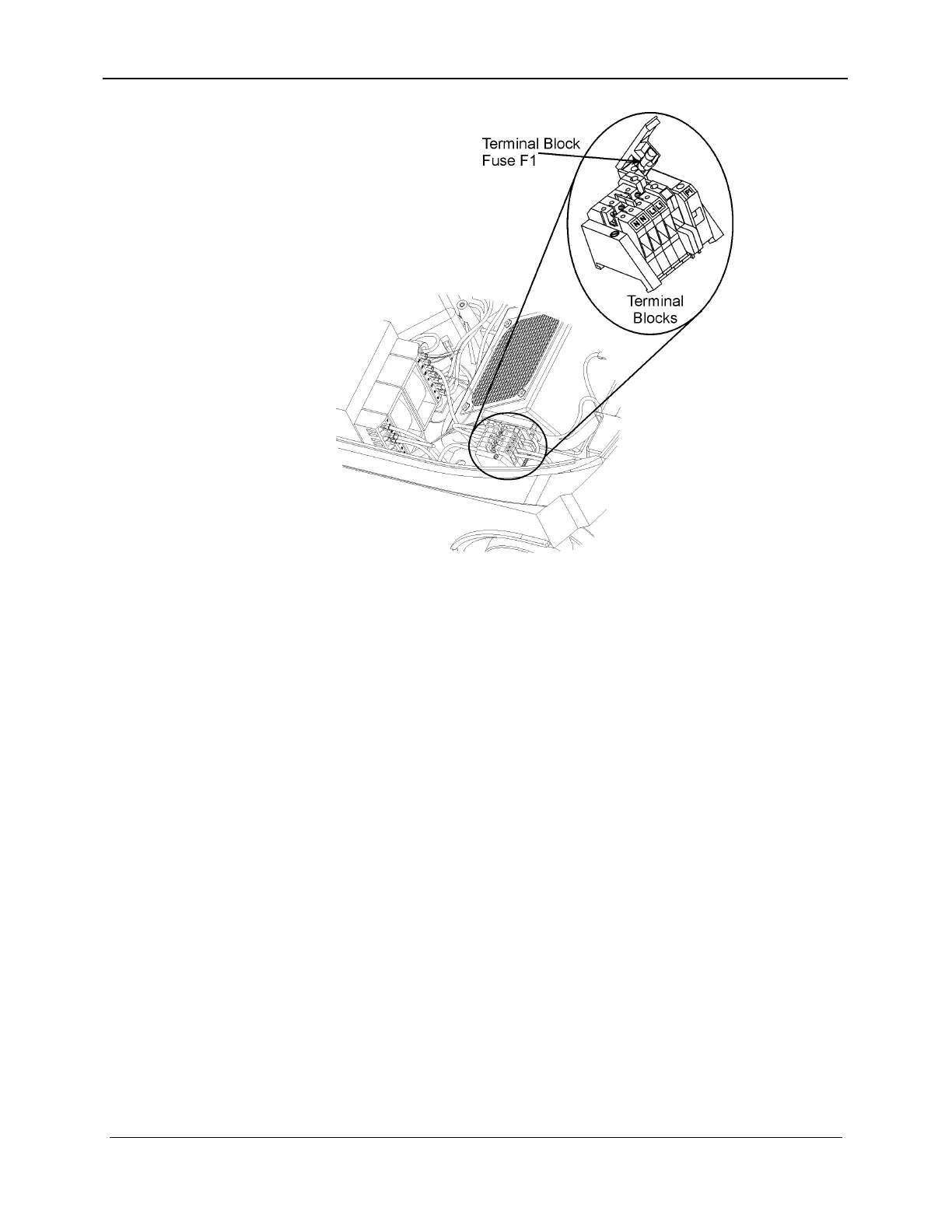

Figure 5-4. Terminal Block and Fuse F1
• Terminal Block Fuse F1. This fuse is located in the
Terminal Block. It is a 2 A, 250 VAC replaceable fuse that
protects the transformer from a short-circuit in the output
120 VAC line. This line goes from the transformer
(connector #12) to the Switching Power Supply, and the
Venous Line Clamp Driver Board.
5-8 157-1278-912 Rev A
November 2003
