This board is physically identical to the UF-Proportioning
Controller board. There is a different EEPROM for the Double
Pump version of the board. The board has a jumper, shown in
Figure 5-16, which must be properly placed according to the next
Table 5-3, depending on the functions that the board will perform.
Table 5-3. BP/UF Jumper Position
Function Jumper Position EEPROM
Single Blood Pump
Controller
BP/UF GC7120S
Double Blood Pump
Controller
DP/BP GC7130S
UF-Proportioning Controller BP/UF GC7120S
SP/BP Controller
Jumper
EEPROM
Slot #5
DP/BP Controller
Jumper

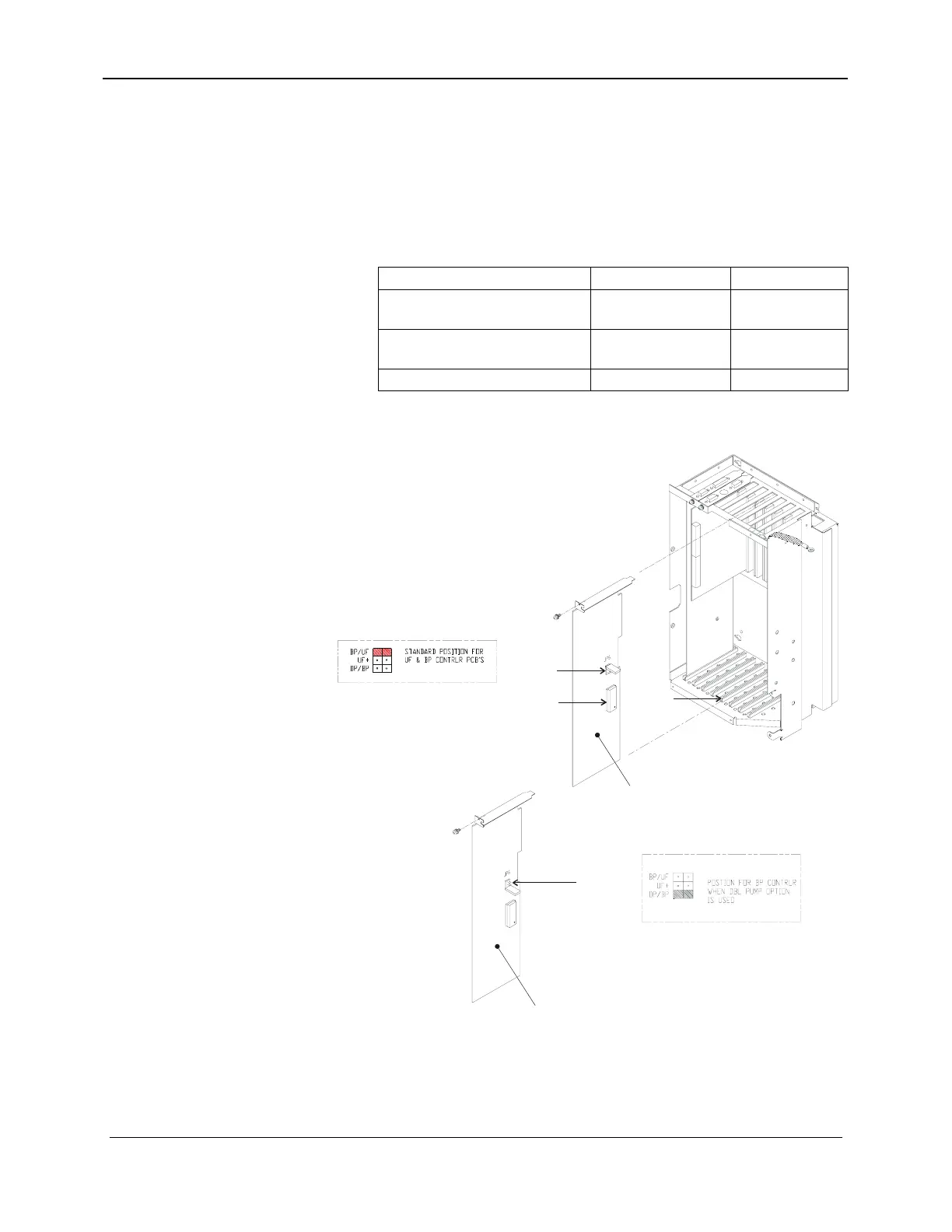

Figure 5-16. Single/Double Pump Controller (a different EEPROM is used
on each board)
