MX08 Multichannel Weighing System, Technical Manual, Rev. 2.5 Page 136 of 144

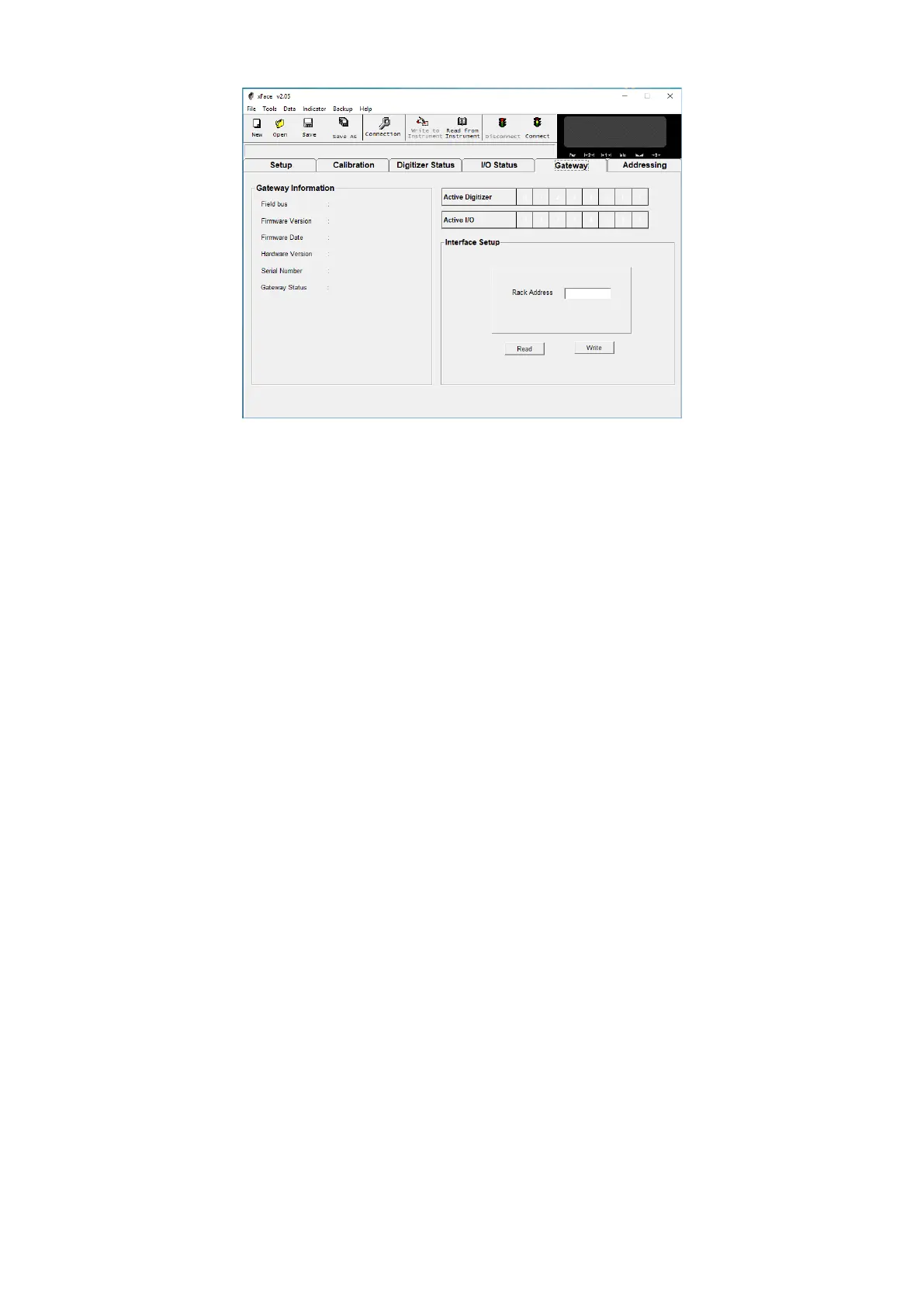

Figure 13.4 - Powerlink setup
14.4.1. Powerlink Information
xFace Gateway information block in Gateway tab allows the user to know much
information about gateway instrument as in the following;
Field bus: Powerlink
Firmware Version: Revision number of firmware
Firmware Date: Generated firmware date
Hardware Version: Revision number of main pcb board.
Serial Number: Instrument’s serial number.
Gateway Status: Follow the status whether the system is proper or not.
XDD Configuration: Max. quantity of MX08 AD and MX08 IO instruments in the system.
