MX08 Multichannel Weighing System, Technical Manual, Rev. 2.5 Page 23 of 144
4.4. Gateway Setup
Gateways have an interface parameters depend on their interfacing structure and this
parameters shall be programmed before MX08 field bus connection. Gateway
programming is done in the Gateway tab. Details on the Gateway parameters and their
descriptions can be found in the related gateway section.
Gateway Information: This block indicates the field bus type, hardware and software
versions of Gateway instrument.
Active Digitizer: This block indicates the active Analog Digitizers and their N-Bus
address in the system. For more information refer to Section 4.
Active I/O: This block indicates the active Input / Output instruments and their N-Bus
address in the system. For more information refer to Section 6.
Field bus Setup: This block allows the user to set up field
bus parameters. Each
Gateway has own parameters related to field bus type.

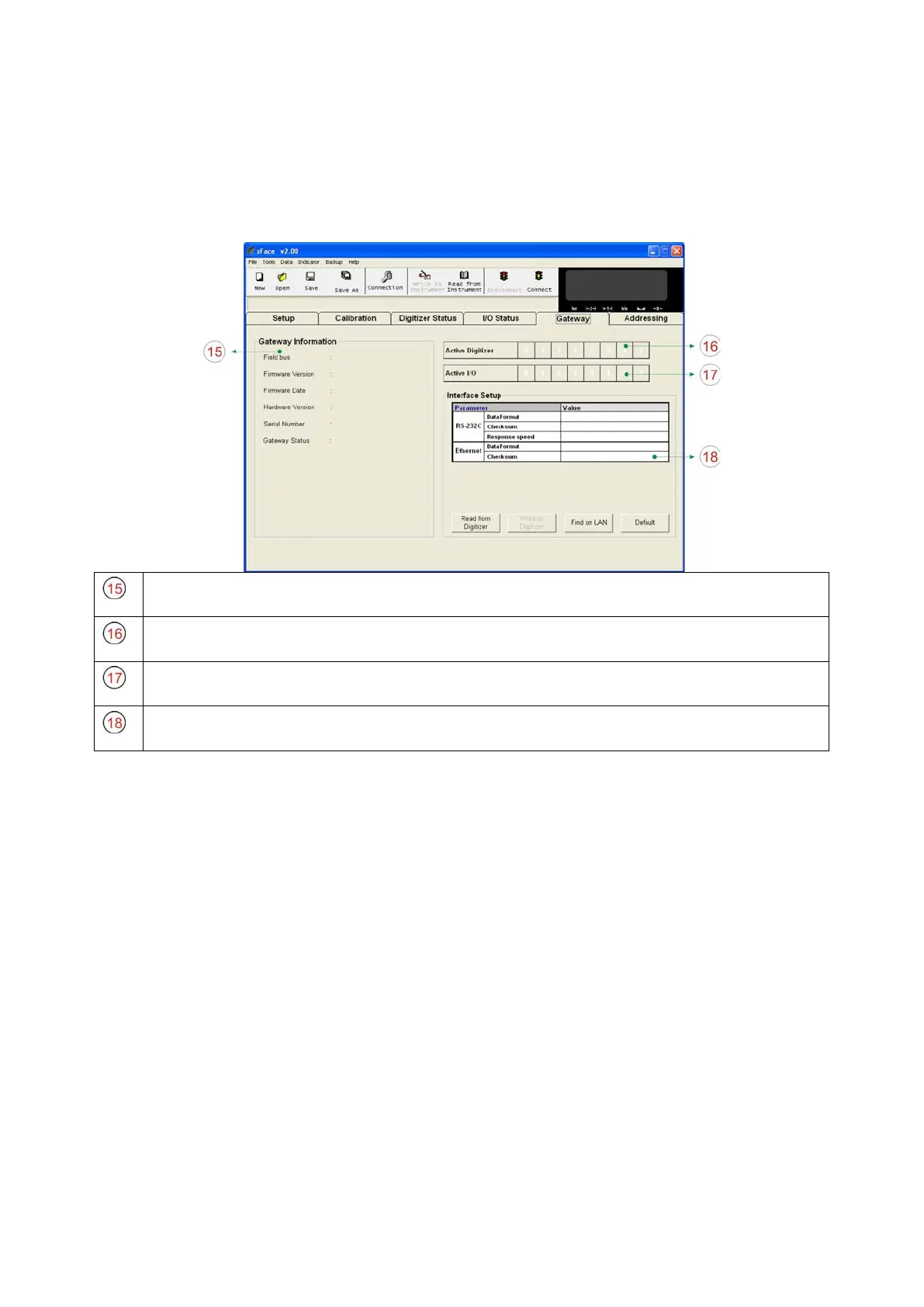

Figure 3.8 - xFace Gateway tab
4.5. GSD/GSDML/EDS/ESI/XDD Configuration
By default, Profibus, Profinet, EtherNet/IP, EtherCAT and Powerlink data structures of
MX08 includes 8 pcs MX08 AD and 8 pcs MX08 IO. This is full configuration.
