MX08 Multichannel Weighing System, Technical Manual, Rev. 2.5 Page 48 of 144
7. MX08 IO 4-INPUT / 4-OUTPUT
MX08 IO instrument has 4 opto-isolated digital inputs and 4 digital relay outputs. All over
the I/O control is done over field bus communication or xFace connection. Refer to data
structures of related gateway section for input output commands. For example, if Profibus
is used for gateway communication, all input and output conditions are changed over
Profibus commands.
7.1. Front View
There are 3 annunciater LEDs on front panel to show the instrument status in operation.
The programming switch on front panel of the instrument is used for N-Bus addressing
without PC (Refer to Section 3.9).
The status of the instrument is announced by different lights (refer to Table 6.1).
When error LED lightened, other two LED announces the error type. Please refer to
Section 6.4 for detailed error descriptions.

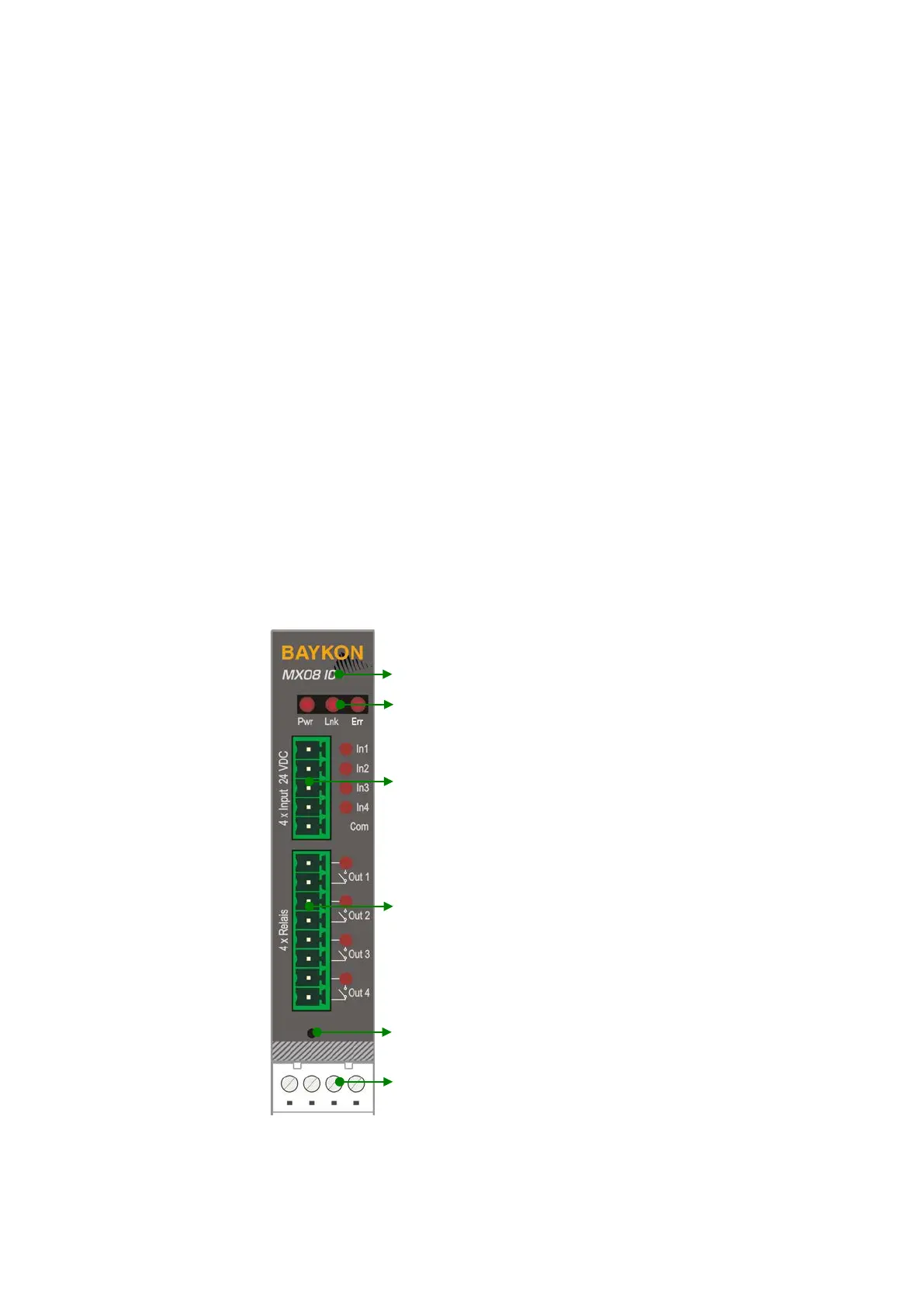

Power and I/O terminals are located at the front of the DIN rail mount instrument as seen
in Figure 6.1.
Figure 6.1 - Front panel view
