6. MX08 DP DISPLAY
MX08 DP instrument is display unit for Analog Digitizers. One of Analog Digitizer’s
weight/force or count data and stable, zero, net information are displayed. Also installed
Analog Digitizers on the N-Bus are indicated with N-Bus address information.
Two keys are used for selecting Analog Digitizer to display weight or count data.
6.1. Front View
Weight / Force or Count Data
Pwr, Stable, Zero, Net indication
Analog Digitizer Selector keys

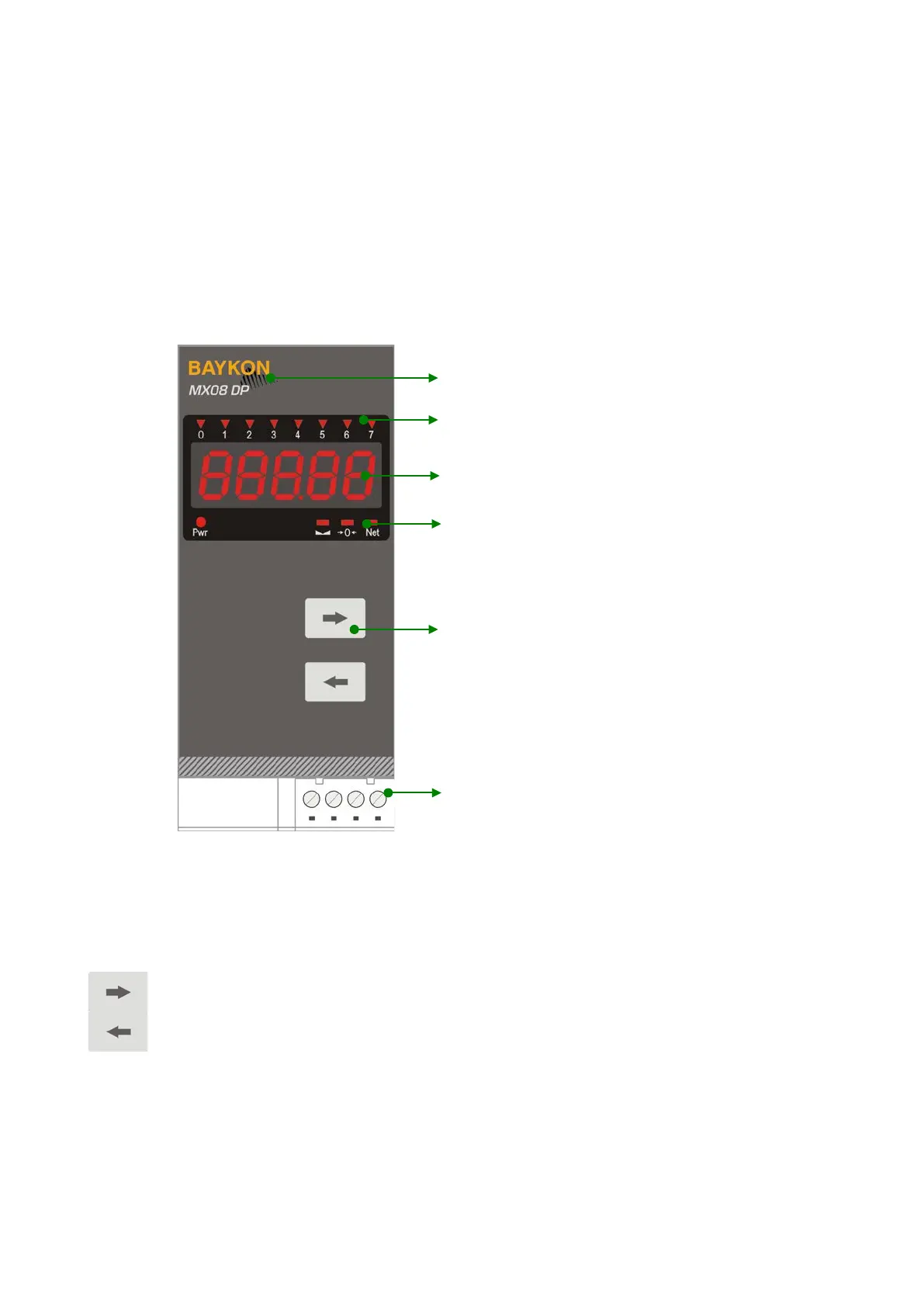

Figure 5.1 - Front panel view
Arrow keys: Selects the Analog Digitizer which is indicated with blanked LED.
