24V 0V

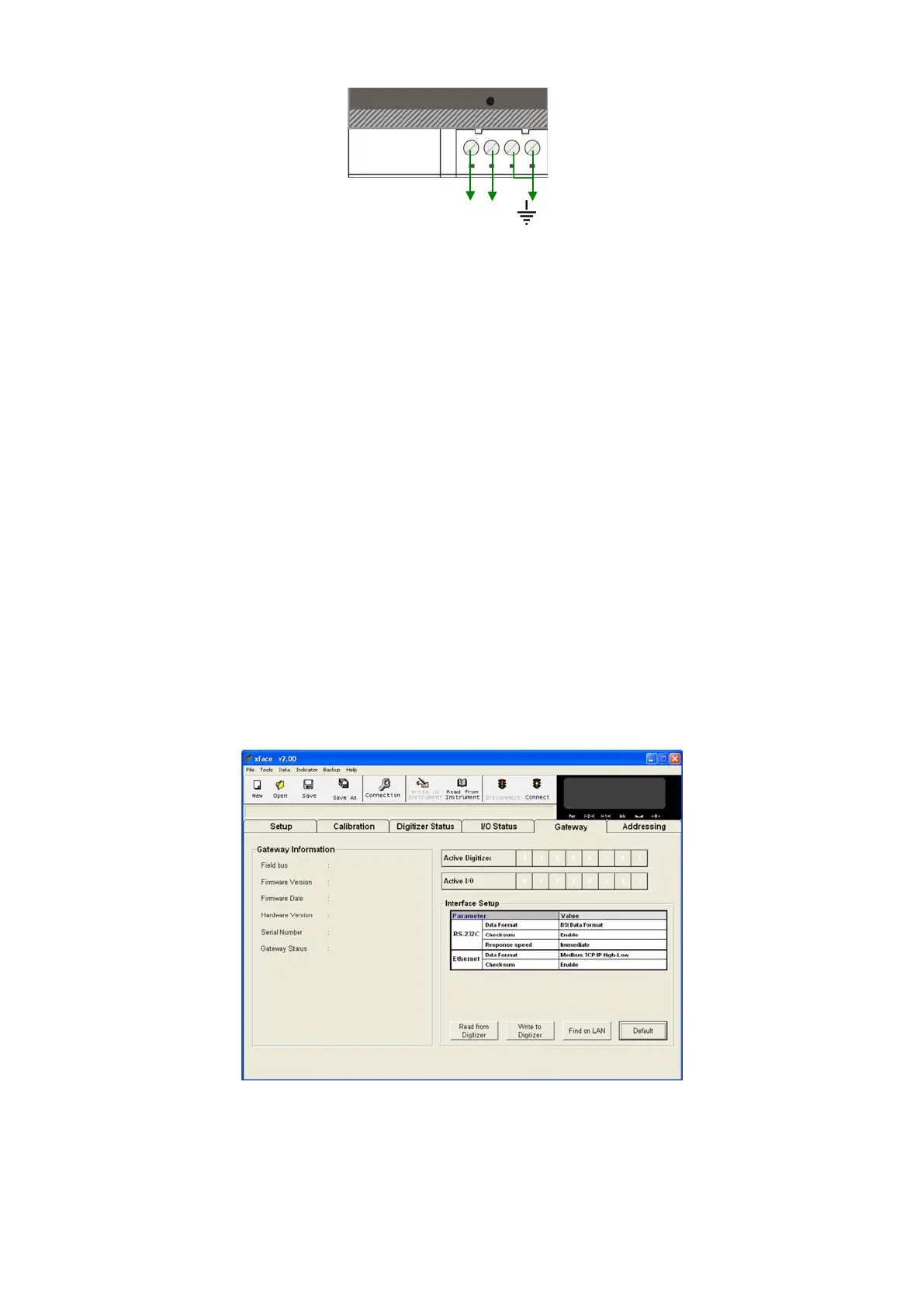

Figure 10.5 - Pin layout of MX08 EN 24 VDC connector
11.3. N-Bus Addressing
MX08 instruments communicate each other over internal data bus which is called N-Bus.
MX08 gateway instrument is master of N-Bus. All other instruments are slave and shall be
addressed to gateway.
N-Bus addressing can be done by using xFace PC software (Refer to Section 3.3) or via
programming switch (Section 3.9).
11.4. MX08 EN Setup
MX08 gateway set up is done by xFace software as described in this section. Connect
MX08 EN instrument to your PC via RS-232C service port on the instrument as indicated
in Figure 10.1.
Select Gateway tab after connecting xFace to MX08 EN. Gateway tab is seen in figure
below. You will see the gateway information and Ethernet parameters in this tab.
Figure 10.6 - Ethernet Setup
