MX08 Multichannel Weighing System, Technical Manual, Rev. 2.5 Page 34 of 144
5. MX08 AD ANALOG DIGITIZER
MX08 AD instrument is state-of-the-art strain gage load cell signal digitizer for weighing
and force measurement. These instruments are used for any type of weighing processes
and force measurement including tank and silo weighing, dynamic weighing, check
weighing, filling, tension /compression force measurement etc.
5.1. Front View
There are 3 annunciater LEDs on front panel to show the instrument status in operation.
The programming switch on front panel of the instrument is used for N-Bus addressing
without PC (Refer to Section 3.9) and for diagnostic tests (refer to Section 4.6).
The operation mode of the instrument is announced by different lights at stable condition
(refer to Table 4.1) and there is no zero indication in count mode operation.
When error LED lightened, other two LED announces the error type. Please refer to
Section 4.5 for detailed error descriptions.
Load cell and power terminals are located at the front of the DIN rail mount instrument as
seen in Figure 4.1.
RS-232C and RS-485 Terminal

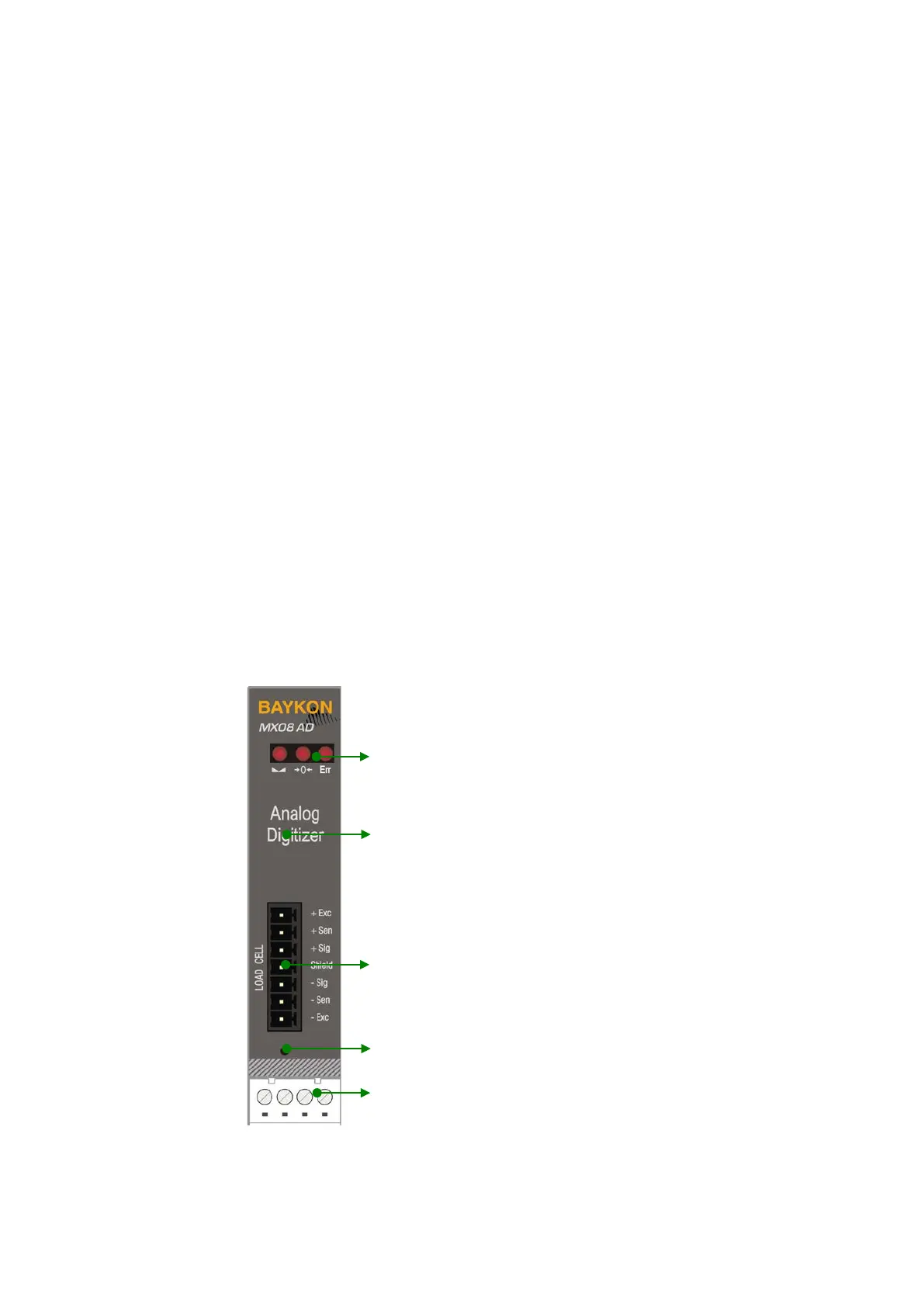

Figure 4.1 - Front view
