MX08 Multichannel Weighing System, Technical Manual, Rev. 2.5 Page 92 of 144
11. MX08 EN ETHERNET GATEWAY
MX08 EN gateway instrument integrates up to 8 pcs Analog Digitizer device and up to 8
pcs Input / Output device to Ethernet field bus. MX08 EN instrument communicates with
other MX08 instruments via internal data bus N-Bus and responses to the PLC very fast
via Ethernet.
11.1. Front View
There are 3 annunciater LEDs on front panel to show the instrument status in operation.
The programming switch on front panel of the instrument is used for N-Bus addressing
without PC (refer to Section 3.9) and for diagnostic tests (refer to Section 10.7).
The status of the instrument is announced by different lights (refer to Table 10.1).
When error LED lightened, other two LED announces the error type. Please refer to
Section 10.6 for detailed error descriptions.
Power and serial interface terminals are located at the front of the DIN rail mount
instrument as seen in Figure 10.1.

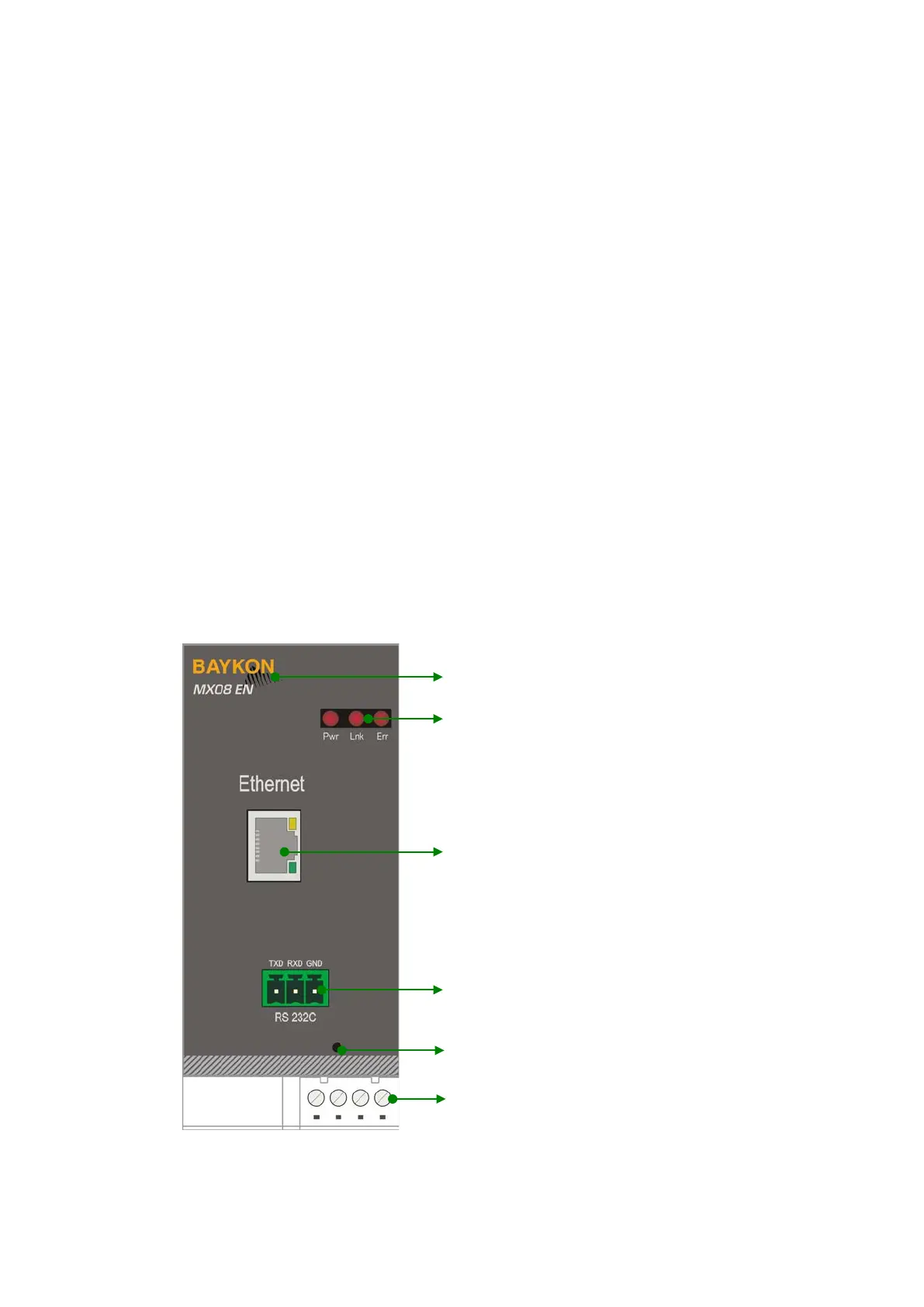

Figure 10.1 - Front View
