The meanings of the LEDs in operation are given below.
Symbol Name Description
Active
MX08 AD
Analog Digitizer is not installed on N-Bus
Analog Digitizer is active
Current displayed Analog Digitizer.
Stable
Unstable ( Dynamic )
Stable
Zero
Out of centre of zero
At centre of zero ( -0.25 e < w < 0.25 e )
Net Net
Gross weight
Net weight
Pwr Power / Digit
Displayed data is overflowed to 6th or 7th digit.
Power indication
Blank Light Flash Blank for 0.3 second

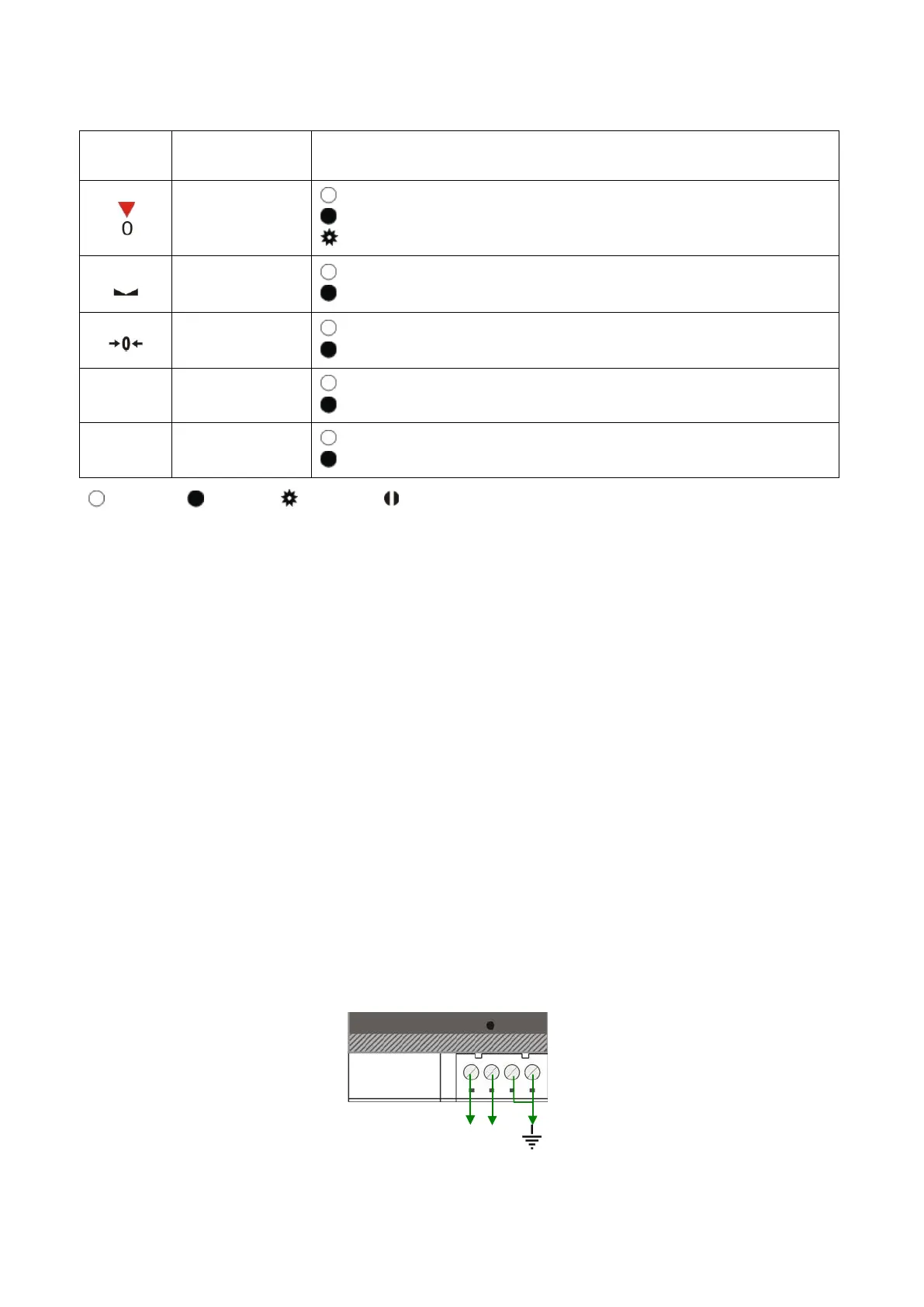

Table 5.1 - Annunciator LEDs
In weight/force mode, data is displayed on the display. If weight/force data is overflowed to
the 6th digit, most significant digit does not display and Pwr LED blanks.
For example: If the weight data is 123 010, Pwr LED blanks and 23010 is displayed.
In count mode, data is displayed on the display without least significant digit. If count data
is overflowed to the 7th digit, most significant digit does not display and Pwr LED blanks.
For example: If the count data is 1 450 000, Pwr LED blanks and 45000 is displayed.
6.2. Electrical Connection
Power Supply Connection:
The pin configuration of the 24 VDC power supply connector located on front bottom of the
instrument is shown in Figure 5.2. Proper grounding is very important for the accuracy and
the safety of your measuring system. Before interfering the instrument, please turn off the
power and wait at least for 30 seconds.
Warning: Connect the grounding terminal to the reference ground.
24V 0V
Figure 5.2 - Pin layout of MX08 DP 24VDC connector
