2. INTRODUCTION
2.1. Overview
MX08 is an economic multi-channel interfacing system including high resolution and
powerful state-of-the-art weighing and force measurement digitizer, weight display unit,
Input / Output unit and various gateways. MX08 family instruments are mounted on the
DIN rail in the control cabinet and communicate each other by internal data bus which is
named N-Bus. The external interface is done via Gateway. Gateway is slave in the field
bus and master in N-Bus. Available instruments are shown in figure below.
MX08 AD
A. Digitizer
MX08 MB
Modbus
Gateway
MX08 PB
Profibus
Gateway
MX08 EI
EtherNet/IP
Gateway
MX08 EC
EtherCAT
Gateway
MX08 IO
4I / 4O
MX08 DP
Display
MX08 PN
Profinet
Gateway
MX08 EN
Ethernet
Gateway
MX08 PL
Powerlink
Gateway

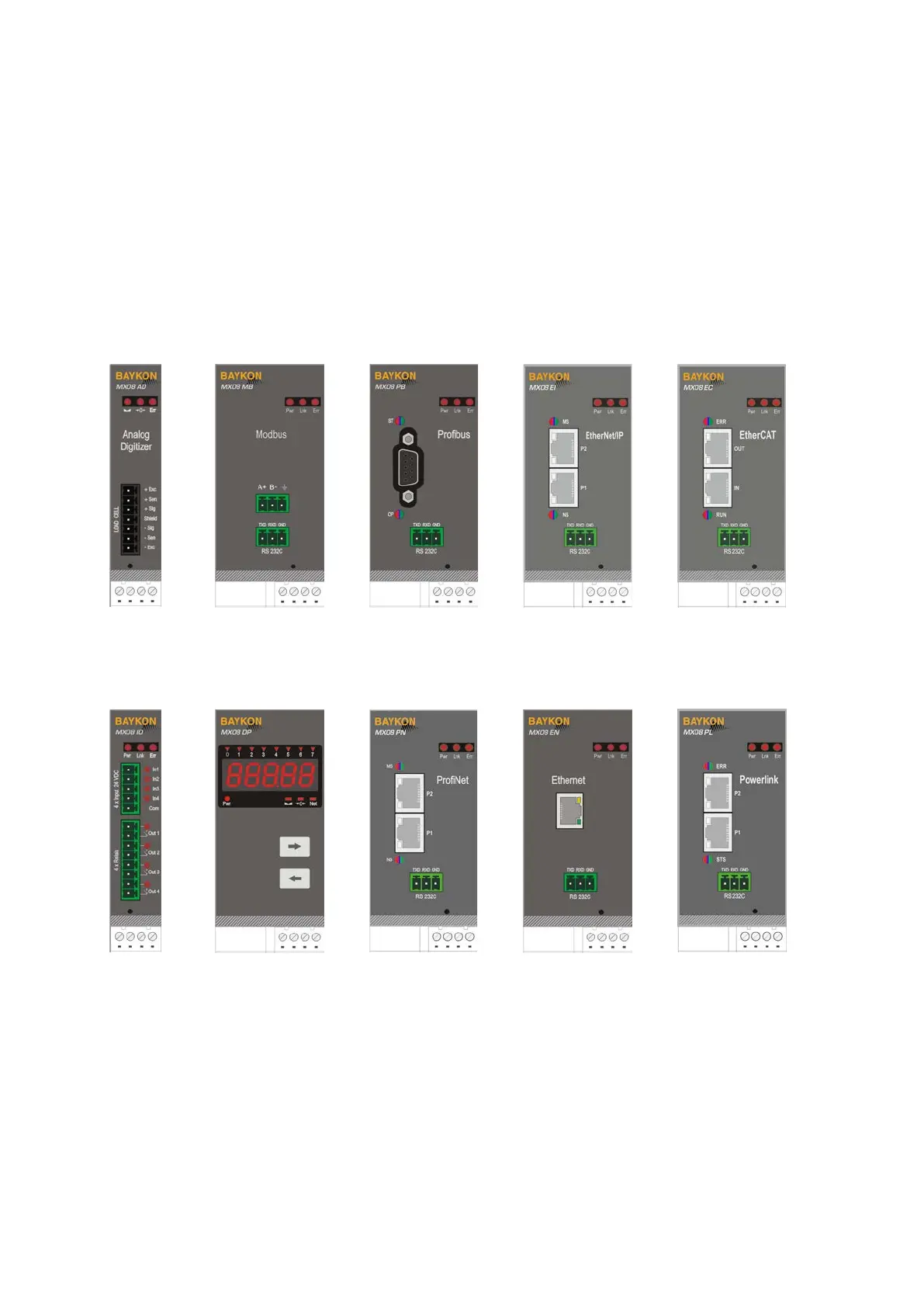

Figure 1.1 - MX08 family instruments
