BAYKON MX08 - Electrical Connections

MX08 Multichannel Weighing System, Technical Manual, Rev. 2.5 Page 110 of 144
Green, flashing
Online, no connections established
Red
Duplicate IP address, FATAL error
Red, flashing
One or more connections timed out (CIP Class 1 or 3)
12.2. Electrical Connections

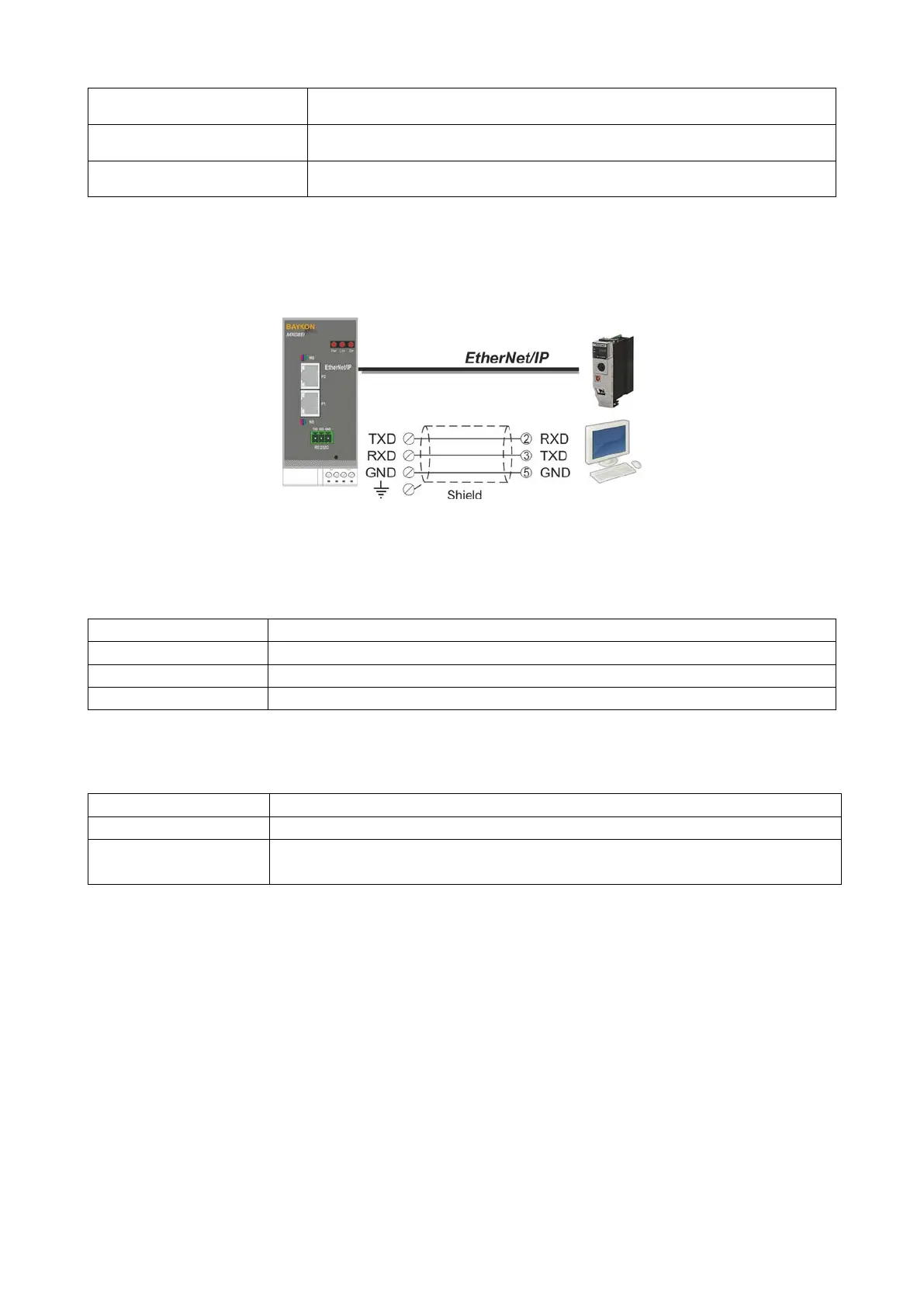

EtherNet/IP, RS-232C and power supply terminals are shown in Figure 11.1.
Figure 11.2 - MX08 EI serial interface connections
RS-232C Serial interface
Usage
Used for service port (xFace)
Baud rate
9600 bps
Length and parity
8 bit no parity
Start / Stop bits
1 start bit and 1stop bit
Powerlink interface
Usage
EtherNet/IP interface with PC or PLC
Data formats
EtherNet/IP
Ethernet
The Ethernet interface operates at 100Mbit, half duplex, as required
by EtherNet/IP.
Warning: Connect the shield to the reference ground or shield pin of the power connector.
Warning: Disconnect xFace PC software for EtherNet/IP interfacing.
Power Supply Connection
The pin configuration of the 24 VDC power supply connector located on front bottom of the
instrument is shown in figure below. Proper grounding is very important for the accuracy
and the safety of your measuring system. Before interfering the instrument, please turn off
the power and wait at least for 30 seconds.
Warning: Connect the grounding terminal to the reference ground.
