MX08 Multichannel Weighing System, Technical Manual, Rev. 2.5 Page 24 of 144

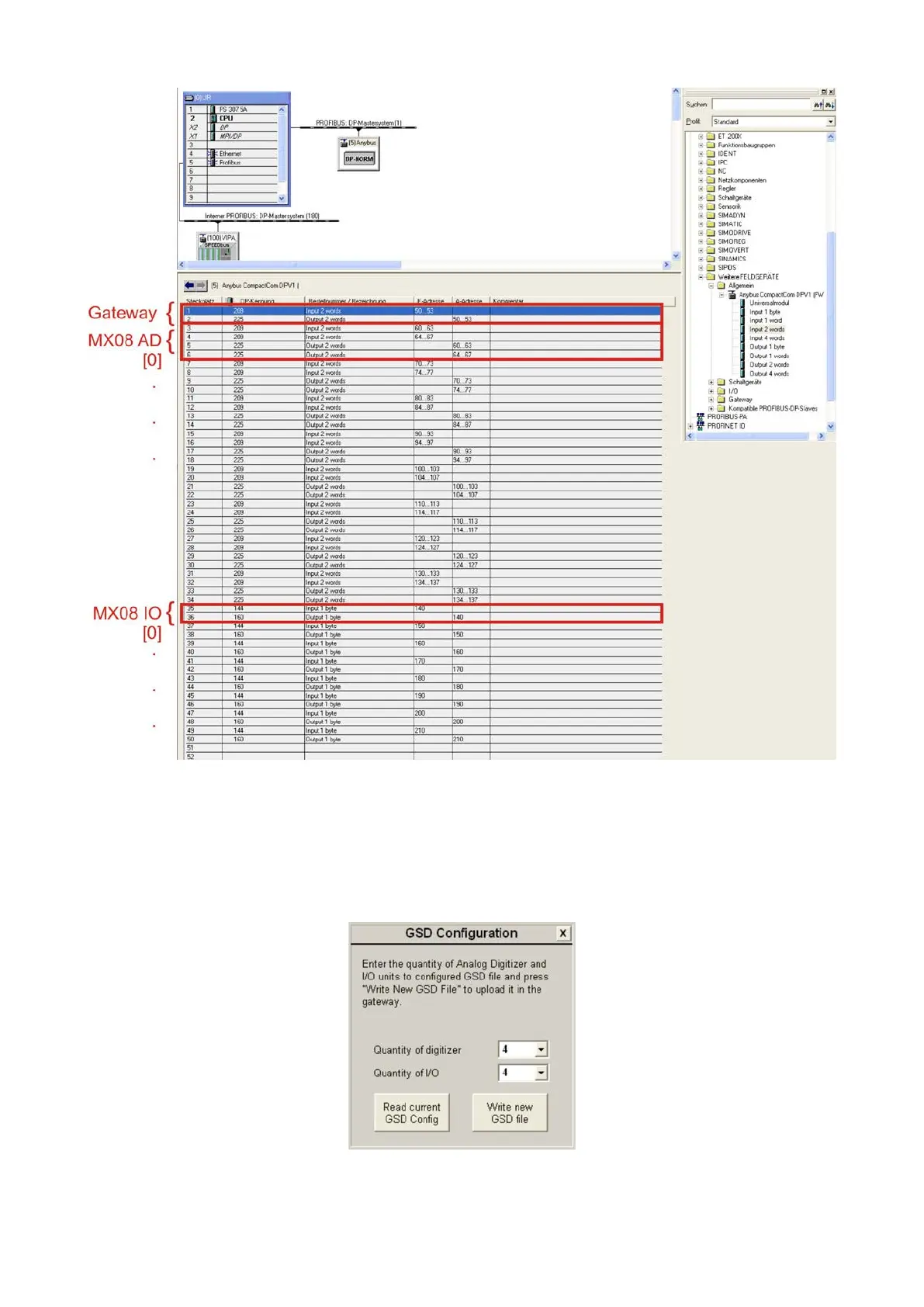

Figure 3.9 - Full system GSD configuration
Clicking “GSD/GSDML Configuration” in “Tool” menu opens the below window. Select
quantity of MX08 AD and MX08 IO in your system and click to “Write new GSD/GSDML
file”. This property would help to the PLC programmers to save time.
Figure 3.10 - GSD/GSDML configuration
