Becker AR620X - Page 42

Installation
Mechanical Installation
42 Transceiver Family 620X DV14307.03 Issue 04 March 2016

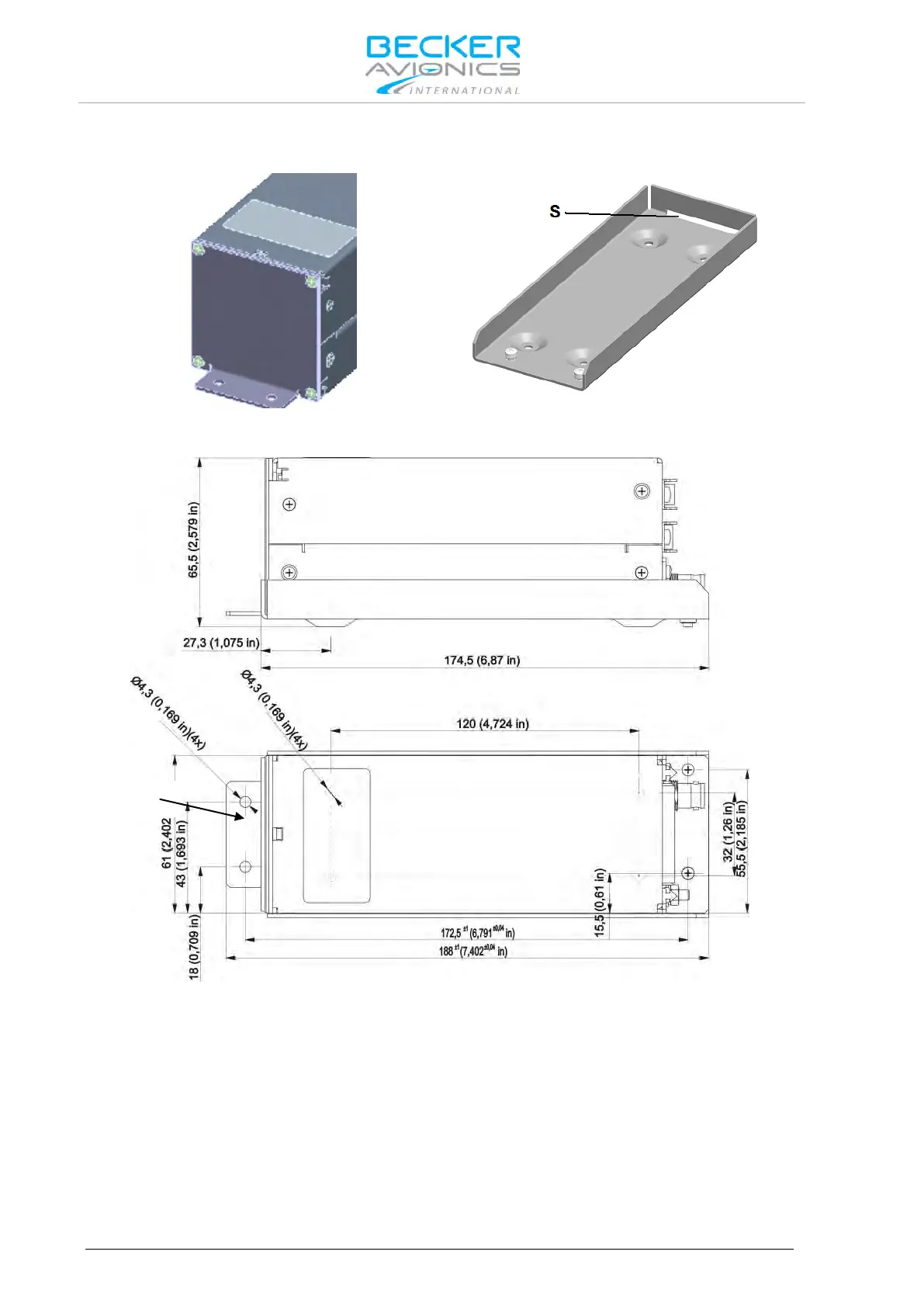

Dimensions mm (inch)
Figure 2-9: RT6201 front view
Figure 2-10: MK6201-(010) mounting kit
Figure 2-11: RT6201 with mounting kit MK6201
X
