Installation
Mechanical Installation
DV14307.03 Issue 04 March 2016 Transceiver Family 620X 43
RT6201: Installation using Mounting Kit

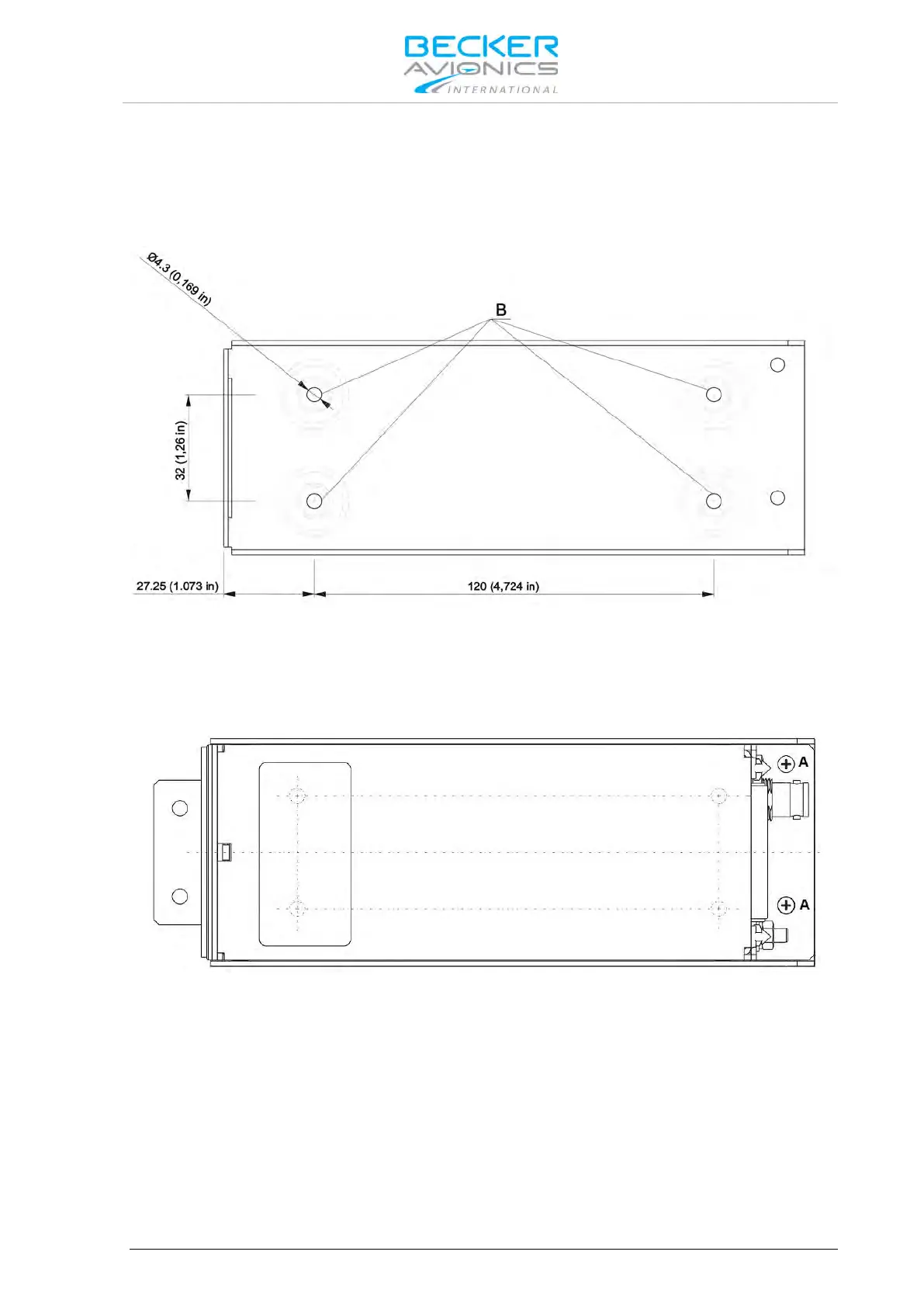

The necessary dimensions for installation using the mounting kit MK6201-(010) are given in
Figure 2-12 (dedicated holes marked with "B" letter).
Dimensions mm (inch)
Figure 2-12: MK6201-(010) mounting slot fixing holes
First, secure the mounting kit frame in the aircraft, and then slide flat part "X" Figure 2-11 of the
RT6201 into the mounting slot S (Figure 2-10). Use two M3 screws to tighten the unit to the mounting
slot (details "A" shown on Figure 2-13).Suitable means are for example M3x6 DIN7985, associated flat
washer 3.2 DIN433 and spring washer 3.1 DIN127B.
Figure 2-13: RT6201 top view, fixed on mounting slot
