Commissioning
EL72x1110 Version: 3.3

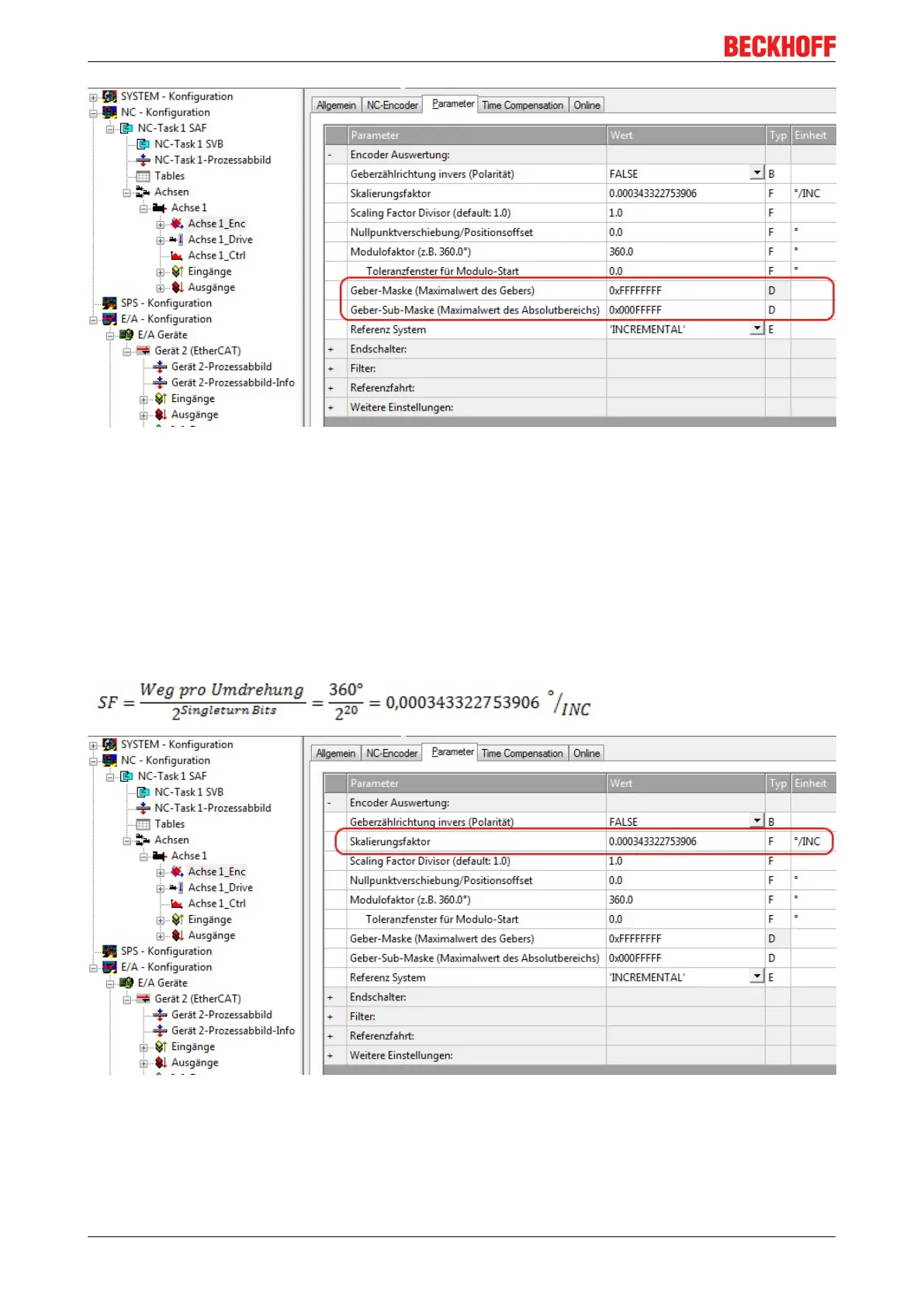

Fig.135: Setting the encoder mask
Scaling factor
The scaling factor can be changed by selecting "Axis 1_Enc" and tab "Parameter" in the NC (see Setting the
Scaling Factor). The value can be calculated with the formulas specified below. The calculation is based on
the assumption that one revolution corresponds to 360°.
The number of single-turn bits is taken into account in the calculation of the scaling factor. As indicated
above, the default setting for the EL72x1 is 20 single-turn bits. This value is also used for calculating the
scaling factor. If the single-turn bit value is changed, the scaling factor must be adjusted.
Calculation of the scaling factor:
Fig.136: Setting the Scaling Factor
