Installation
EL72x1 47Version: 3.3
Connection

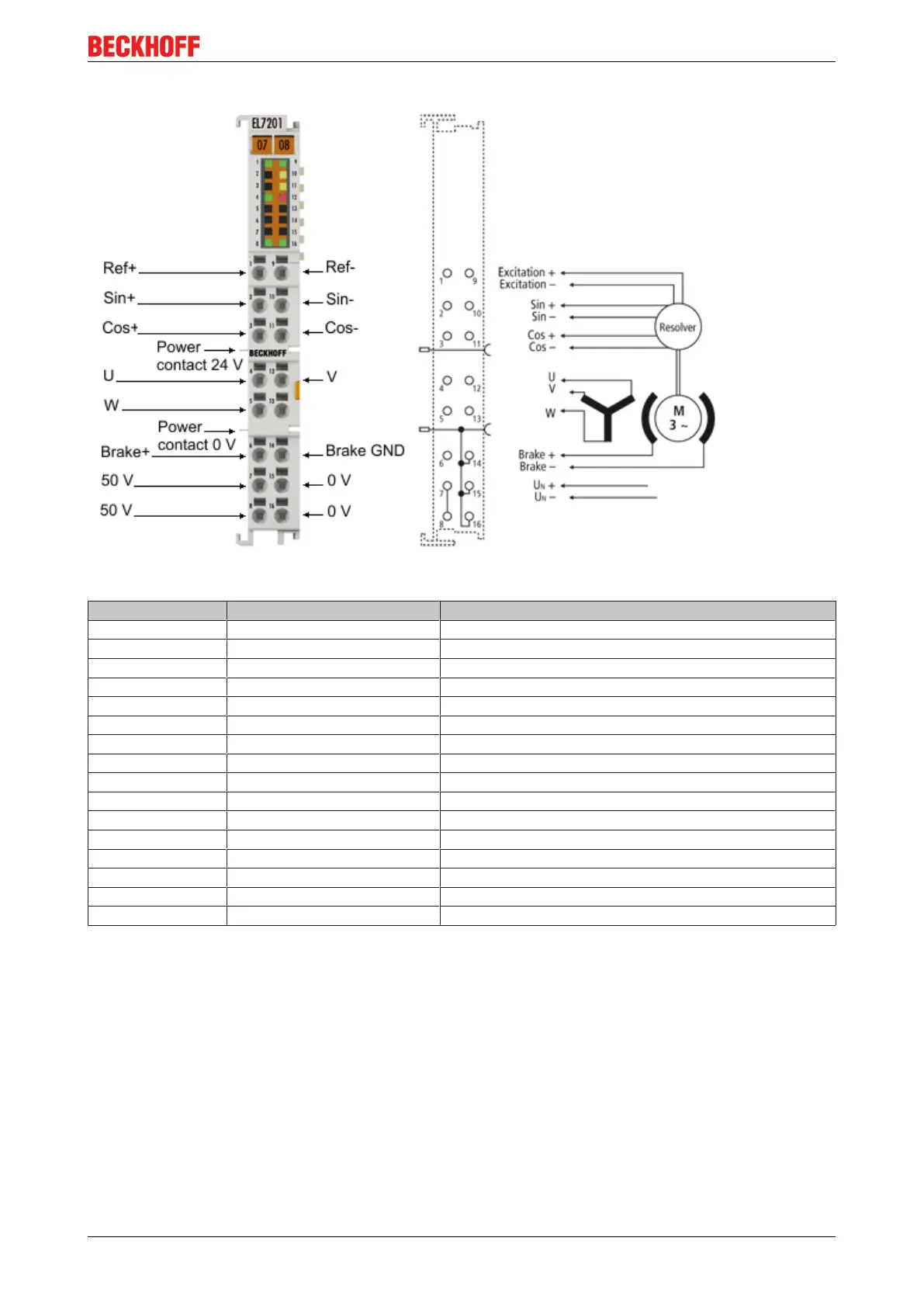

Fig.38: EL7201-000x connection
Terminal point Name Comment
1 Ref + Resolver excitation +
2 Sin + Resolver sine +
3 Cos + Resolver cosine +
4 U Motor phase U
5 W Motor phase W
6 Brake + Motor brake +
7 50 V DC link supply + (8...50 V)
8 50 V DC link supply + (8...50 V
9 Ref - Resolver excitation -
10 Sin - Resolver sine -
11 Cos - Resolver cosine -
12 V Motor phase V
13 n.c. not connected
14 GND Motor brake GND
15 0 V DC link 0 V supply
16 0 V DC link 0 V supply
