Connection

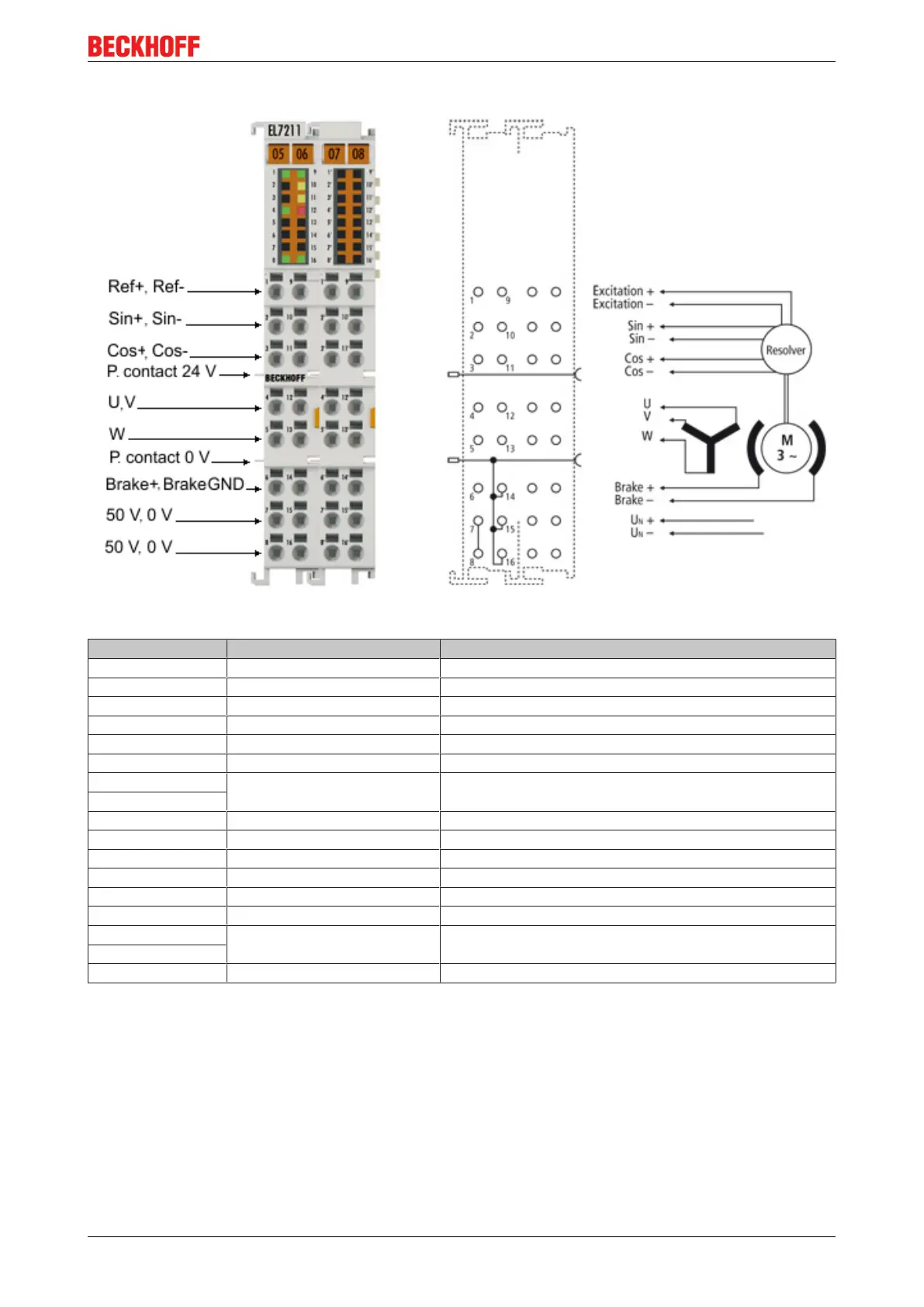

Fig.40: EL7211-000x connection
Terminal point Name Comment
1 Resolver excit. + Resolver excitation + (R1)
2 Resolver Sin + Resolver sine + (S2)
3 Resolver Cos + Resolver cosine + (S1)
4 Motor phase U Motor phase U
5 Motor phase W Motor phase W
6 Motor brake + Motor brake +
7 DC supply + DC link supply + (8...50 V)
8
9 Resolver excit. - Resolver excitation - (R2)
10 Resolver Sin - Resolver sine - (S4)
11 Resolver Cos - Resolver cosine - (S3)
12 Motor phase V Motor phase V
13 n.c. not connected
14 Motor brake GND Motor brake GND
15 DC GND supply DC link GND supply
16
1 ' - 16' not connected
