Beckhoff EL72 1 Series - Fig. 150 Selection of the Mode of Operation

Commissioning
EL72x1122 Version: 3.3

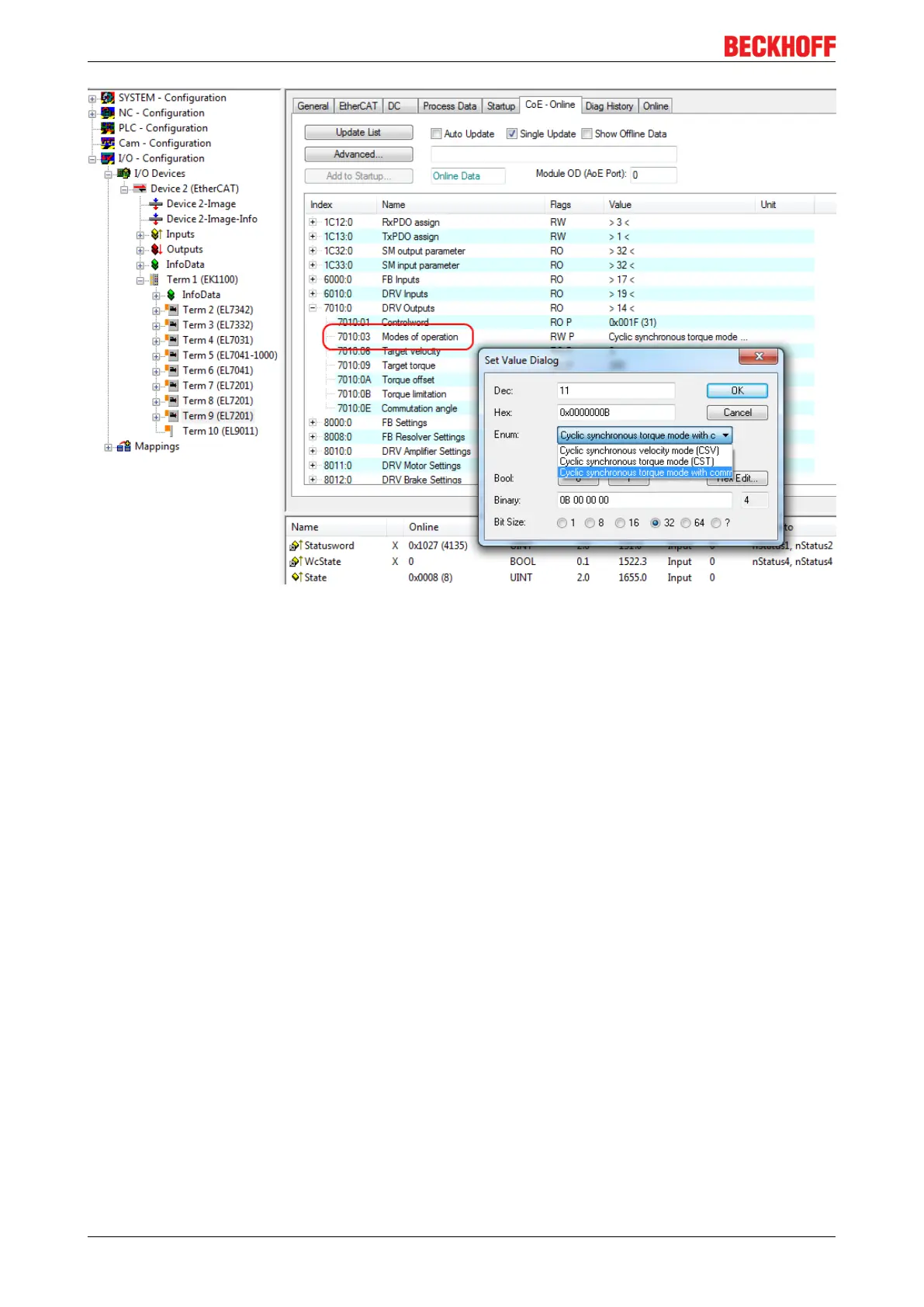

Fig.150: Selection of the mode of operation
• Under Predefined PDO assignment, also select Cyclic synchronous torque mode with commutation
angle (CSTCA), Fig. Selecting a predefined PDO assignment.
