Appendix
EL72x1190 Version: 3.3

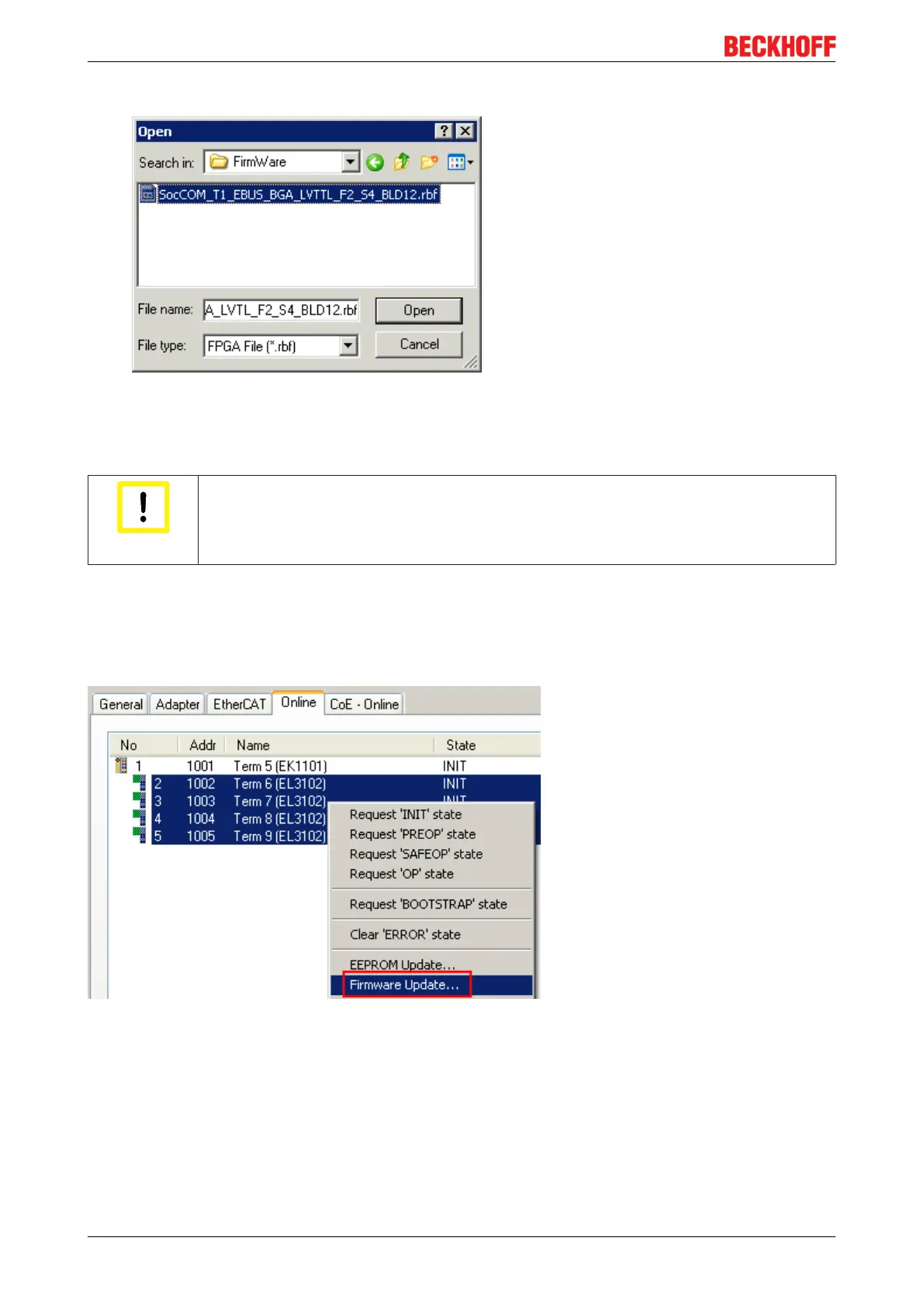

• Select the file (*.rbf) with the new FPGA firmware, and transfer it to the EtherCAT device:
• Wait until download ends
• Switch slave current less for a short time (don't pull under voltage!). In order to activate the new FPGA
firmware a restart (switching the power supply off and on again) of the EtherCAT device is required.
• Check the new FPGA status
Attention
Risk of damage to the device!
A download of firmware to an EtherCAT device must not be interrupted in any case! If you
interrupt this process by switching off power supply or disconnecting the Ethernet link, the
EtherCAT device can only be recommissioned by the manufacturer!
10.4.5 Simultaneous updating of several EtherCAT devices
The firmware and ESI descriptions of several devices can be updated simultaneously, provided the devices
have the same firmware file/ESI.
Fig.179: Multiple selection and firmware update
Select the required slaves and carry out the firmware update in BOOTSTRAP mode as described above.
