GENERAL INFORMATION
700000120 Rev. 1
1-3

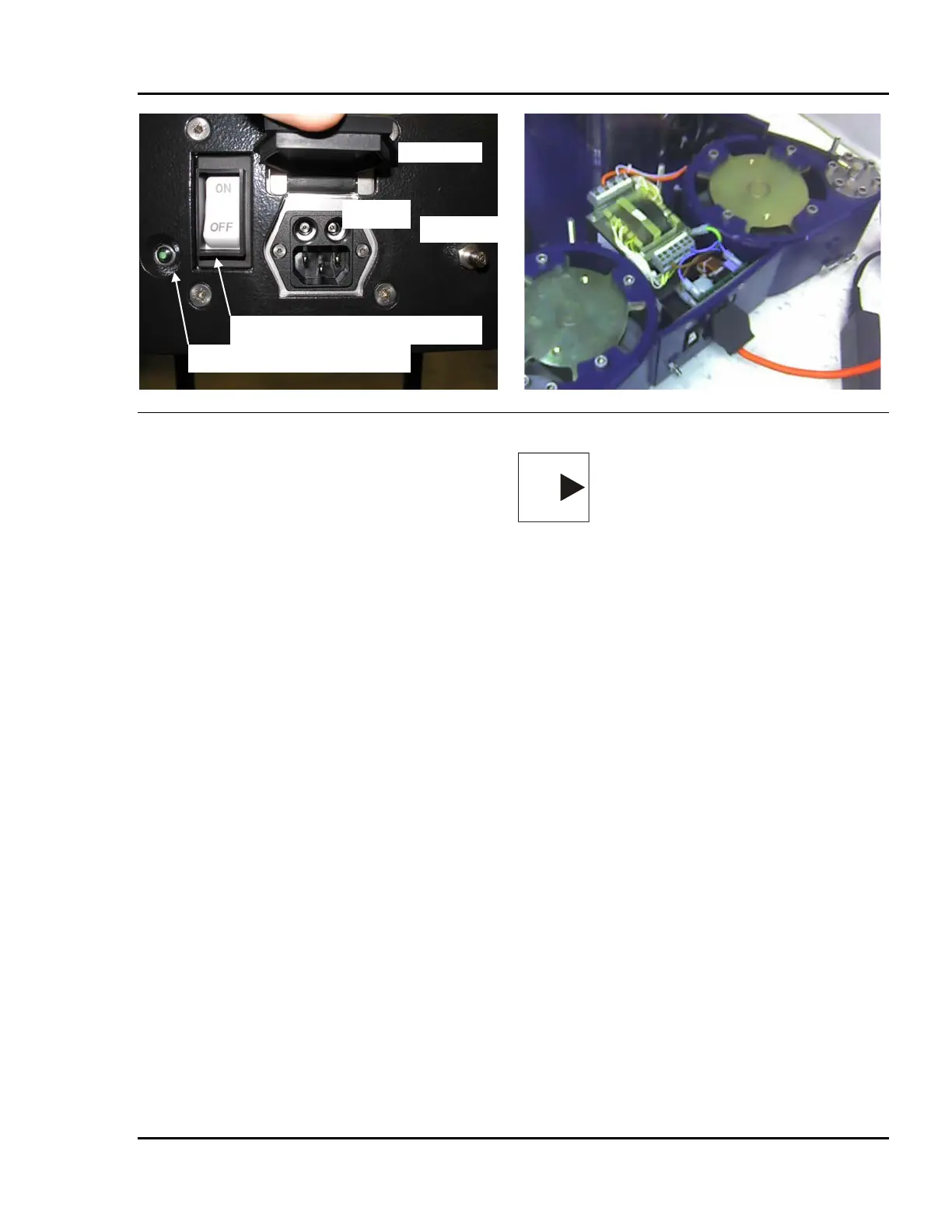

Figure 1-2 Power Center Components
FLOOR LOCK SYSTEM
Four self-stabilizing floor feet compensate up to
0.25'' (6 mm) for uneven floors. The floor feet can
be lowered (locked) or raised (unlocked) using the
control pendant. When the floor feet are raised,
the table rests on four non-conductive casters.
FUSES
Fuses are accessible without removing the base
covers.
They are located within the receptacle for the
power cord, contains two fuses. These fuses
protect against current surges in the AC (mains)
line.
In addition to the fuses, the ON/OFF switch serves
as a circuit breaker with a 20 Amp rating.
See Figure 1-2 for the fuse locations.
PRIMARY HAND PENDANT
A primary hand pendant controls all table
functions. The floor feet must be locked by
activating the FLOOR LOCK function to operate
any other pendant functions. This ensures that the
table base will not move while the tabletop is
articulating.
The primary hand pendant plugs into the
PATIENT LEFT side of the remote control
connector box, which is located on the head end of
the column beneath the table top. Insert the
pendant so the red dot on the connector aligns with
a red dot on the socket in the Primary Hand
Pendant Connector Box.
NOTE
NOTE — The ON/OFF function on the
control pendant can be used to stop the
table while in motion.
AUXILIARY HAND PENDANT
The Auxiliary Hand Pendant is identical to
Primary Hand Pendant and can be used as a
replacement for a failed Primary Hand Pendant.
To replace the Primary Hand Pendant, unplug it
from the Primary Pendant receptacle and plug in
the Auxiliary Pendant. The Auxiliary Hand
Pendant will now have all of the functions and
indicators of the Primary Hand pendant.
CHARGE INDICATOR
FUSES
GROUND
COVE
R
ON/OFF CIRCUIT BREAKER
