OPERON D 850 SURGICAL TABLE
OPERATING INSTRUCTIONS
Rev. 1 700000120
2-6
when a load is applied.
WARNING
WARNING — When releasing the
locking mechanism, support the
headrest, as it will fall freely if the
locking mechanism is not engaged.
The table headrest can be latched in any position
from 45° above horizontal to 90° below
horizontal.
Back Section
Release
Bar
15°
90°
4
5
°

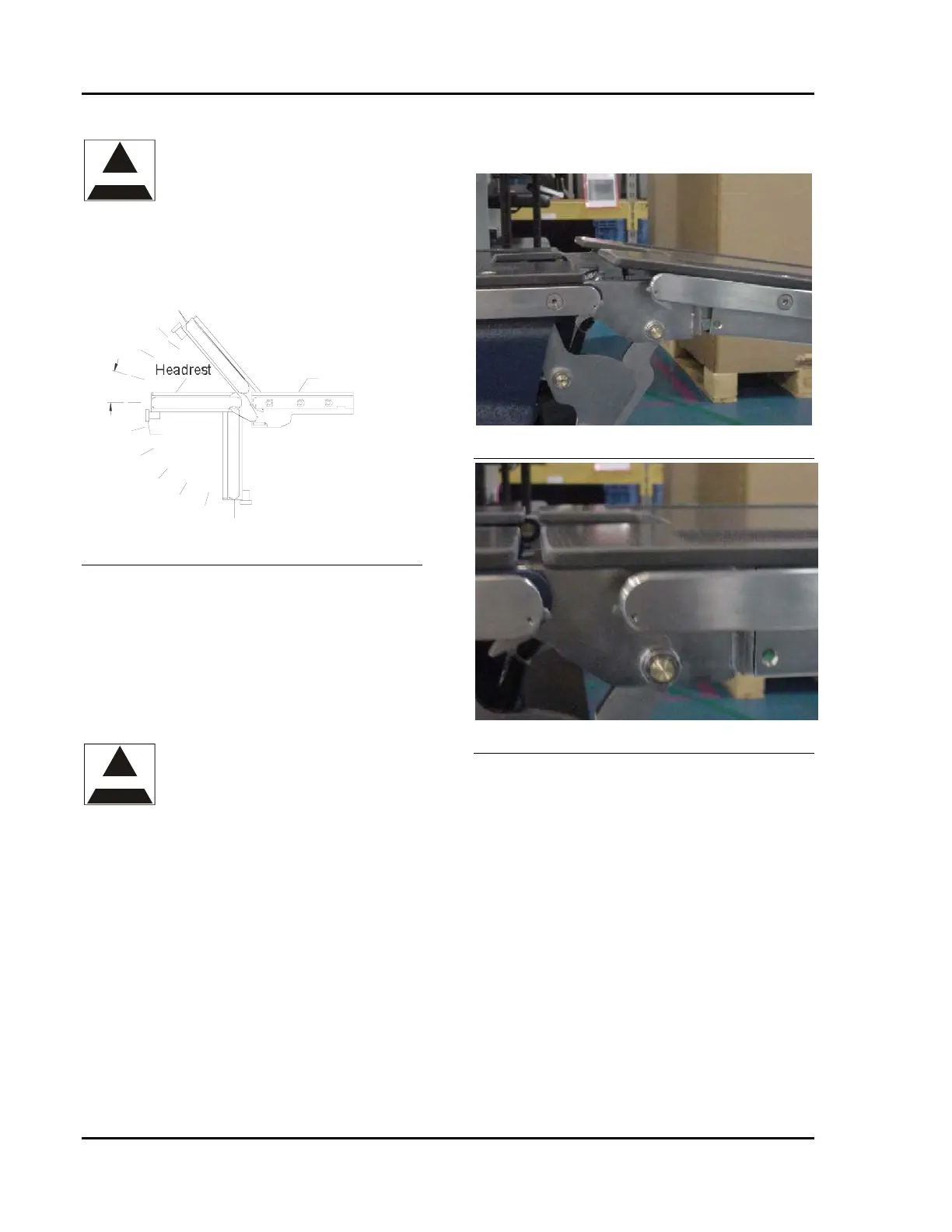

Figure 2-4 Headrest
To raise and lower the headrest:
a. Release the locking mechanism by
pressing the release latch on the underside
of the headrest.
b. When the headrest is properly positioned,
release the latch.
REMOVABLE BACK AND LEG SECTIONS
WARNING
WARNING — Failure to securely
lock the leg section into place may
result in patient injury. Always check
the retention of the leg section upon
installation.
Install the section as follows:
1. Using the pendant, activate BACK or
LEG function until the section pivots are
horizontal.
2. Once the pivots are horizontal, slide the
section onto the pivots. The leg section
has guides formed into the underside of
the support plate to aid in alignment.
3. Slide the section towards the seat section
until it comes to a stop and the locks on
both sides snap into place. Look for the
green dot to appear in the window on the
side of the section frame.
4. Attempt to pull the section away from the
table to make sure that it is retained. If
not, push evenly until the locks engage.
Figure 2-5 Leg Section Attachment
Figure 2-6 Assembled Leg Section
To remove the sections:
Depress the two latches located in the
underside of the section frame to release the
locking mechanism. Pull back evenly.
The table top hydraulics consist of the table top
distribution blocks, back, leg, and kidney
cylinders.
The pressure and tank lines for the top column
manifold are shrouded by the column covers.
They feed through side openings within the table
top.
