Berchtold OPERON D 850 - Using Hollow Plugs and Washers to Secure Hydraulic Lines; Hollow Plug Torque Specifications

OPERON D 850 SURGICAL TABLE
DETAILS OF OPERATION
Rev. 1 700000120
4-4
8mm Hollow Plugs
Double Single
10mm Hollow Plugs
Single Double
8mm Washer with Seals
(PN 304137)
(Inner Black Ring is Sealing Material)
10mm Washer with Seal
(PN 304485)
(Inner Black Ring is Sealing Material
)

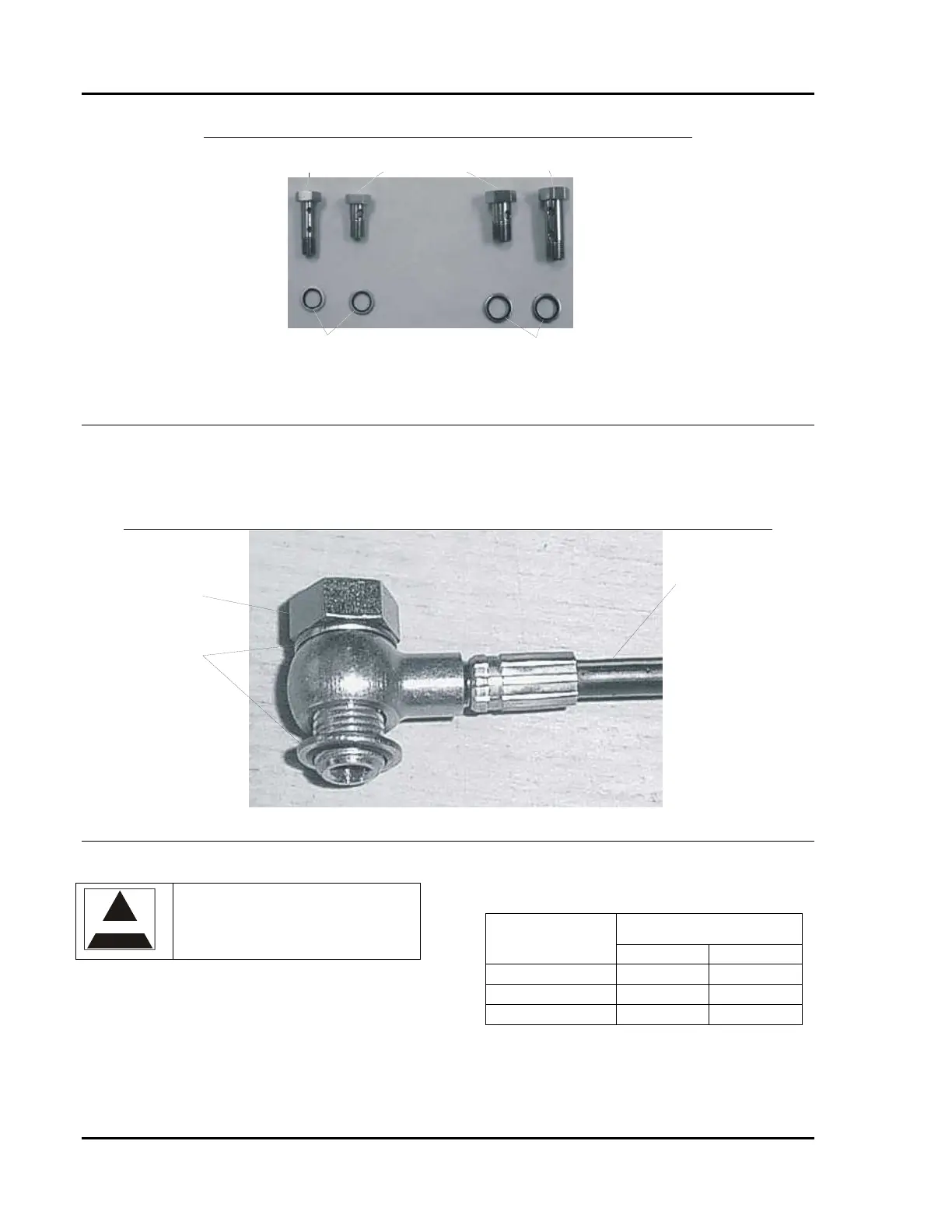

Figure 4-7 Hollow Plugs and Washers
Using Hollow Plugs and Washers to Secure
Hydraulic Lines
The 10mm Hollow plugs have a 14mm hex
head.
The 8mm Hollow Plugs have a 12mm hex head.
A Washer must be placed between any 2
surfaces. A single length hollow plug requires 2
washers, and double length requires 3 washers.
Hydraulic Hos
e
Hollow Plug
Washers
Figure 4-8 Securing Hydraulic Line
Hollow Plug Torque Specifications
CAUTION
CAUTION – Do not over tighten the
hollow plugs. Over tightening can
cause the seals to deform and leak.
Hollow plugs must be torqued to the settings
specified (± 10%) in Table 4-1. Be careful not
to over torque the fittings
.
Torque Setting
Plug Size
Ft Lb N•M
M8 7.3 10
M10 10.3 14
G1/8
(
1/8” 10.3 14
TABLE 4-1 HOLLOW PLUG TORQUE
SPECIFICATIONS
