The back cylinders are in parallel. The leg
cylinders are in series and have an additional
compensation valve which allows the left and
right cylinders to remain synchronized. To
synchronize the leg cylinders. Turn the table
OFF at the power switch. Press the LEG UP
and LEVEL buttons on the hand pendant and
turn the table ON at the power switch
The kidney cylinders are in series. The left and
right kidney cylinders are also different. The
left kidney cylinder has OD larger than the right
kidney cylinder. The strokes are identical. The
kidney sensor is an optical switch mounted on
the left side of the table.
BERCHTOLD recommends that the table top
cylinders not be replaced by the end user
because of the risk of contamination entering the
hydraulic system.
FOOTSWITCH (OPTIONAL)
CAUTION
CAUTION — The Footswitch’s
electrical connections are resistant to
fluid intrusion, but if fluid drainage
is anticipated, the footswitch should
be protected by wrapping it with a
clear disposable footswitch bag.
This will reduce the need to disinfect
the footswitch.
NOTE
NOTE — to operate the footswitch
control, the floor feet must be locked.
NOTE
NOTE — It is not necessary to press
the primary hand pendant ON/OFF
switch when operating the footswitch
control. The primary hand pendant
can not be operated simultaneously
with the footswitch.
The footswitch plugs into the left lower
connector on the receptacle box, which is
located on the head side of the column, under
the table top. Align the red dot on the
footswitch connector with the red dot on the
mating connector (facing down). (See Figure 2-
7.)
Trendelenburg/
Reverse Trendelenburg
Table Up/
Table Down
Tilt Left/
Tilt Right

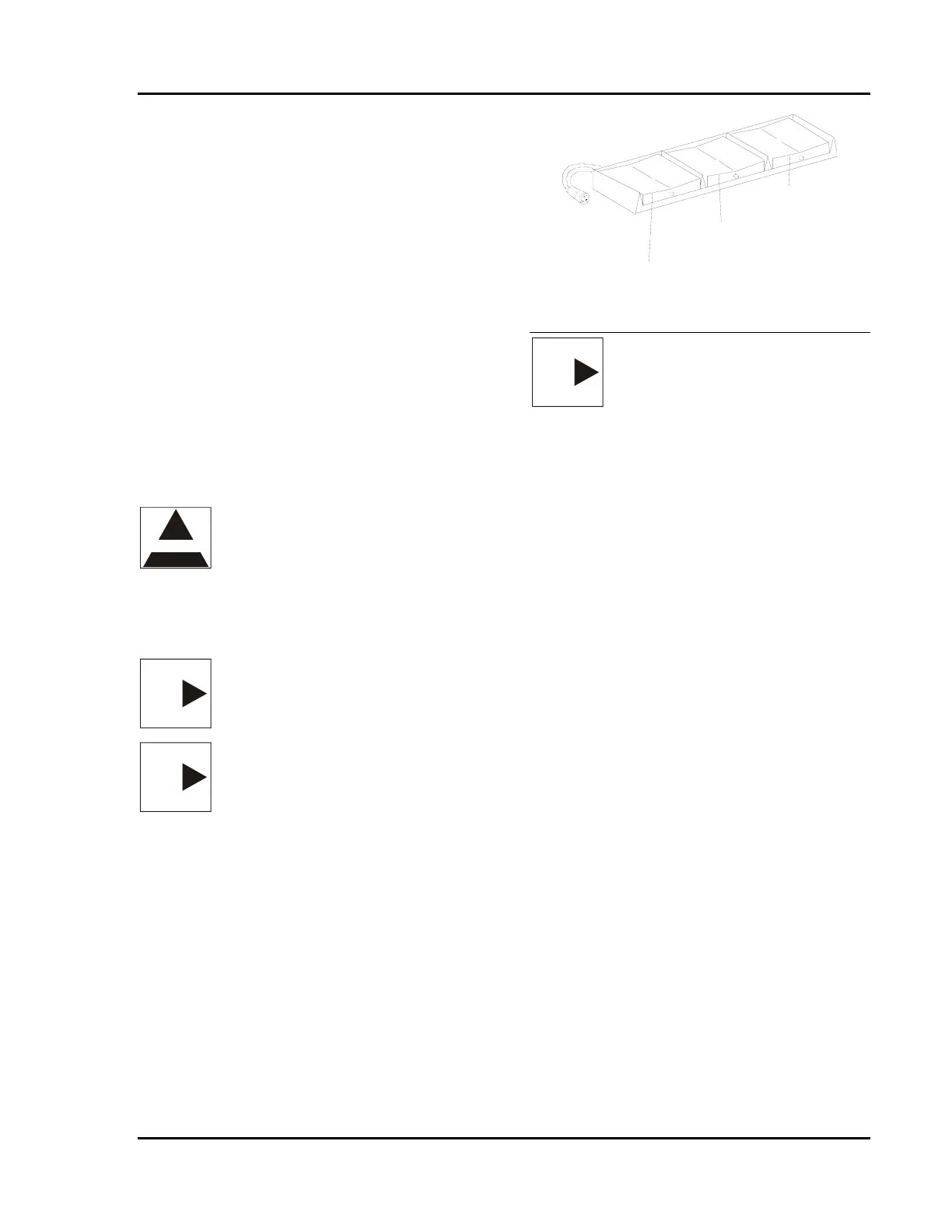

Figure 2-7 Footswitch
NOTE
NOTE — To avoid inadvertent
actuation, the footswitch should be
disconnected for procedures that do
not require its use.
The footswitch will not operate if the red battery
indicator is lit, either flashing or steady.
To operate the table, select the desired function
by pressing the appropriate side of the rocker
switch. Pressing the opposite side of the rocker
will reverse the direction of travel. Releasing
the rocker switch will stop table movement.
