OPERON D 850 SURGICAL TABLE
OPERATING INSTRUCTIONS
Rev. 1 700000120
2-1
OPERATING INSTRUCTIONS
PINCH POINTS
WARNING
WARNING — Cutting or crushing
injury may occur if any part of a
patient or staff member is caught in a
pinch point when the table is
articulated.
CAUTION
CAUTION — Damage to the table or
object may occur if any foreign object
is caught in a table pinch point when
the table is articulated.
Due to the variety of table positions attainable
with the OPERON D 850 table, pinch or
crushing points exist (Figure 2-1). The OR staff
must be trained to ensure that body parts or
surgical apparatus are not caught in pinch points
when the table is operated.
This list is not all-inclusive, because pinch
points can be created by the attachment of
accessories. Always ensure that the patient and
staff are clear of all pinch points before moving
the table or while the table is in motion.
Pinch points include but are not limited to:
1. Kidney elevator to seat top
2. Kidney elevator to seat channels
3. Kidney elevator to back section
4. Headrest to back section
5. Back / Leg section link to seat channel
6. Side shields to column shields (in tilt)
7. Column shields to base cover
8. Base to floor
9. Floor feet to base
10. Floor feet to floor
11. Leg section to column shield
12. Foot pump handle to floor
13. Back Section to seat top.

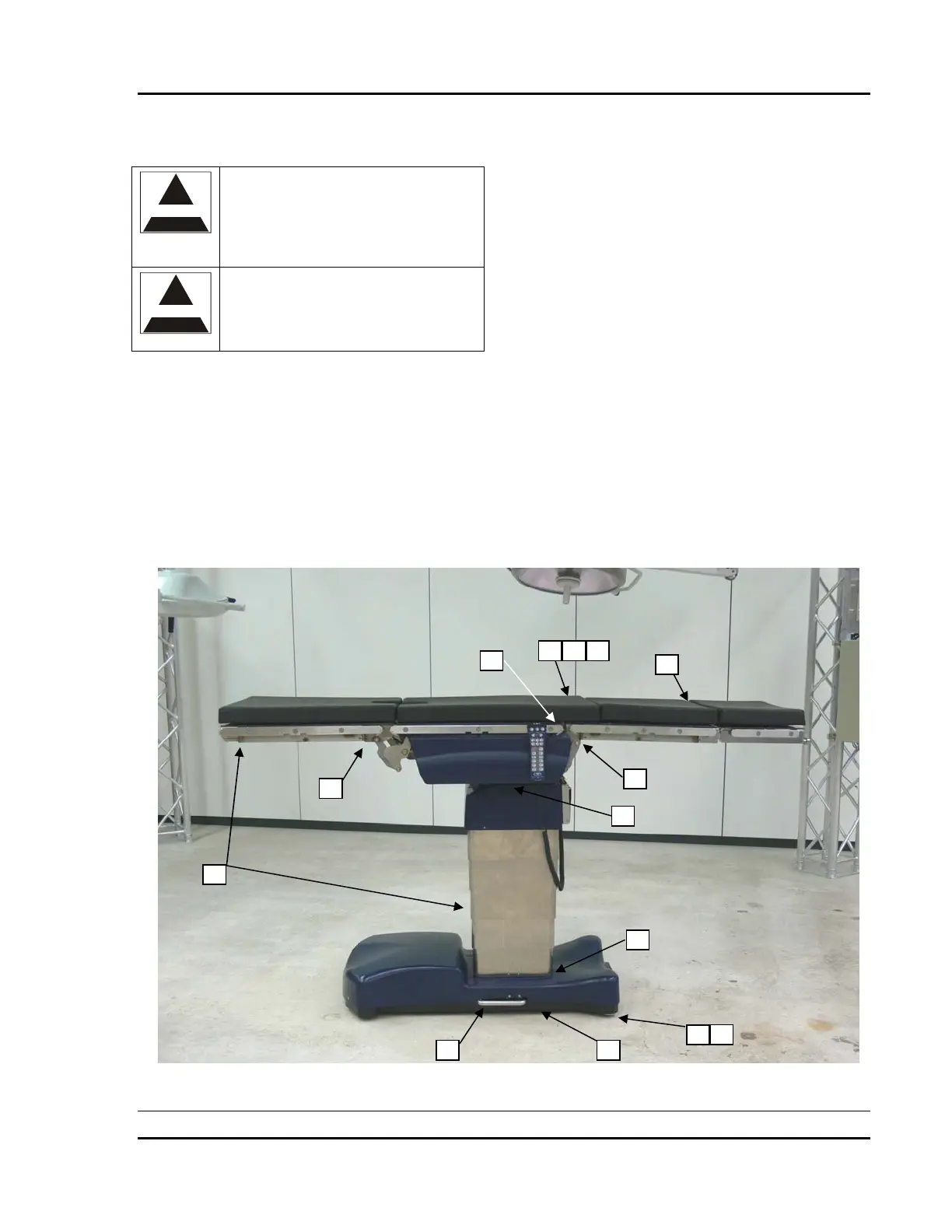

Figure 2-1 Pinch Points
1 2 3
4
5
6
7
9
10
11
12
5
8
13
