OPERON D 850 SURGICAL TABLE
GENERAL INFORMATION
700000120 Rev. 1
1-5
PRIMARY HAND PENDANT FUNCTIONS
1. POWER - Turns the primary hand
pendant on and off. The pendant will be
backlit when activated (unless backlight
timer is exceeded. See hand pendant
operation section)
NOTE
NOTE: - The power switch on the base of
the table must be in the ON position before
the hand pendant will operate.
NOTE
NOTE - If AC power is not present, the
auto-shutdown feature will turn the control
pendant off after a preset period of non-
use. To reactivate the pendant, press any
function button. If AC is present, the auto-
shutdown feature is disabled, and the hand
pendant remains on until it is turned off.
2. FLOOR LOCK - Raises (unlocks) or lowers
(locks) the floor feet.
3. SPEED ADJUST (HI/LO) – changes the
rate of speed of all movements between
normal and slow. This is useful when
gradual motion is required.
4. AUTO DRIVE REV/FWD - (Optional)
drives the table toward the head (forward) or
foot (reverse). There is a slow acceleration,
followed by a higher speed (~0.75m/s) if
held.
5. BACK v - Raises and lowers the back
section.
6. TABLE v - Raises and lowers the entire
tabletop.
7. LEG v - Raises and lowers the leg section.
8. TREND/REV TREND
(Trendelenburg) - Tilts
the entire tabletop about the transverse axis.
9. SLIDE FOOT/SLIDE HEAD - Slides the
table top toward and away from the head.
10. TILT LEFT/TILT RIGHT - Rotates the
entire tabletop about the head to foot axis
.
11. UP KIDNEY/DOWN KIDNEY - Raises
and lowers the kidney elevator.
12. FLEX - Combines back down with reverse
Trendelenburg to form an inverted V
(jackknife position).
13. REFLEX - Combines back up with
Trendelenburg to return from FLEX position.
14. CHAIR - Combines back up, Trendelenburg,
and leg down functions to form a chair-like
support. The three functions operate in a
repeating sequence until the back section
reaches 90° relative to the seat section and
the leg sections reach 105° degrees relative
to the seat section.

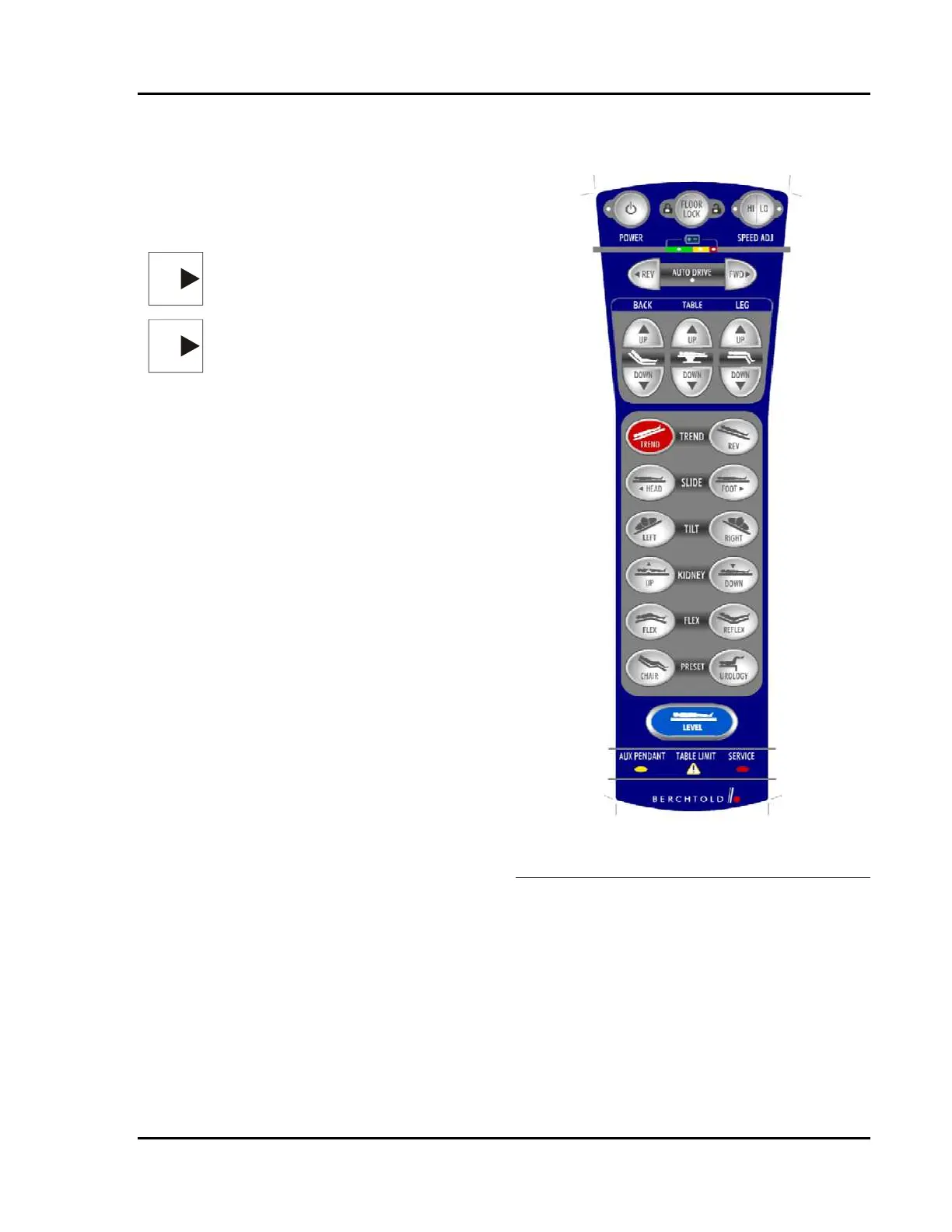

Figure 1-4 Primary Hand Pendant
Functions
15. UROLOGY – Levels the table; then
lowers the leg section to 90° or until a
software limit is reached. (To bring the
table to its lowest position and have LEG
at 90°, slide must be fully toward the leg
end)
16. LEVEL - Moves the table to a horizontal
position that is within 1 degree of level.
This function should be used prior to the
Flex and Chair Functions.
