Right control station

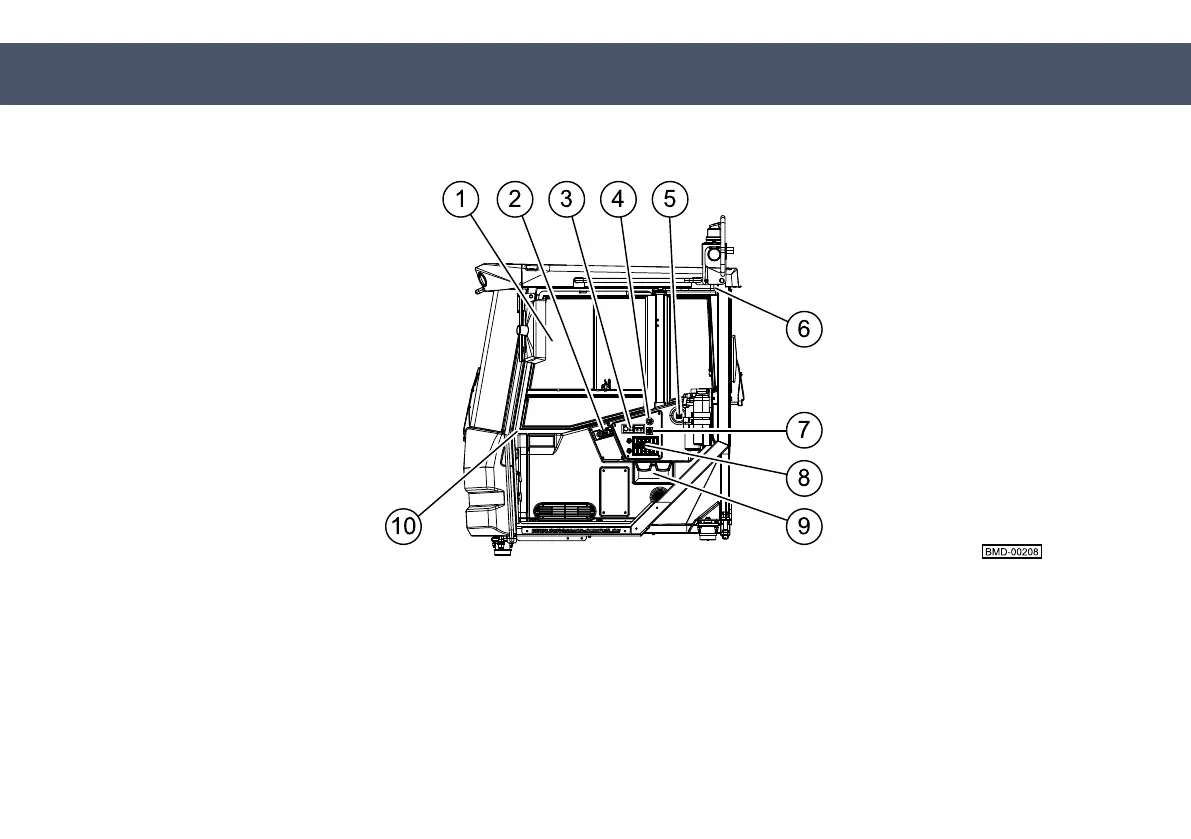

Fig. 5.10: Technical description of the right control station
1 Emergency exit 2 Radio preparation 3
Heater/air-conditioning system
control
4 Ignition switch 5 Diagnostic socket 6 Interior light
7 Mirror adjustment 8 Switches 9 Bottle holder
10
Front
control station
50-020-1011-900_EN
1.0 - © 2/15/2017
124
5 Structure and function
5.2 Technical description of the basic machine (series production equipment)
