Rear control station

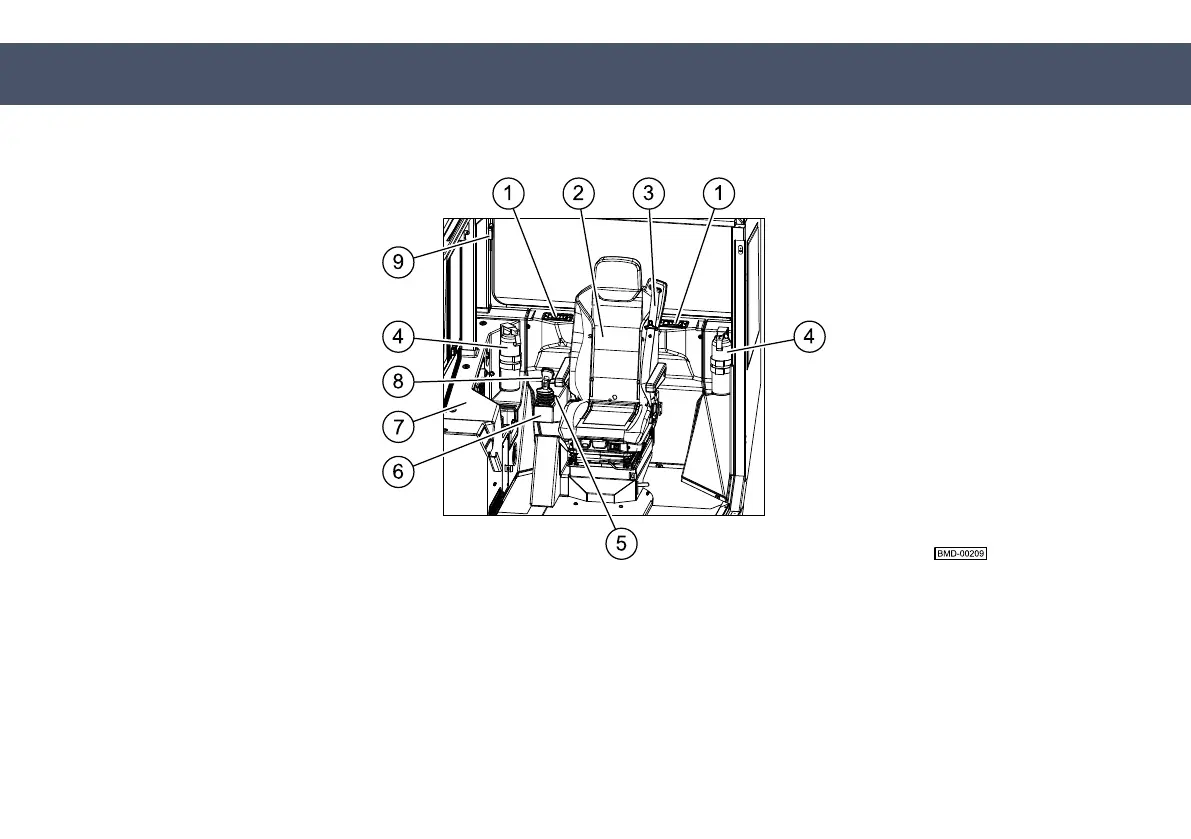

Fig. 5.11: Technical description of the rear control station
1 Ventilation nozzle 2 Operator's seat 3 Safety belt
4 Fire extinguisher 5 Switches 6 Joystick console
7
Right
control station 8 Joystick 9 Emergency hammer
The
rear
control station is located in the operator's cab next to the
right
con‐
trol station (7).
