8.2.6.7 Joystick console

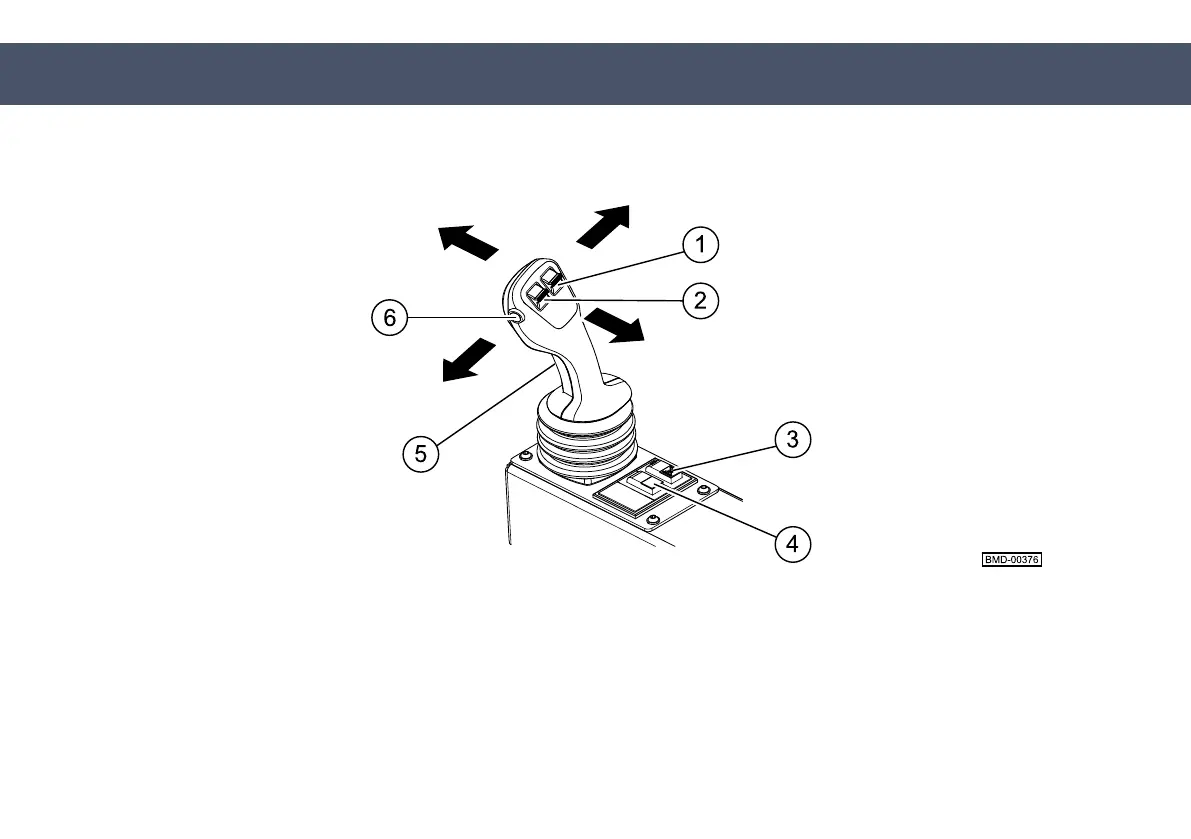

Fig. 8.29: Joystick console
1 Working mode/Transport mode switch 2 Travel direction switch 3 Ladder switch
4 Parking brake switch 5 Release trough button 6 Release/Neutral button
The travel direction switch (2) selects the travel direction.
