12.2 Safety Instructions
110

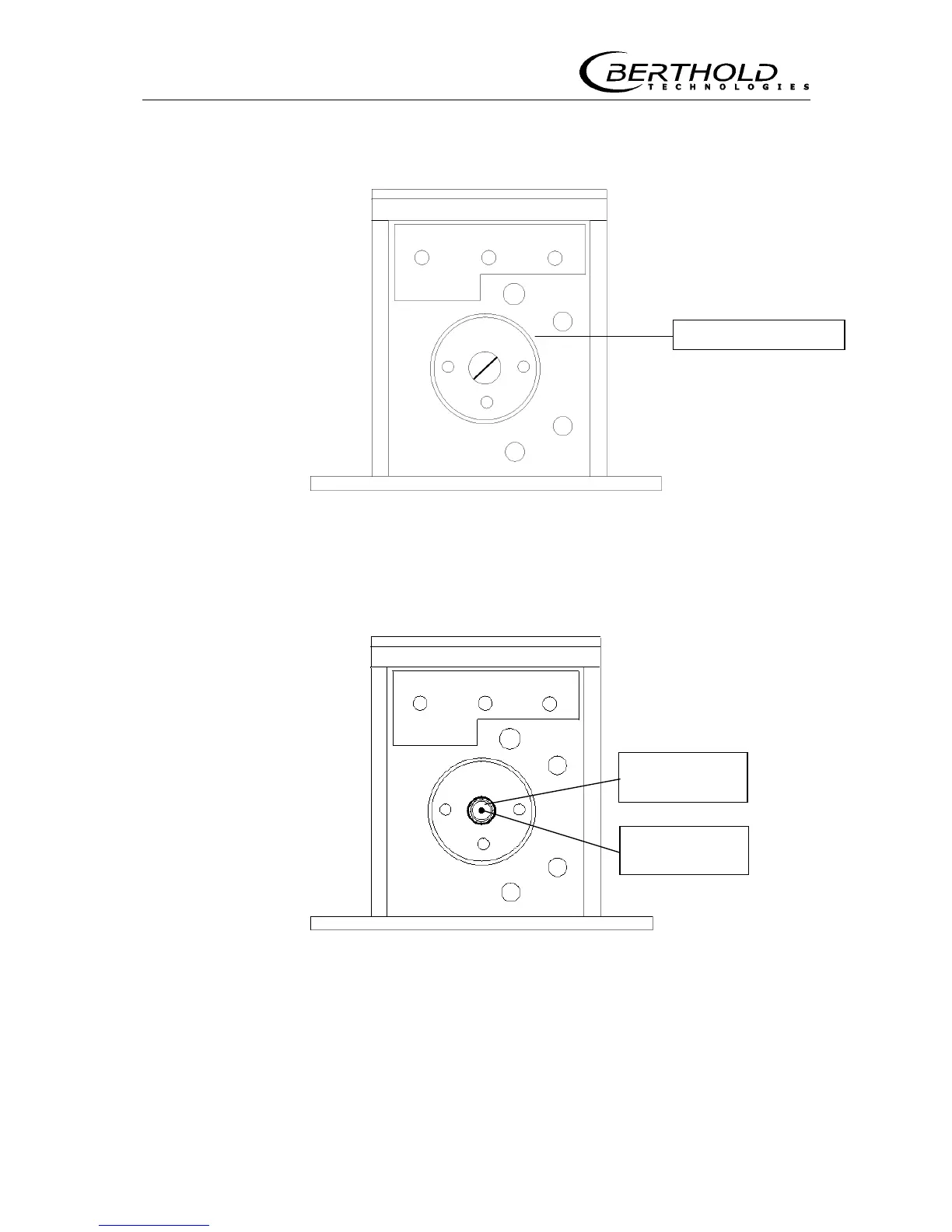

Figure 37:Measuring frame foot – source removal side without cover
□ Unscrew cover cap (3) using a large screwdriver
□ Screw M4 screw a few turns into the now accessible
source end piece (5).
□ Take hold of the M4 screw using a pair of pliers, pull the
rod source out of the shielding and put it into a transport
shielding.
□
Source
end piece (5)
Internal screw
thread M4 (4)
Cover plate (3)
