Section 3 Installation
25
□ If very hot material is being conveyed, a heat conducting
tin plate must be installed between the conveyor flow
and the detector. On request, a water cooling jacket can
be supplied for the detector. A different frame assembly
is required if the insulation or the water cooling system
cannot be installed. In this case, the detector has to be
installed below and the shielding including the source
above the conveyor flow.
□ The measuring frame is to be mounted such that
- there is sufficient space in front of the lock to replace
the source (about 2 m)
- that the other side of the measuring frame is easily
accessible to open/close the radiation exit channel.

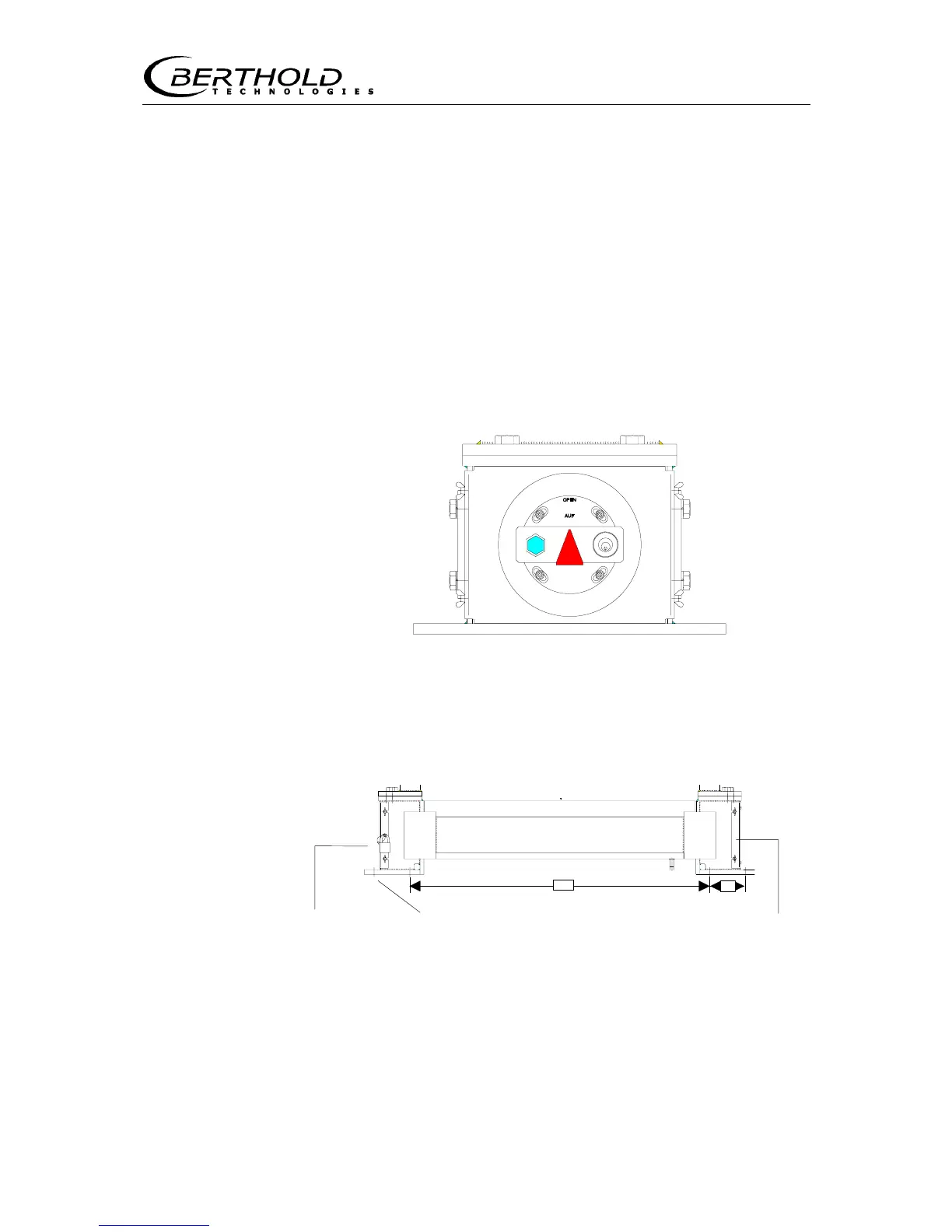

Figure 14: Rotating lock for opening/closing the radiation exit
channel
a
b
Changing the Bottom plate Opening/closing the
rod sources see Figure 16 radiation exit channel
Figure 15: Measuring frame foot with shielding
Position
OPEN
