540
8
PROPULSION SYSTEMS
Studio ti 03312 540-04usa
161

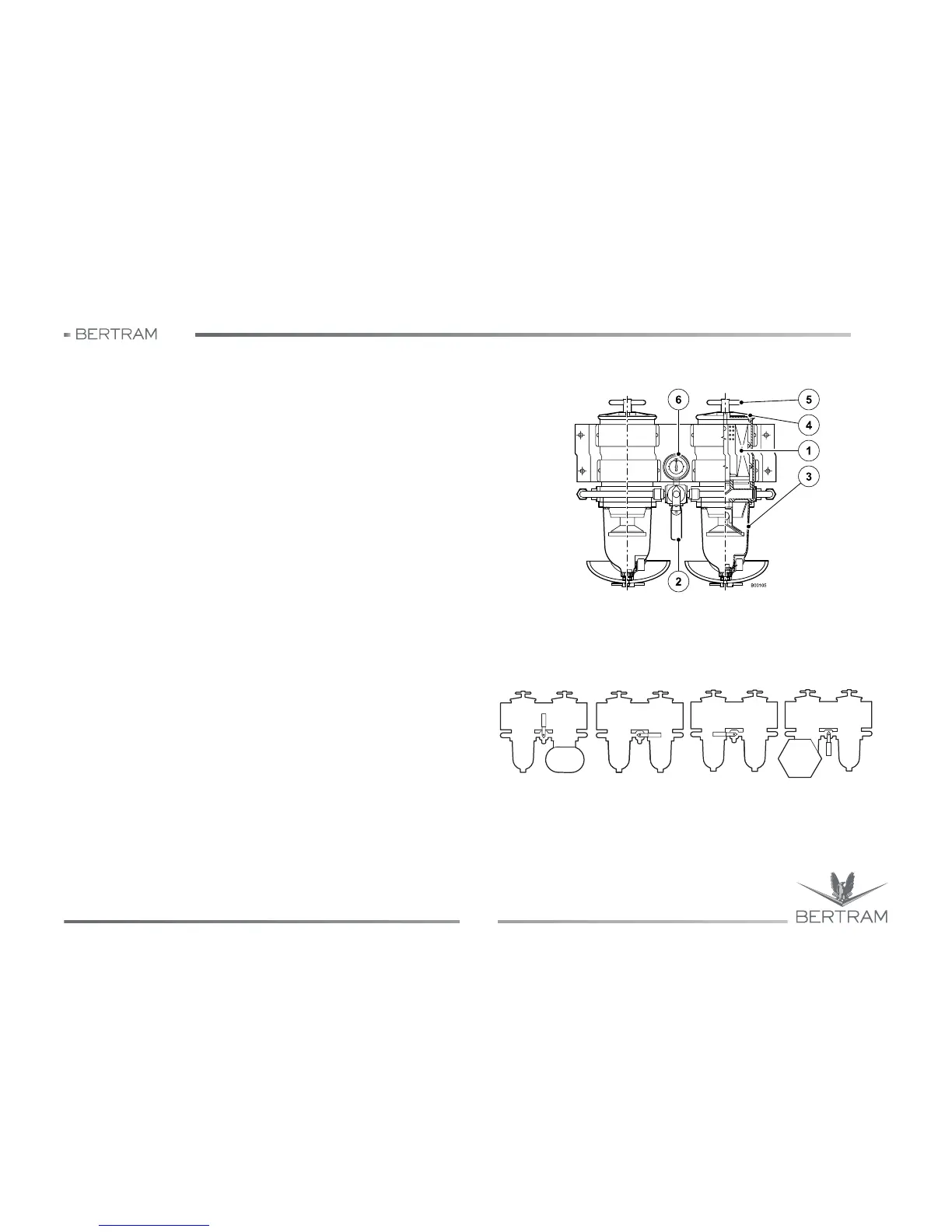

8.10.4 Water/fuel separator prefilters for engines
Maintenance and check
The frequency of water drainage or of filtering element (1) replacement is
determined by fuel contamination level.
The selector valve (2) (or handle indicator) allows the operator to isolate
one filter at a time, in order to carry out service even with engine running.
Water drainage from collecting tank
Check or drain the water collecting tank (3) daily. The collecting cup must
be drained before polluting elements reach the engine.
− In order to eliminate the polluting elements place a big recovery tank
there below.
− Remove the cover (4) and fill the device with clean fuel.
− Close the cover and tighten T-handle (5) firmly by hand.
B00106
BOTH OPEN
LEFT
OPEN
RIGHT
CLOSED
LEFT
CLOSED
RIGHT
OPEN
BOTH SHUT OFF
CHECK
POSITION
DRAINAGE
INLET
