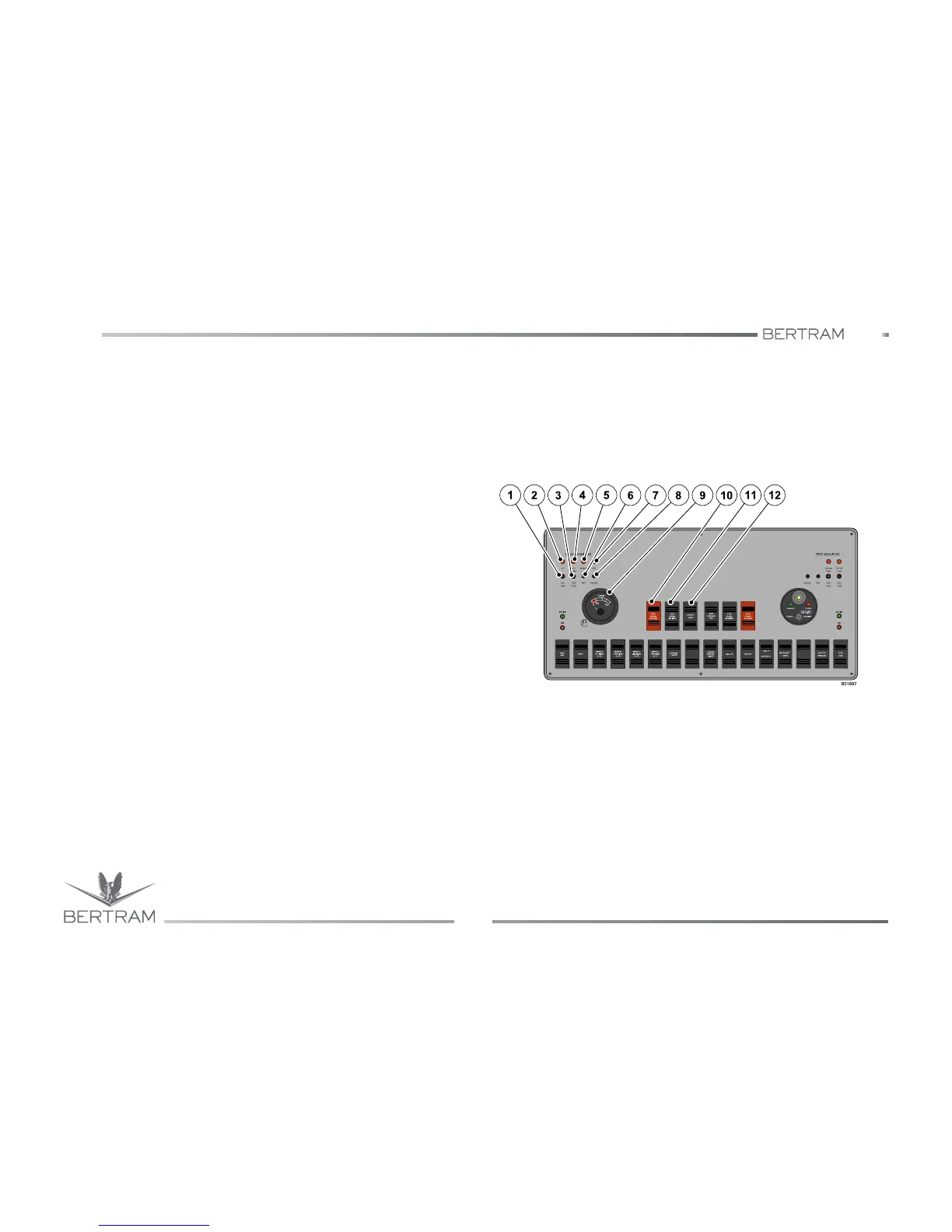

6.2.2 SECTION B - Port helm station console
1. Port engine exhaust warning lamp
This light indicates high temperature inside of port engine exhaust
ducts.
2. Stern bilge flooding alarm lamp
This light indicates the flood of the aft bilge.
3. Port generator light
This light indicates that the port generator is running.
4. Generator room bilge flood signal light
This light indicates the flood of the bilge in the generator room.
5. Engine room bilge alarm lamp
This lamp indicates the flooding of bilge in the engine room.
6. Test button to bilge flood signal
The test button is used to verify the correct operation of each signal
light of the panel. When using the test button, all LEDs must be ON
and buzzer must sound to indicate the correct operation of the bilge
signal system. When releasing the button all LEDs must go out and
the buzzer must clear off.
7. Bow bilge alarm lamp
This lamp indicates the flooding of the bow bilge.
8. Squelch button of bilge flood signal
This selector allows the deactivation of the bilge alarm.
9. Fuel level gauge
This gauge shows the fuel level in the tank.
10. Port engine STOP/START switch
This switch enables the start/stop of port engine.
11. Port ENGINE IGNITION switch
This switch allows to enable the start/stop of the port engine.
12. Low idle switch
This switch allows to decrease the yacht speed until this becomes
lower than the idle speed.
