ELECTRIC SYSTEM
Studio ti 03312 540-04usa
229

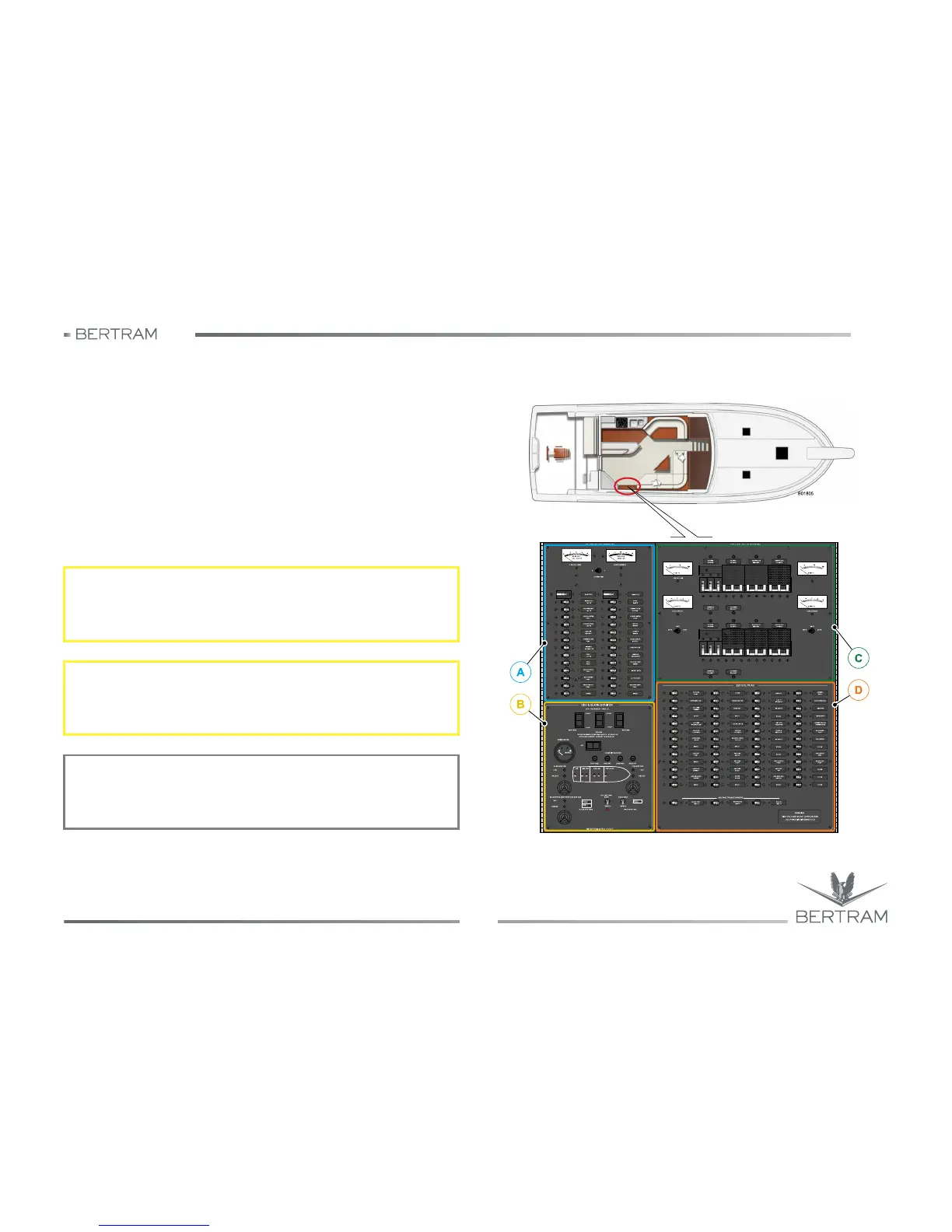

10.3 MAIN ELECTRIC PANEL
The electric system is monitored from the panel located in the salon
starboard. The following main sections have been identified, in order to
make the descriptions easier:
A. Voltmeters, ammeters for 24 V DC and circuit breakers protecting the
24 V DC users
B. Generator signal and control panel
C. Voltmeters, ammeters for 230 V AC networks, circuit breakers
protecting the 230 V AC networks, when these are powered by shore
network of by generator
D. Circuit breakers protecting the 230 V AC users
S
CAUTION
High voltage
Disconnect the electric power supply before opening the door.
S
CAUTION
Switch off the generator, the inverter and disconnect the shore outlets
before opening the panel.
NOTICES
The description of the electric panel is referred to the standard version
of the yacht.
