8.4 ENGINE CONTROL PANEL
The engine control panel is located in the engineroom at each engine
side.
Monitoring system
The monitoring system check following parameters:
− coolant temperature
− coolant level (if installed)
− oil pressure
− oil temperature
− high air pressure overfeeding temperature (if installed)
− fuel pressure
− fuel temperature

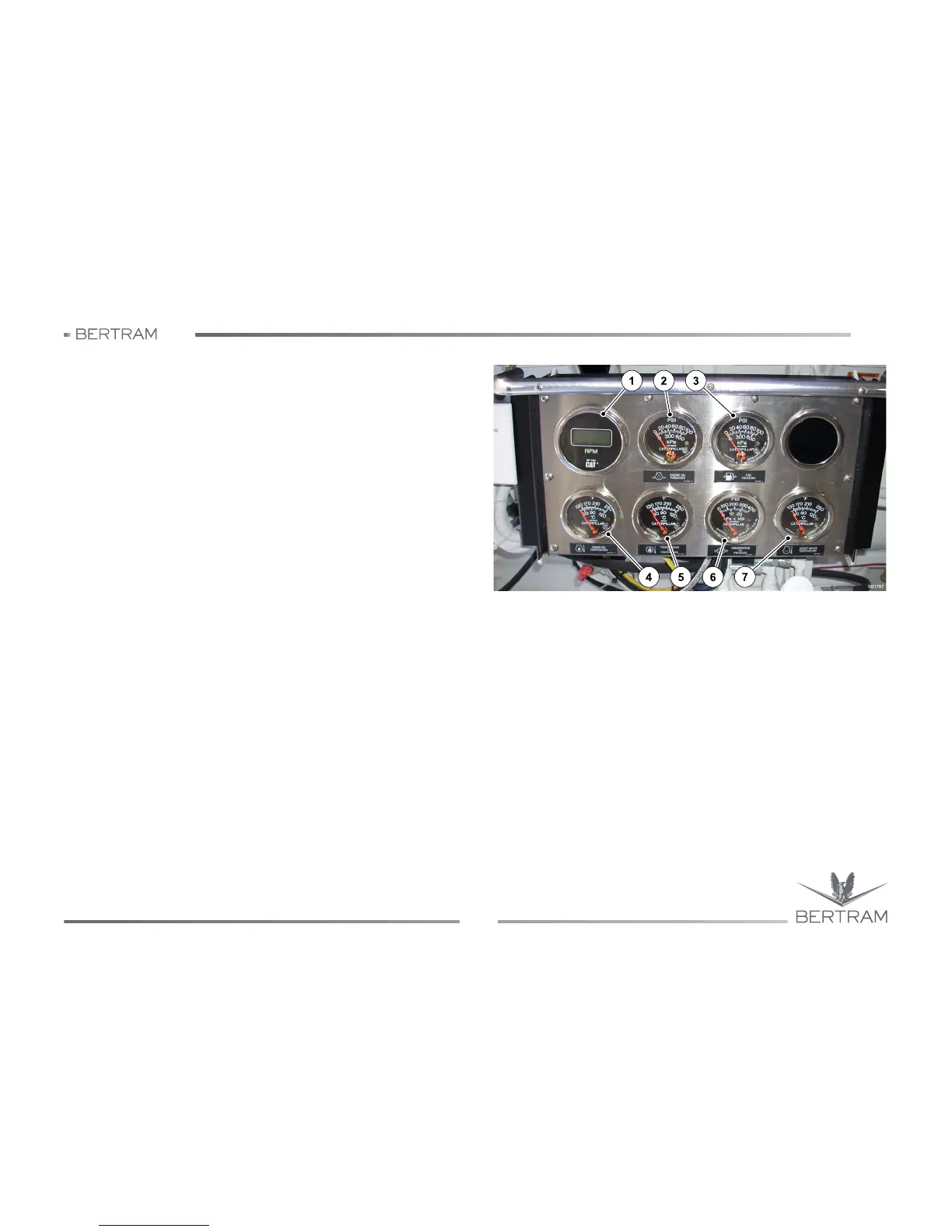

Engine monitoring panel
1. Engine rpm digital gauge
2. Engine oil pressure gauge
3. Fuel pressure gauge
4. Engine oil temperature gauge
5. Gearbox oil temperature gauge
6. Gearbox oil pressure gauge
7. Engine coolant temperature gauge
