540
CONTROL STATION
Studio ti 03312 540-04usa
96
6

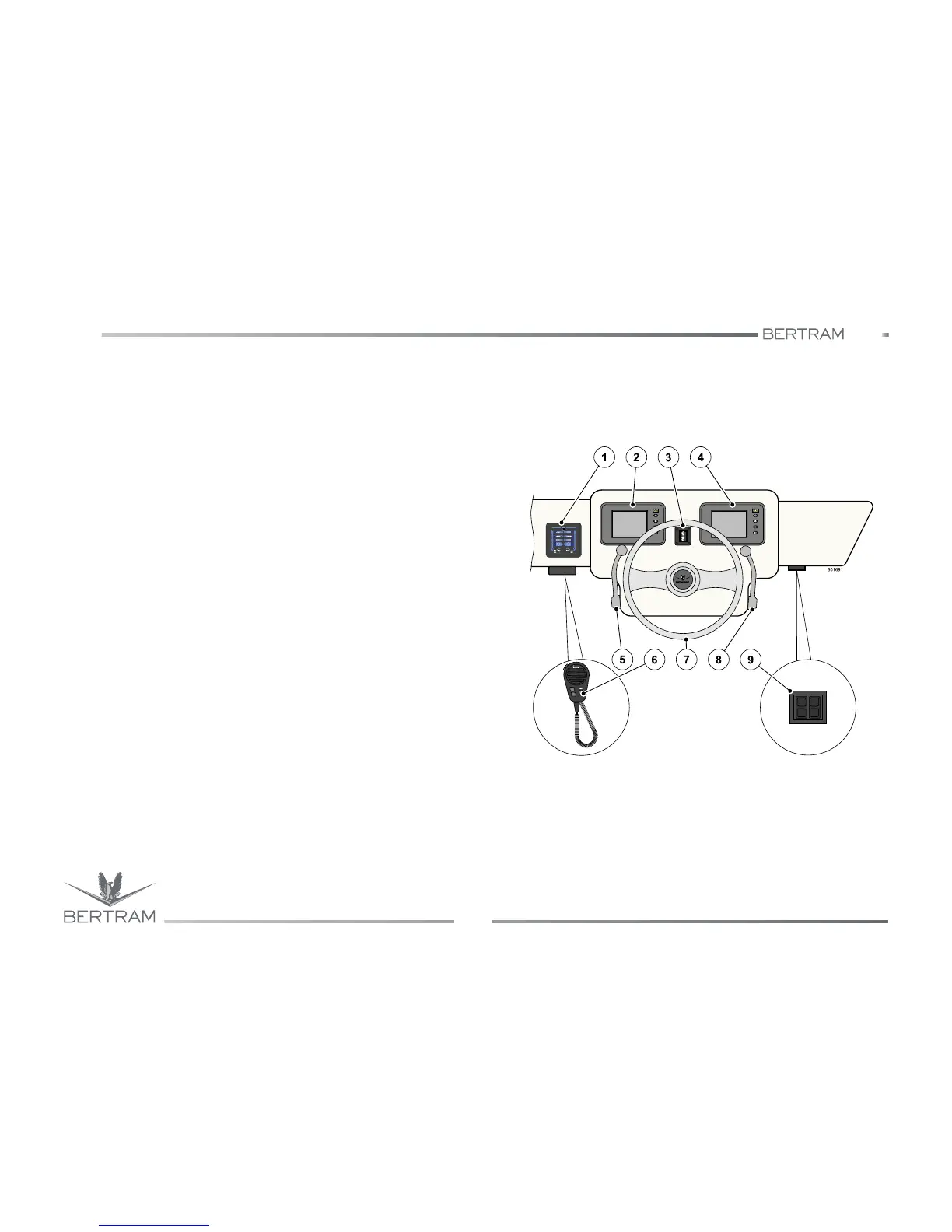

6.2.3 SECTION C - Control and maneuver heads
1. Control panel of gearboxes
This block monitors, by means of electric signals, the revolutions of
the propulsion engines and the speeds of the gearboxes.
2. Port engine control panel
This panel allows monitoring all operating parameters of the port
engine.
3. Anchor windlass switch
This switch allows the operation in both directions of the bow anchor
windlass.
4. Starboard engine control panel
This panel allows monitoring all operating parameters of the
starboard engine.
5. Starboard head (optional)
This head drives by means of an electric signal the revolutions of the
starboard engine and the gears of the starboard gearbox.
6. VHF-DSC microphone
VHF microphone with remote control function on channels and output
power.
7. Steering wheel
By turning the drive wheel you actuate an hydraulic pump that
operates the piston located in the helm gear compartment, this in turn
is connected to the rudder and allows to drive the yacht.
8. Port head (optional)
This head drives by means of an electric signal the port propulsion
engine revolutions and the port gearbox speeds.
9. Trim tabs control panel
This panel carries the switches for trim tabs activation.
