PROPULSION SYSTEMS
Studio ti 03312 540-04usa
165
8.11 LUBE OIL SYSTEM
8.11.1 Oil filling/draining system from engines, gearboxes
and generator

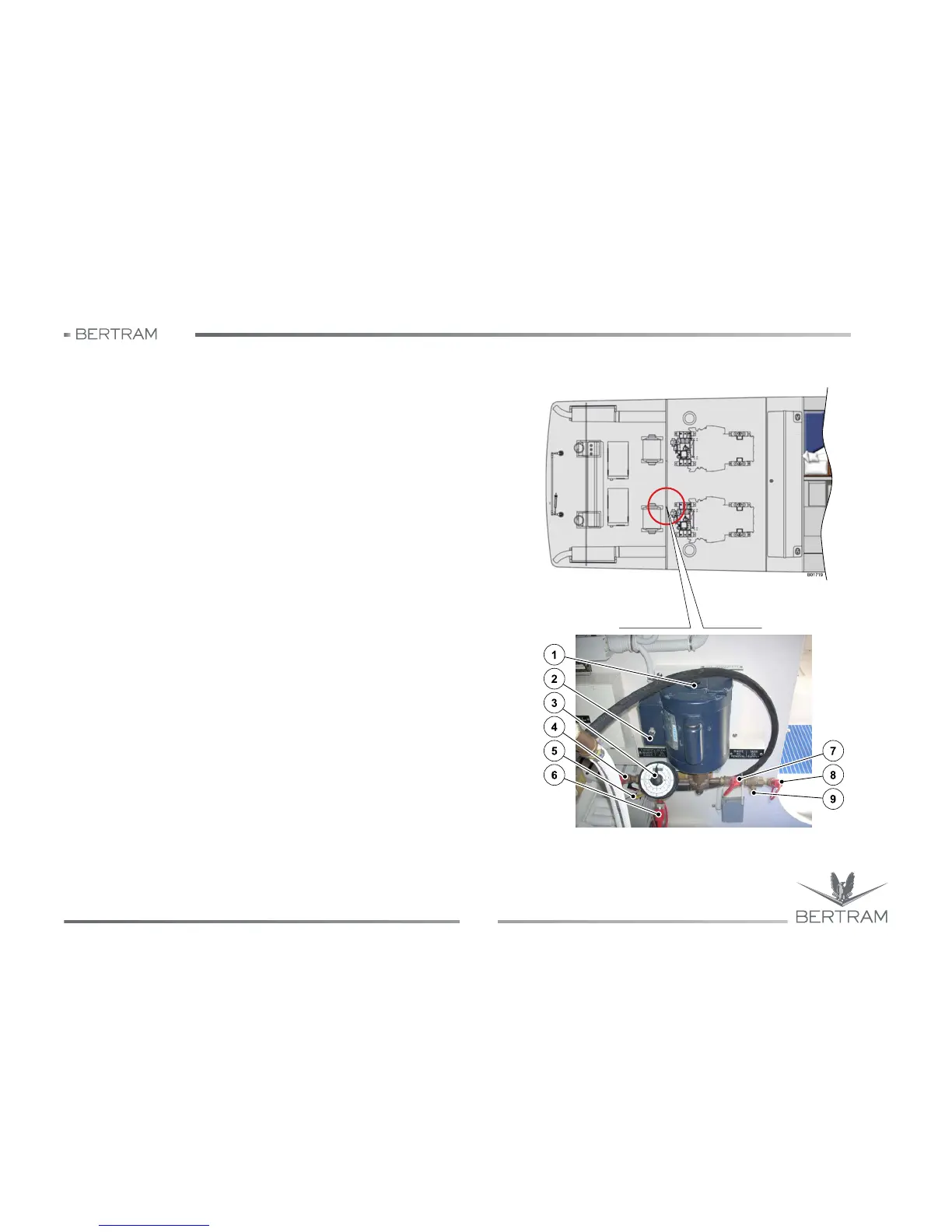

The system consists of a pump (1) duly connected to engines, gearboxes
and generator, by which it is possible to perform the shoreside lube oil
filling/draining operation, without having to carry onboard clean oil and
waste oil barrels.
For correct maintenance procedures, refer to the Manufacturer’s manual.
1. Pump
2. Oil pump activation/deactivation circuit breaker
3. Oil level gauge
4. Cockpit waste discharge connection
5. Oil filling/draining lever
6. Clean oil fill connection
7. Waste oil removal connection
8. Tank oil supply connection
9. Oil filling/draining lever
