9.10 GRAY WATER SYSTEM
The water drained by showers, bidets and
washbasins is collected into a gray water tank
located in the bilge under the stateroom area.
This tank has a pump and automatic float switch.
The pump, while operating in automatic mode,
discharges the shower and sink water overboard
and is powered by the gray water pump
differential circuit breaker.
The galley sink and dishwasher drain directly
overboard.
On the electrical panel of the salon you can
monitor the status of the gray waters tank.
When the liquid level of the gray water tank
reaches a nearly full condition, an indicator light
will come on and an alarm will sound. A
momentary push button switch is provided to
manually override the automatic operating
function.
i
ENVIRONMENT
Do not discharge soaped waters drained by
washing machines and dishwashers in the
harbor, inside marinas or near beaches,
because of the large amount of foam produced.

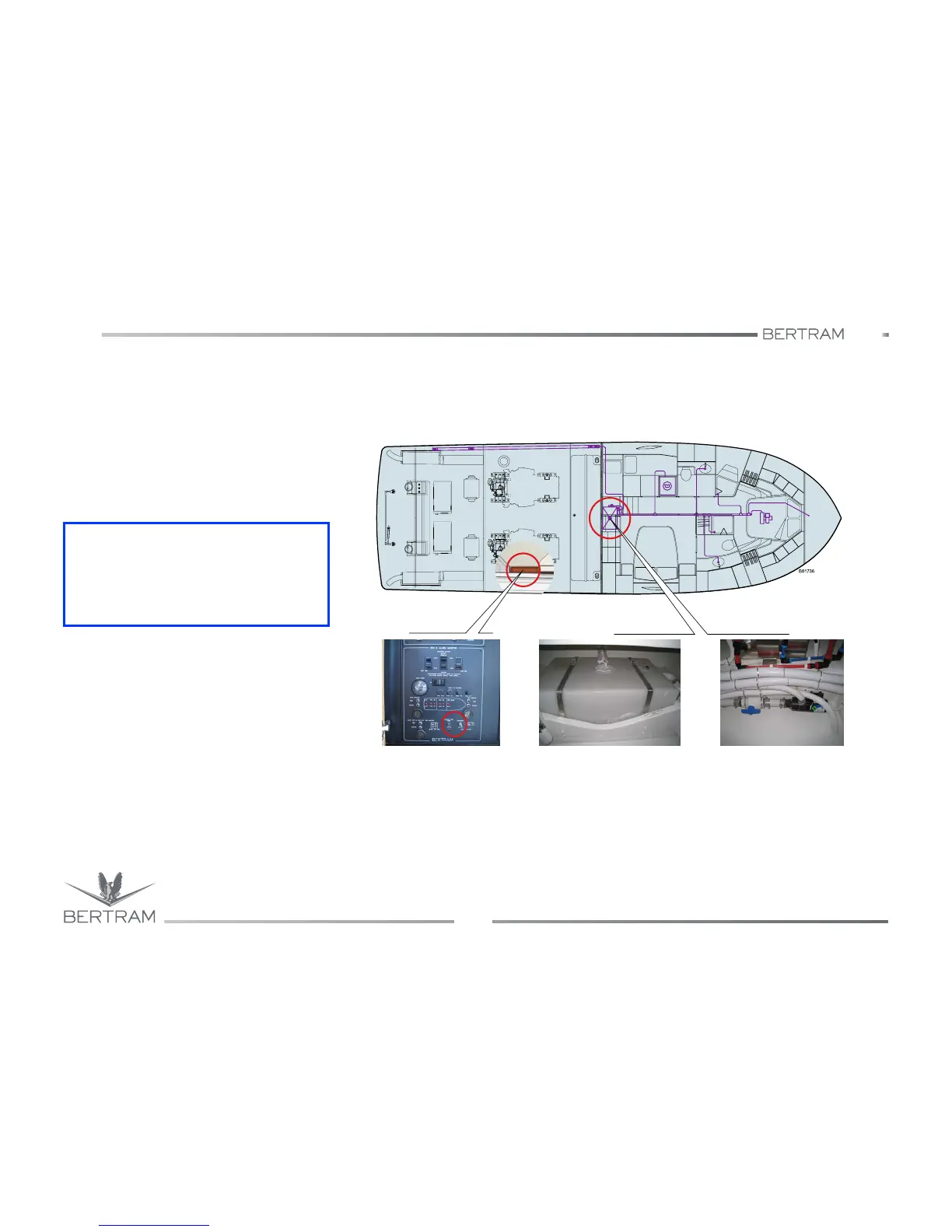

Grey water tank Grey water pumpElectric panel
