ELECTRIC SYSTEM
Studio ti 03312 540-04usa
231

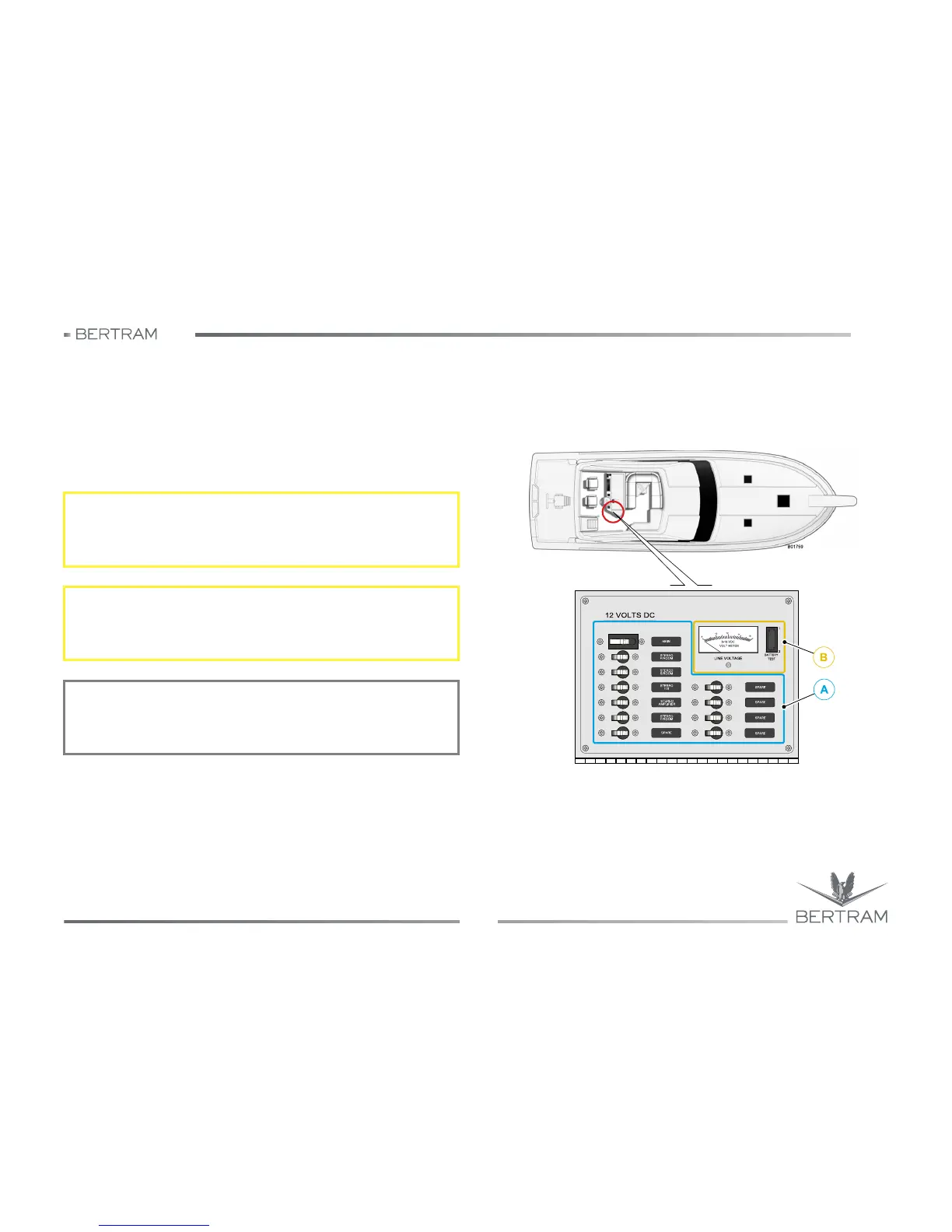

10.5 12 V DC USER FLYBRIDGE ELECTRIC PANEL
On the flybridge in front of the 24 V users electric panel is installed a
further electric panel equipped with circuit breakers protecting the 12 V
DC users.
A. Circuit breakers protecting the 12 V DC users
B. Voltmeter for 12 V DC batteries
S
CAUTION
High voltage
Disconnect the electric power supply before opening the door.
S
CAUTION
Switch off the generator, the inverter and disconnect the shore outlets
before opening the panel.
NOTICES
The description of the electric panel is referred to the standard version
of the yacht.
