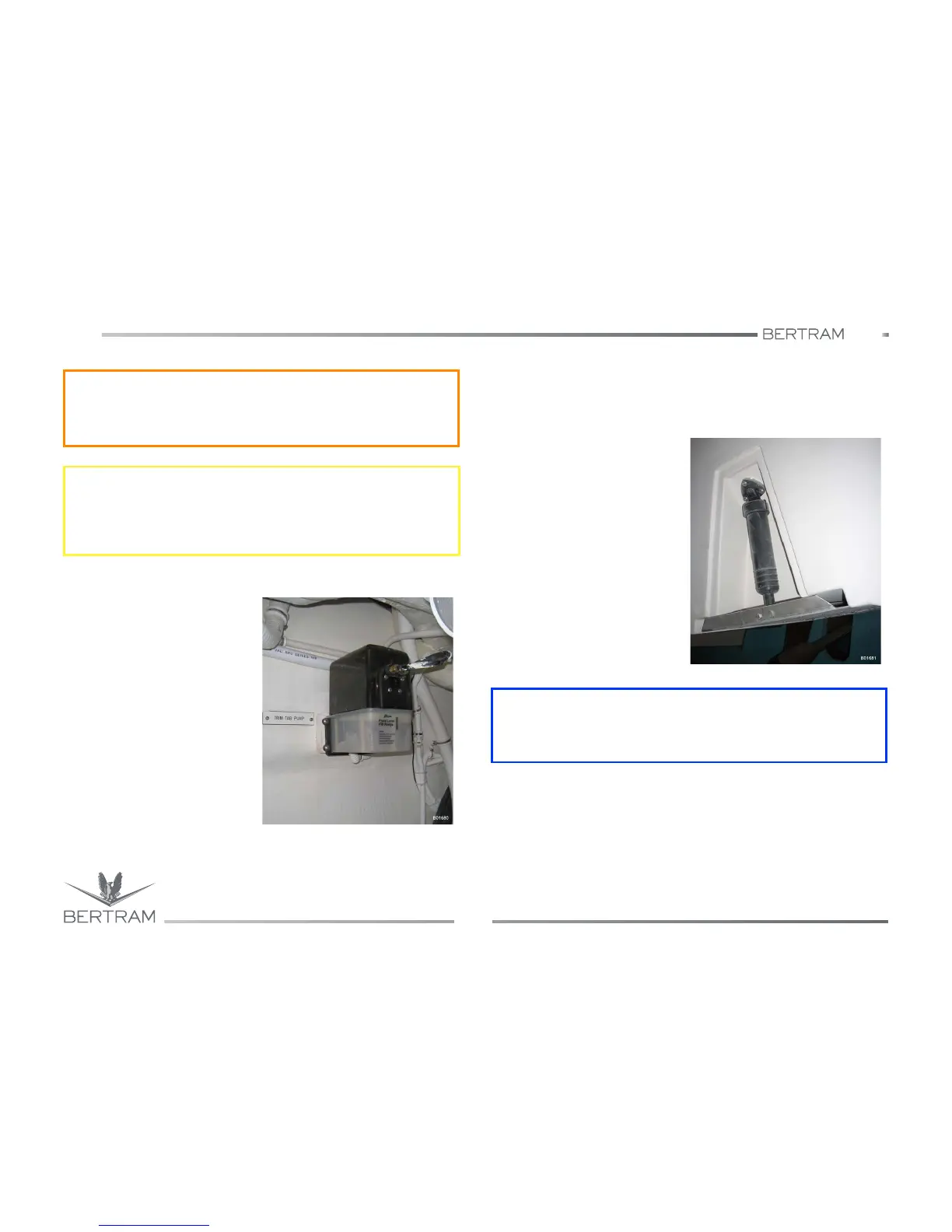

5.4.4 Trim tabs oil level check
Prior to getting underway, check the
oil level visually inside of the power
unit tank.
5.4.5 Trim tab oil change
To replace the oil is necessary remove cover. Remove the fitting plug, top
up with oil as suggested by Manufacturer and lubricate the rubber gasket.
5.4.6 Hydraulic Cylinder
To prevent the cylinder rods from
acquiring barnacles that may
damage the gaskets, keep the trim
tabs control button on UP when not
using the trim tabs. Periodically
check the scraping ring on the rods
for cracks and oil leaks.
j
WARNING
Pay particular attention when using the trim tabs during fishing
operations.
S
CAUTION
A good practice when navigating is that of making sure that all
passengers are sitting down, before carrying out any maneuver when
operating the trim tabs, particularly when navigating at high speed.
i
ENVIRONMENT
Collect and dispose of waste oil according to safe environmental
practices. Use an approved toxic material disposal facility.
