ELECTRIC SYSTEM
Studio ti 03312 540-04usa
232
10

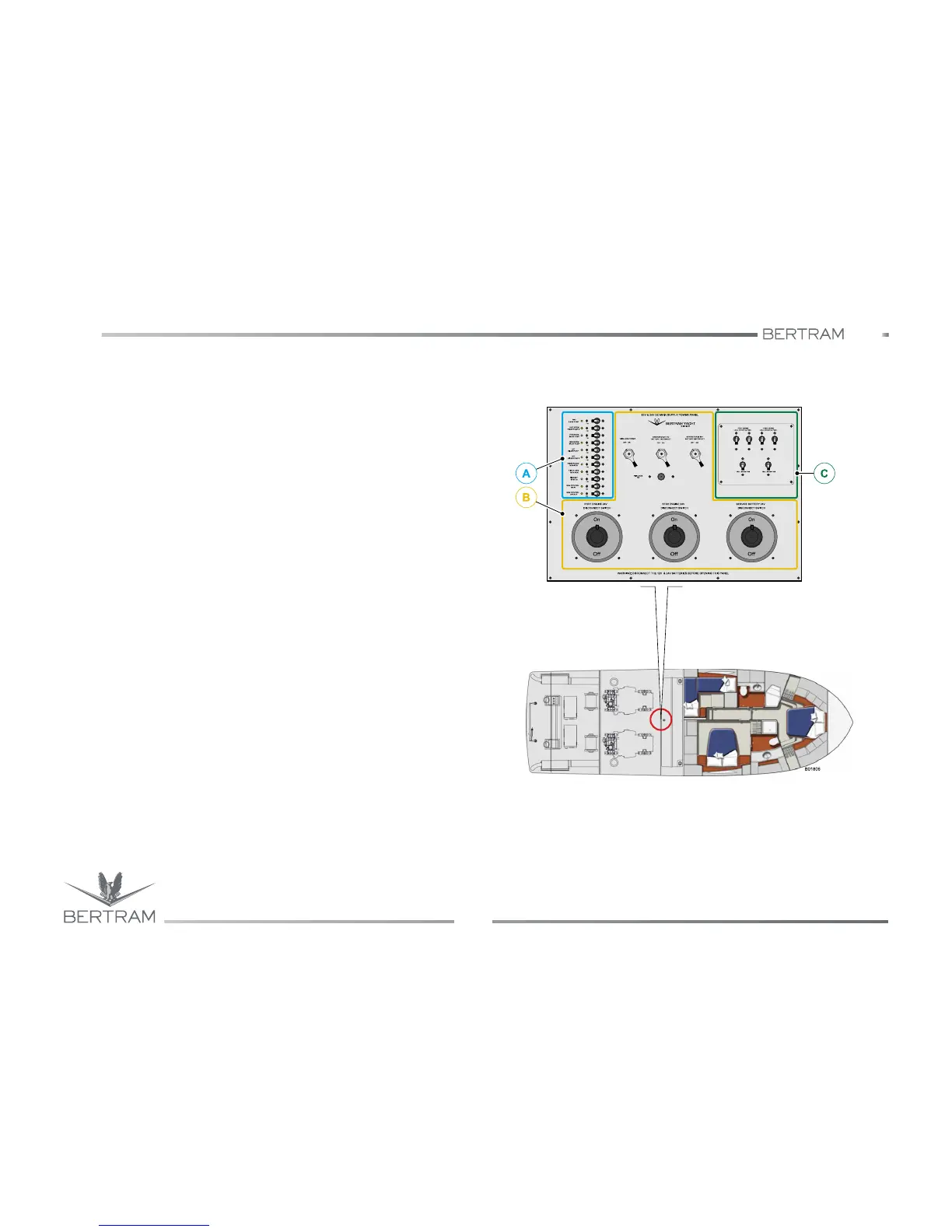

10.6 12 V /24 V DC BATTERY DISCONNECTOR PANEL
In the engineroom is located an electric panel equipped with circuit
breakers and battery disconnectors.
The following main sections have been identified, in order to make the
descriptions easier:
A. Circuit breakers for bilge pumps and firefighting system
B. 12 V/24 V DC battery disconnectors
C. Circuit breakers for engine control
