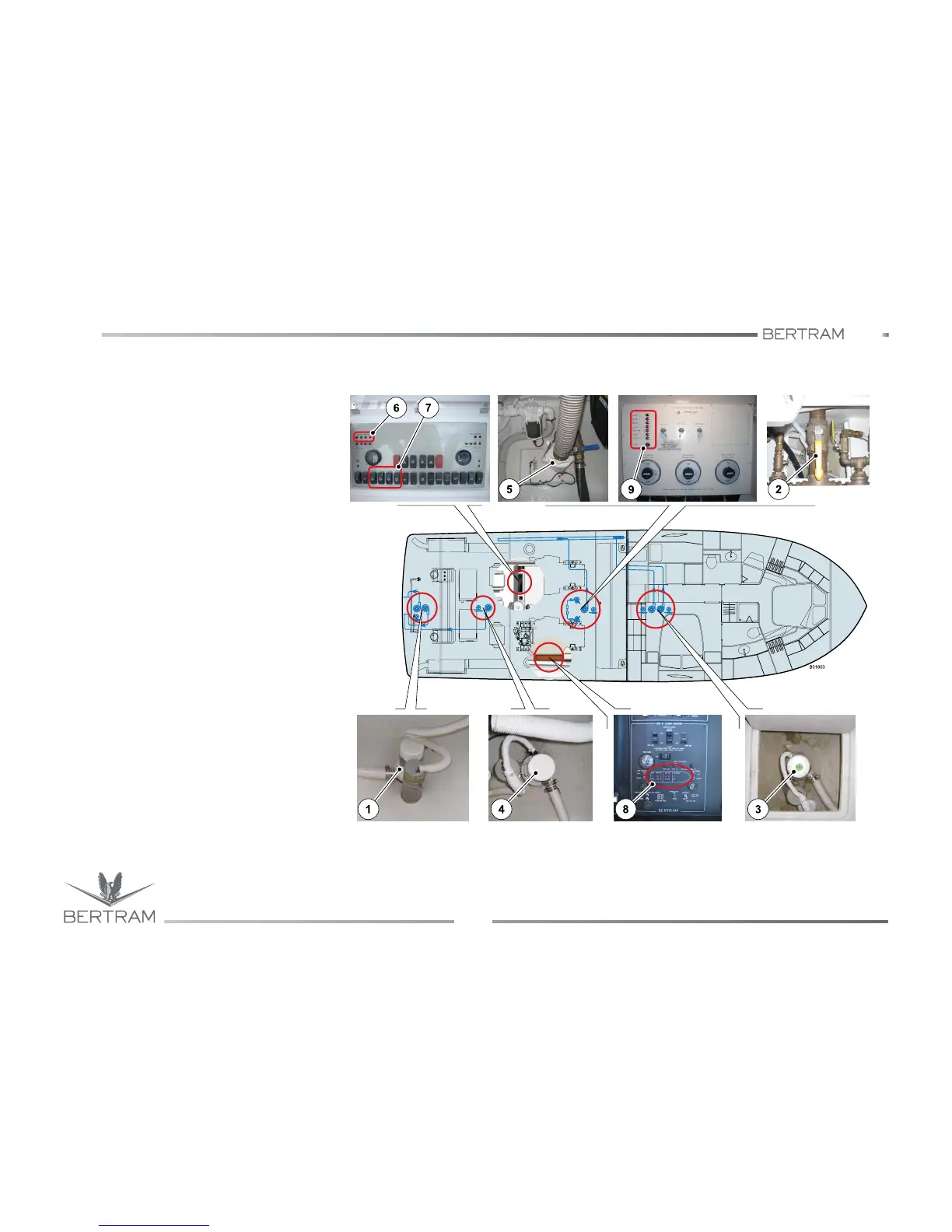

9.1.2 Bilge automatic/manual suction
system displacement
1. Aft bilge pumps
2. Engineroom bilge pump
3. Fore bilge pumps
4. Generator area bilge pump
5. Engines thru-hull fittings
6. Helm station bilge pump signal lights
7. Helm station bilge pump controls
8. Bilge pump signal lights on the main electric
panel in the salon
9. Circuit breakers on the electric panel of the
engineroom
Aft bilge pump
Engines thru-hull
fittings
Generator room
bilge pump
Fore bilge pump
E
ng
i
neroom
bil
ge
pump
Engineroom electric
panel
Salon electric panel
Helm station controls
