540
PROPULSION SYSTEMS
Studio ti 03312 540-04usa
170
8

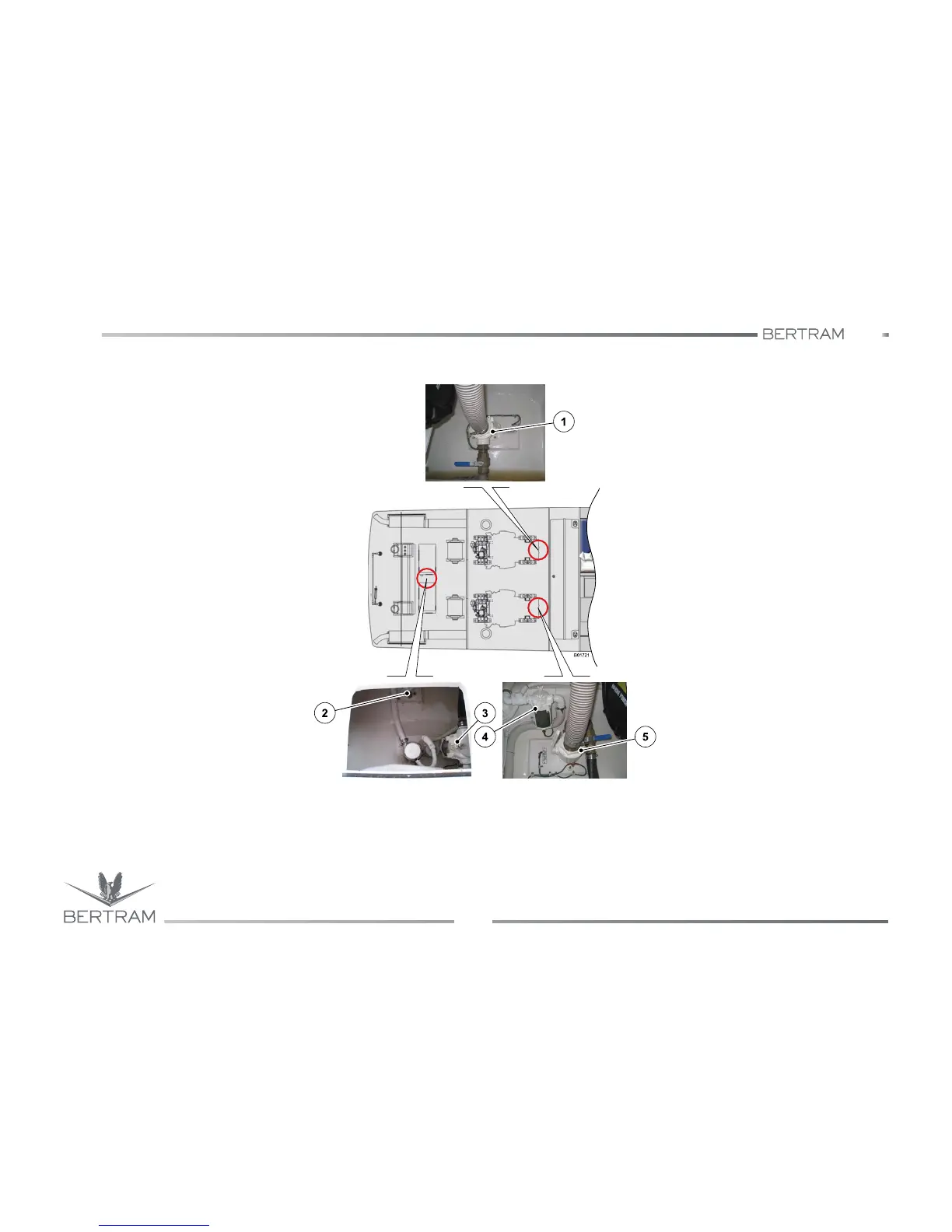

1. Port engine sea cock valve
2. Generator intake seacock valve
3. Generator intake seacock filter
4. Starboard engine intake seacock filter
5. Starboard engine sea cock valve
Port engine sea cock valve
Generator intake
seacock valve and filter
Starboard engine filter
and sea cock valve
