Bertram 540 - Page 350

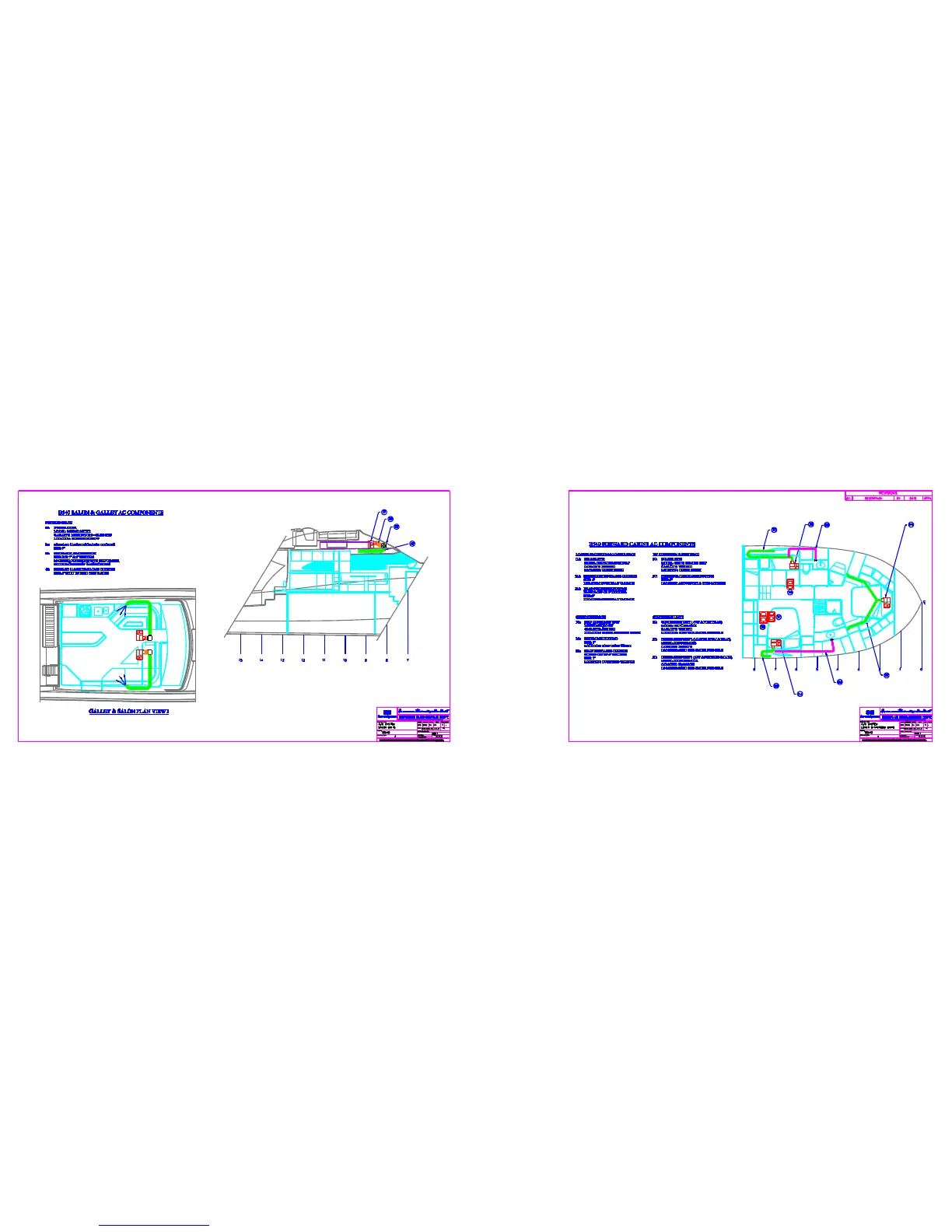

GALLEY & SALON PLAN VIEW I
4F: FORWARD SALON DISCHARGE DUCTING
SIZE: 5" SPLIT TO FEED PORT & STBD
3F: DISCHARGE JUNCTION BOX
SIZE: FOR 7" & 5" DUCTING
LOCATION: FLYBRIDGE WITH EVAPORATOR
RETURN: CENTER OF SALON CEILING
4F
3F
2F
1F
15 14 13 12 11 10 9 8 7
B540 SALON & GALLEY AC COMPONENTS
2F: FORWARD SALON DISCHARGE DUCTING
SIZE: 7"
1F: EVAPORATORS
MODEL: REU16C 16K X 2
CAPACITY: 16,000 BTU X 2 = 32,000 BTU
LOCATION: FLYBRIDGE BROW
FORWARD SALON
3C: CONDENSING UNIT 3 (AFT & FORWARD SALON)
MODEL: RX30C REMOTE
CAPACITY: 30,000 BTU
LOCATION: STBD SIDE UNDER FWD SOLE
2C: CONDENSING UNIT 2 (MASTER STRM & HEAD)
MODEL: RX7C REMOTE
CAPACITY: 7000 BTU
LOCATION: STBD SIDE UNDER FWD SOLE
CONDENSING UNITS
1C: CONDENSING UNIT 1 (VIP & PORT HEAD)
MODEL: RX7C REMOTE
CAPACITY: 7000 BTU
LOCATION: PORT SIDE UNDER FWD SOLE
3M
2M
1M
3M: HEAD DISCHARGE DUCTING
BLEEDS OFF OF 5" DUCTING.
SIZE: 3"
LOCATION: OVERHEAD VALENCE
2M: STATEROOM DISCHARGE DUCTING
SIZE: 5"
LOCATION: OVERHEAD VALENCE
1M: EVAPORATOR
MODEL: REU7C REMOTE EVAP
CAPACITY: 7000 BTU
LOCATION: UNDER BERTH
MASTER STATEROOM & MASTER HEAD
3C
2C
1C
3G
2V
VIP STATEROOM & PORT HEAD
1V: EVAPORATOR
MODEL: REU7C REMOTE EVAP
CAPACITY: 7000 BTU
LOCATION: UNDER BERTH
2V: STATEROOM DISCHARGE DUCTING
SIZE: 5"
LOCATION: ABOVE PORT & STBD LOCKERS
2G
3G: HEAD DISCHARGE DUCTING
BLEEDS OFF OF 5" DUCTING
SIZE: 5"
LOCATIONl OVERHEAD VALENCE
2G: DISCHARGE DUCTING
SIZE: 5"
LOCATION: PORT LIGHT SOFFIT
1G
1G: SELF CONTAINED UNIT
MODEL: STQ8C-HV
CAPACITY: 8000 BTU
LOCATION: UNDER FORWARD BERTH
GUEST STATEROOM
B540 FORWARD CABINS AC COMPONENTS
