Bertram 540 - Page 356

APPV. DATE BY DESCRIPTION LET.
REVISIONS

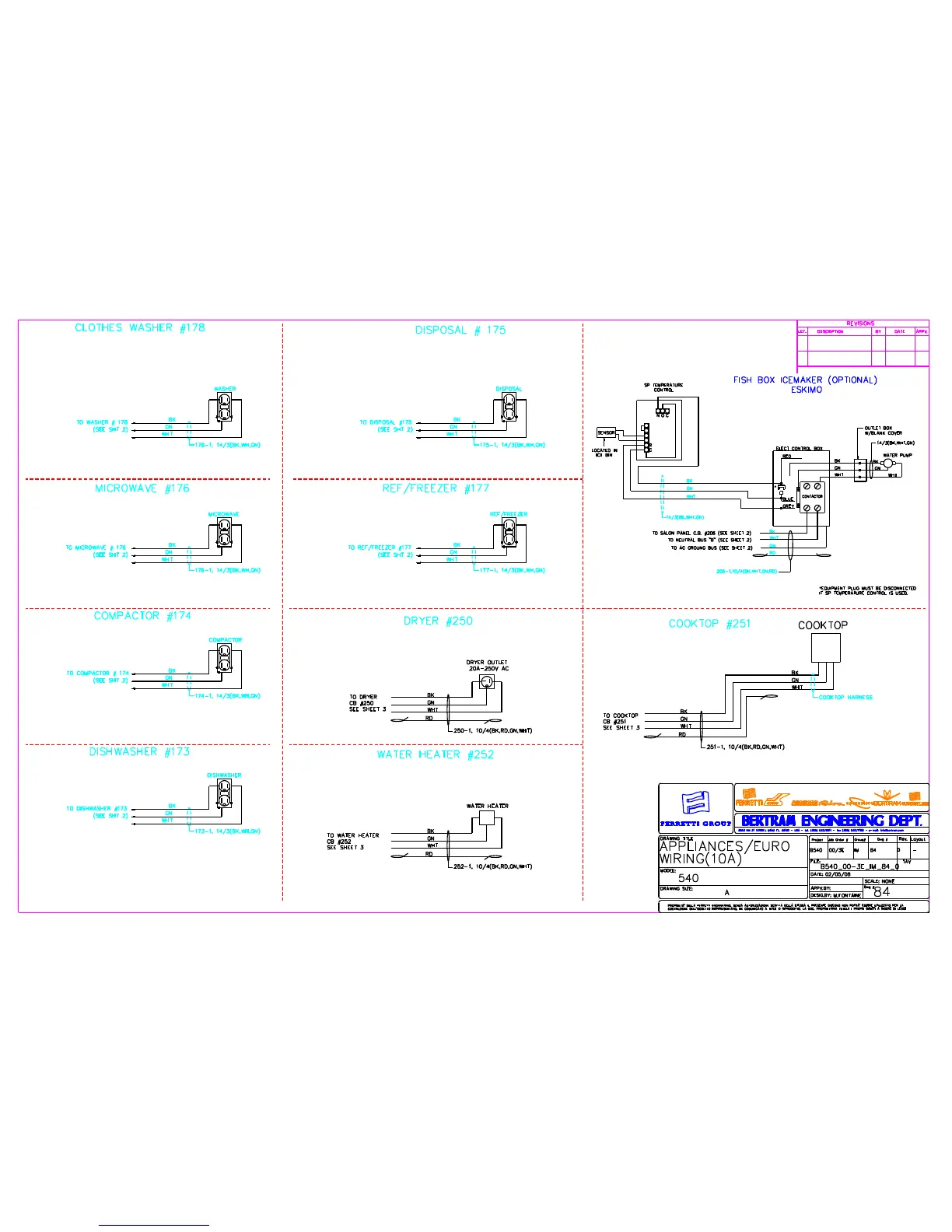

178-1, 14/3(BK,WH,GN)
(SEE SHT 2)
TO WASHER # 178
WHT
GN
BK
WASHER
TO MICROWAVE # 176
(SEE SHT 2)
WHT
GN
BK
176-1, 14/3(BK,WH,GN)
MICROWAVE
TO COMPACTOR # 174
(SEE SHT 2)
BK
WHT
GN
174-1, 14/3(BK,WH,GN)
COMPACTOR
TO DISHWASHER #173
(SEE SHT 2)
GN
WHT
BK
173-1, 14/3(BK,WH,GN)
DISHWASHER
CLOTHES WASHER #178
MICROWAVE #176
COMPACTOR #174
DISHWASHER #173
TO DISPOSAL #175
(SEE SHT 2)
WHT
GN
BK
175-1, 14/3(BK,WH,GN)
DISPOSAL
TO REF/FREEZER #177
(SEE SHT 2)
BK
WHT
GN
177-1, 14/3(BK,WH,GN)
REF/FREEZER
DISPOSAL # 175
REF/FREEZER #177
250-1, 10/4(BK,RD,GN,WHT)
DRYER OUTLET
SEE SHEET 3
RD
WHT
TO DRYER
CB #250
BK
GN
20A-250V AC
DRYER #250
WATER HEATER
252-1, 10/4(BK,RD,GN,WHT)
RD
GN
WHT
BK
WATER HEATER #252
SEE SHEET 3
CB #252
TO WATER HEATER
COOKTOP #251
251-1, 10/4(BK,RD,GN,WHT)
COOKTOP
TO COOKTOP
SEE SHEET 3
CB #251
WHT
RD
GN
BK
COOKTOP HARNESS
BK
GN
WHT
OUTLET BOX
W/BLANK COVER
BK
WHT
GN
BK
GN
WHT
+
CONTACTOR
+
BK
*
GN
WHT
ELECT CONTROL BOX
BLUE
GREY
RED
14/3(BK,WHT,GN)
WATER PUMP
*EQUIPMENT PLUG MUST BE DISCONNECTED
IF SP TEMPERATURE CONTROL IS USED.
BK
WHT
GN
RD
C
R
14/3(BK,WHT,GN)
TO SALON PANEL C.B. #206 (SEE SHEET 2)
TO AC GROUNG BUS (SEE SHEET 2)
ESKIMO
FISH BOX ICEMAKER (OPTIONAL)
206-1,10/4(BK,WHT,GN,RD)
N O C
SENSOR
LOCATED IN
ICE BIN
SP TEMPERATURE
CONTROL
TO NEUTRAL BUS "B" (SEE SHEET 2)
Group#
Job Order #
DESIG.BY:
FILE:
DATE:
APPV.BY:
Project
SCALE:
Dwg #
Layout
Dwg #
NONE
Rev.
DRAWING TITLE
MODEL:
DRAWING SIZE:
3663 NW 21 STREET, MIAMI FL. 33142 - USA - tel. (305) 633/8011 - fax (305) 633/7188 - e-mail: info@bertram.com
PROPRIETA’ DELLA FERRETTI ENGINEERING. SENZA AUTORIZZAZIONE SCRITTA DELLA STESSA IL PRESENTE DISEGNO NON POTRA’ ESSERE UTILIZZATO PER LA
COSTRUZIONE DELL’OGGETTO RAPPRESENTATO, NE COMUNICATO A TERZI O RIPRODOTTO. LA SOC. PROPRIETARIA TUTELA I PROPRI DIRITTI A RIGORE DI LEGGE
0
B540_00-3E_IM_84_0
- 84 IM 00/3E B540
M.FONTAINE
84
02/05/08
TAV
APPLIANCES/EURO
540
A
WIRING(10A)
