Bertram 540 - Page 359

Group#
Job Order #
DESIG.BY:
FILE:
DATE:
APPV.BY:
Project
SCALE:
Dwg #
Layout
Dwg #
NONE
Rev.
DRAWING TITLE
MODEL:
DRAWING SIZE:
3663 NW 21 STREET, MIAMI FL. 33142 - USA - tel. (305) 633/8011 - fax (305) 633/7188 - e-mail: info@bertram.com
PROPRIETA’ DELLA FERRETTI ENGINEERING. SENZA AUTORIZZAZIONE SCRITTA DELLA STESSA IL PRESENTE DISEGNO NON POTRA’ ESSERE UTILIZZATO PER LA
COSTRUZIONE DELL’OGGETTO RAPPRESENTATO, NE COMUNICATO A TERZI O RIPRODOTTO. LA SOC. PROPRIETARIA TUTELA I PROPRI DIRITTI A RIGORE DI LEGGE
0
B540_00-3E_IM_85_0
- 85 IM 00/3E B540
M.FONTAINE
85
02-05-08
TAV
INVERTER/EURO
540
A

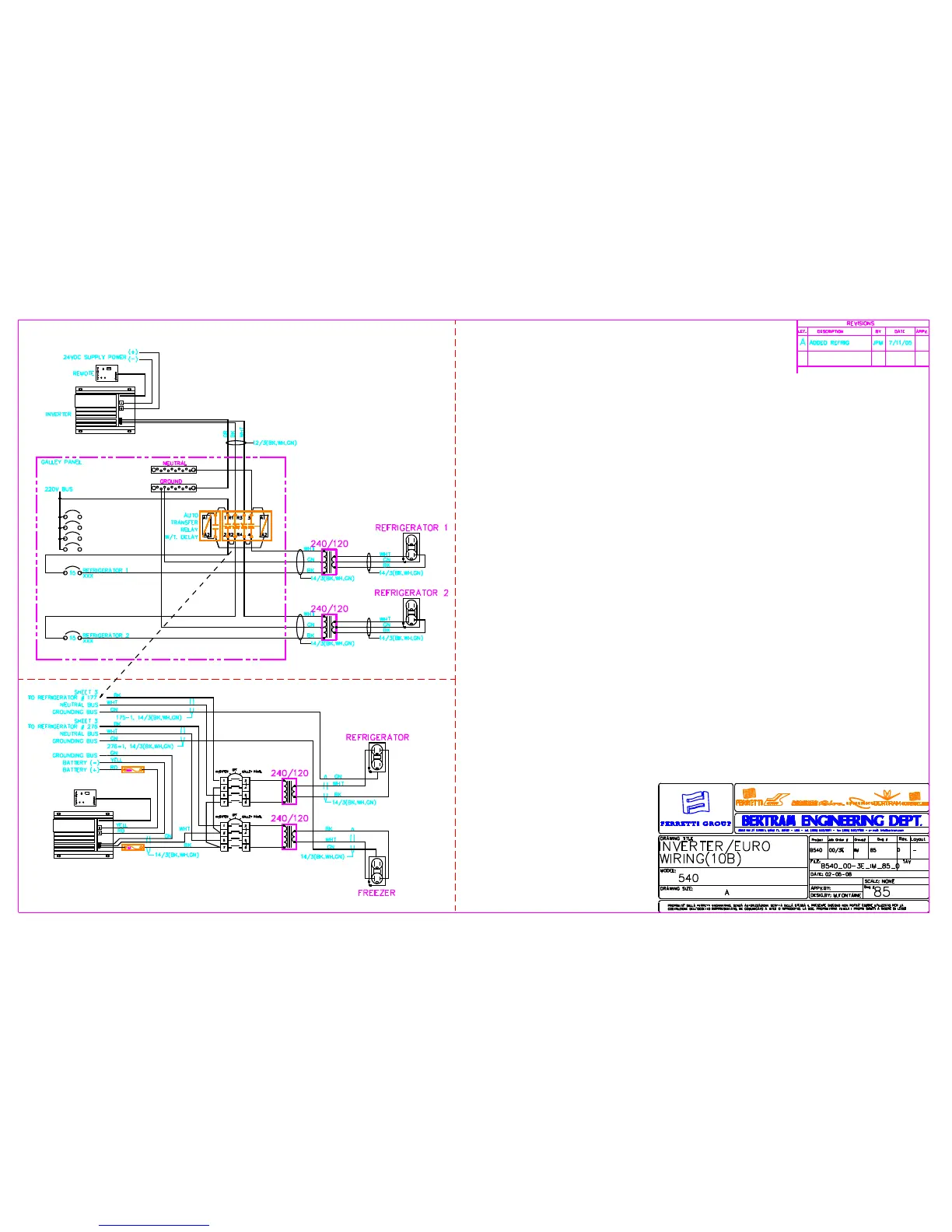

WIRING(10B)
7/11/05 JPM ADDED REFRIGADDED REFRIG
A
15
XXX
REFRIGERATOR 2
WHT
GN
BK
GN
BK
WHT
14/3(BK,WH,GN)
REFRIGERATOR 2
240/120
14/3(BK,WH,GN)
220V BUS
W/T. DELAY
BK
GN
WHT
14/3(BK,WH,GN)
240/120
RELAY
TRANSFER
AUTO
INVERTER
12/3(BK,WH,GN)
WHT GR
GALLEY PANEL
REMOTE
(-)
(+)
24VDC SUPPLY POWER
GROUND
NEUTRAL
BK
INVERTER CONTROL
MASTERVOLT
ON
REFRIGERATOR 1
XXX
15
REFRIGERATOR 1
14/3(BK,WH,GN)
WHT
BK
GN
A1
A2
3
4 R4
R3R1
R2 2
1
A2
A1
GN
WHT
BK
14/3(BK,WH,GN)
GN
BK
WHT
14/3(BK,WH,GN)
GN
WHT
BK
14/3(BK,WH,GN)
RD
YELL
RD
YELL
GN
BATTERY (-)
BATTERY (+)
GROUNDING BUS
276-1, 14/3(BK,WH,GN)
WHT
GN
BK
TO REFRIGERATOR # 276
SHEET 3
GROUNDING BUS
NEUTRAL BUS
NEUTRAL BUS
175-1, 14/3(BK,WH,GN)
BK
GN
WHT
GROUNDING BUS
SHEET 3
TO REFRIGERATOR # 177
FREEZER
REFRIGERATOR
15A
200A
OFF
GALLEY PANEL INVERTER
1
3
2
4
65
87
240/120
GR
N
L1
INVERTER CONTROL
MASTERVOLT
ON
240/120
7 8
5 6
4
2
3
1
INVERTER GALLEY PANEL
OFF
APPV. DATE BY DESCRIPTION LET.
REVISIONS
