AUXILIARY EQUIPMENT ON BOARD
Studio ti 03312 540-04usa
78
5
−

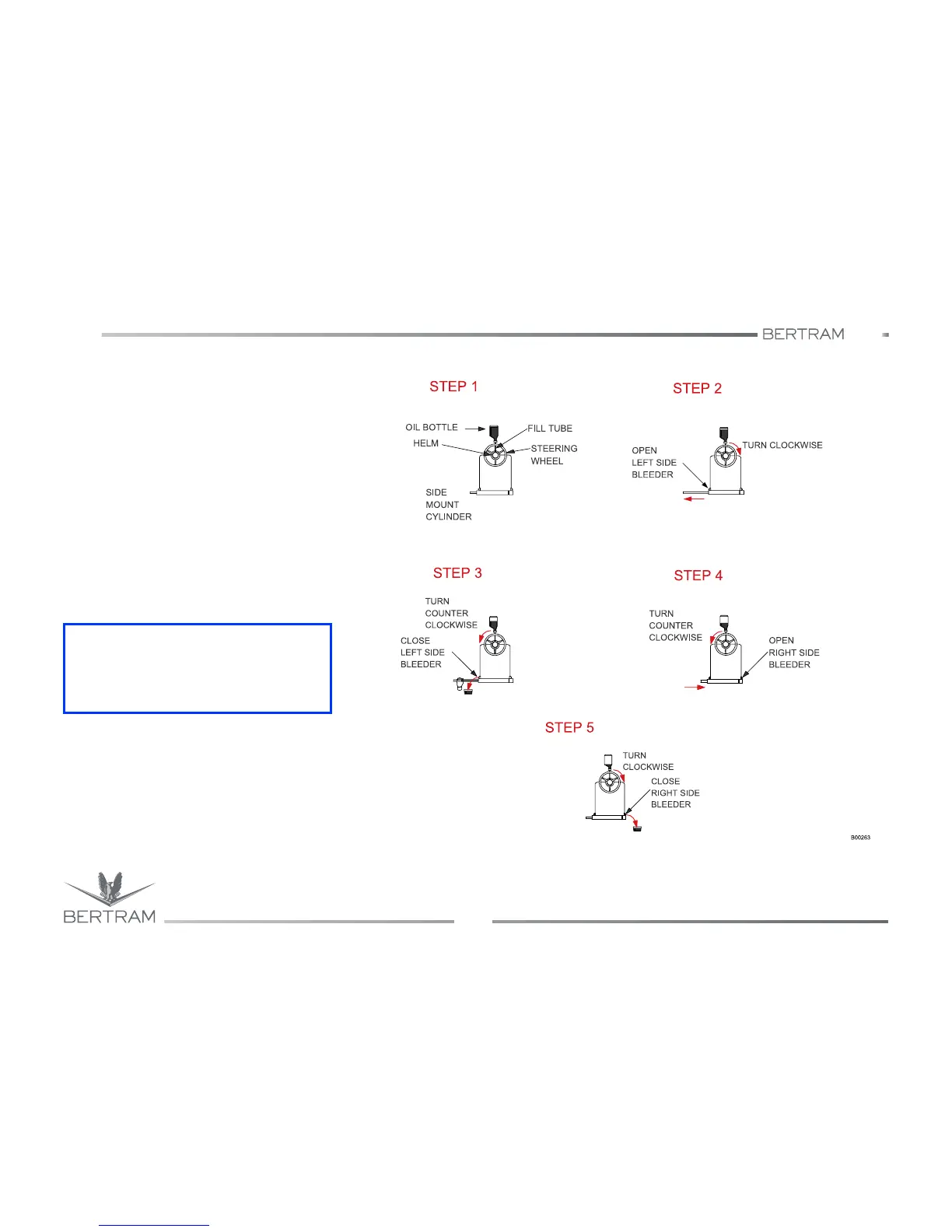

Step 4
Continue turning the steering wheel
counterclockwise until the cylinder rod is fully
extended to the right. (Steering wheel will
come to a stop). Open the right bleeder.
−
Step 5
Holding the cylinder rod to prevent it from
moving back into the cylinder, turn the
steering wheel clockwise until a steady
stream of air-free oil comes out of bleeder.
Use only your hands to restrain the cylinder
rod. While continuing to turn the wheel, close
the right side bleeder and let go of the
cylinder rod. Fill and purge is now complete.
For more information, consult the manufacturer’s
manual.
i
ENVIRONMENT
Hydraulic oil is toxic. Dispose of old oil and oily
waste materials only in an approved toxic
materials disposal facility.
